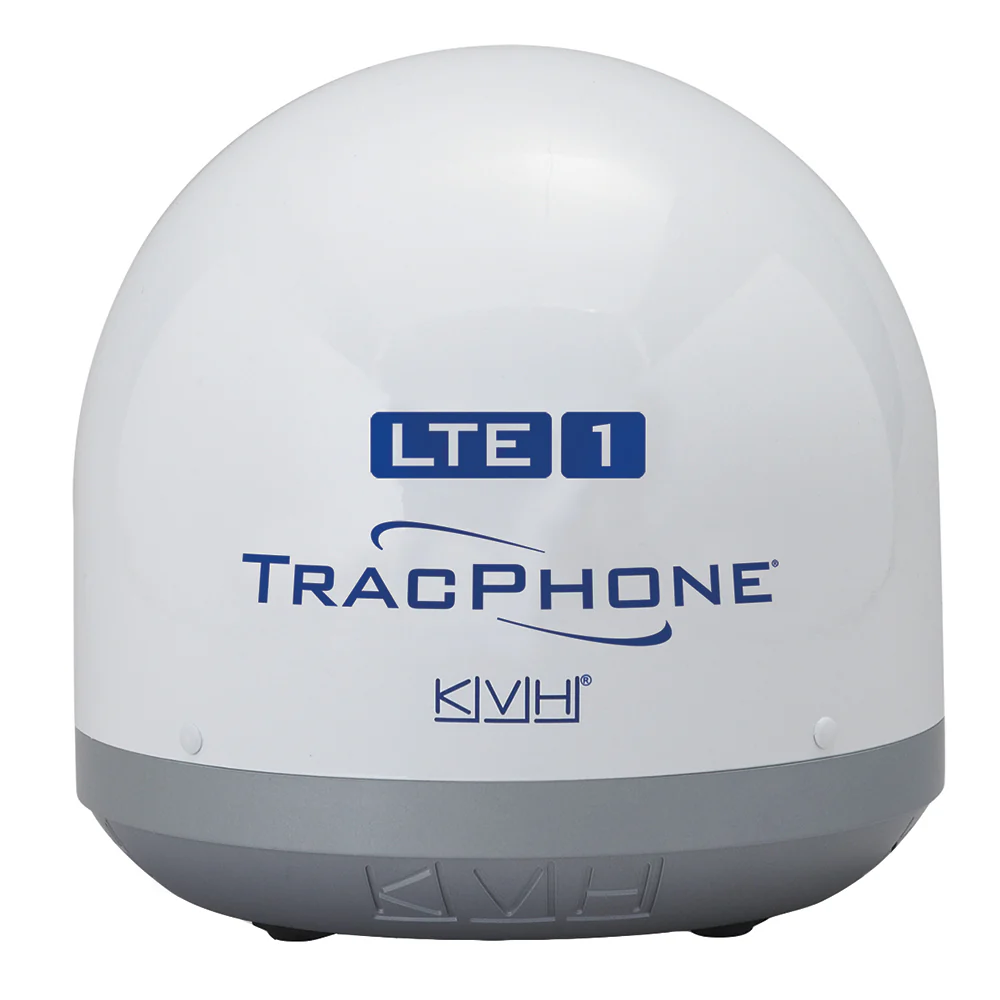

KVH TracPhone LTE-1 Global [01-0419-01]
TracPhone® LTE-1 Global, powered by LTE-Advanced (LTE-A) network technology, is an ultra-compact, marine-grade system that delivers blazing-fast connectivity around the world. It's faster than 4G LTE and includes a high-gain, dual antenna array, modem, GPS, and Wi-Fi router in the dome—everything you need to head offshore to enjoy streaming video and music; Wi-Fi calling, browsing the web, checking email, and social media, and more.
TracPhone® LTE-1 Global offers:
- More speed: Enjoy streaming fast onboard connections with no throttling thanks to integrated LTE-A enhanced technology
- More range: High-gain, dual LTE-A antenna array means a stronger signal with service up to twice as far offshore as your cell phone

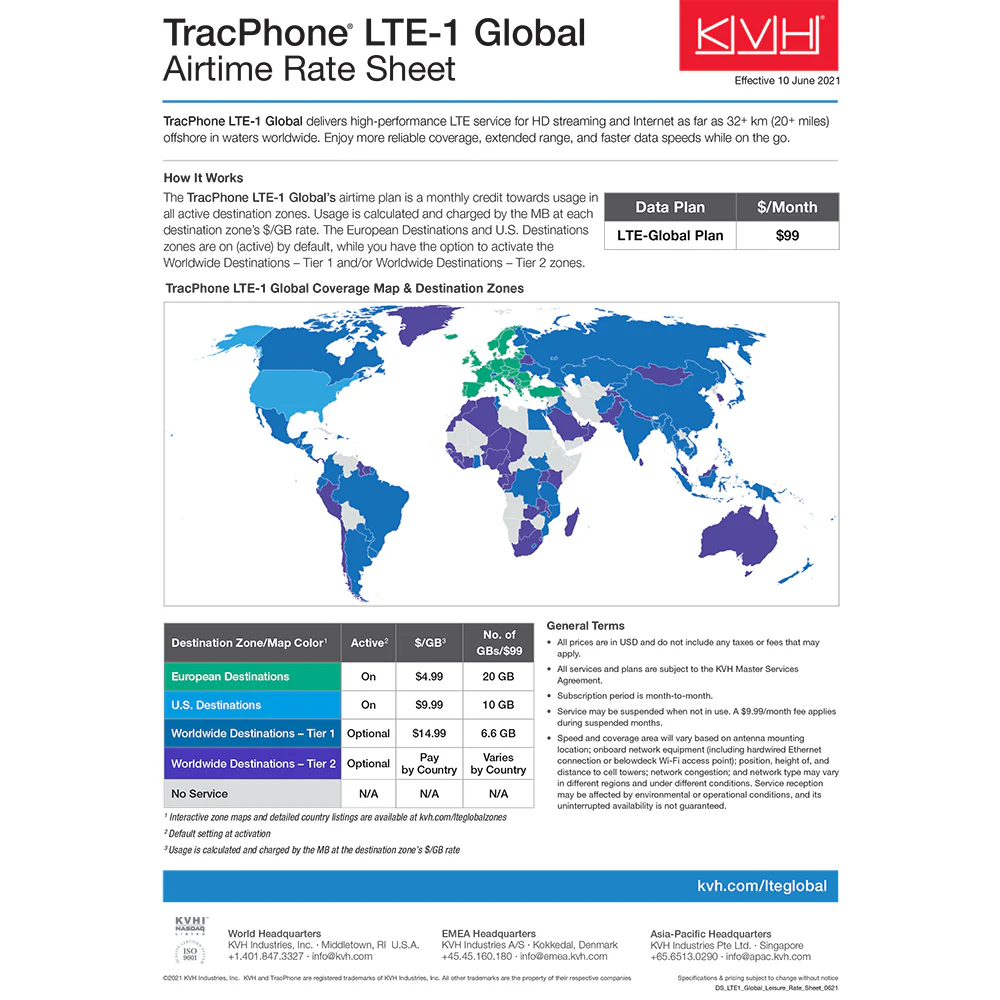

- More data: Affordable $99/month airtime data plan and the option to add more data as you need it
Highlights
- Compact, marine-grade system: 34.2 cm x 33.7 cm (13.5” x 13.3”) / 2.8 kg (6.25 lbs)
- 1 Power/data cable: Cat 6 double-shielded 15 m (50’) cable included, more options available
- Seamless service from regional and local LTE cellular services around the globe
- Multi-device connectivity to support everyone onboard
- Simple and easy plug & play installation
- Flexible airtime plan
- Supports Wi-Fi Calling for voice service on your cell phone farther offshore*
Fully Integrated, All-in-one Solution
TracPhone LTE-1 Global is an ultra-compact, marine-grade system that includes a high-gain, dual LTE-A antenna array, modem, GPS, and Wi-Fi router in the dome.
More Coverage, Faster Speeds
The TracPhone LTE-1 Global offers blazing fast LTE-A speeds and extended and unmatched coverage as far as 32+ km (20+ miles) offshore in waters around the globe.*
Easy Wi-Fi and Network Management
TracPhone LTE-1 Global offers easy access to the built-in Wi-Fi router to configure the Wi-Fi network and the system's IP address.
*Speed and coverage area will vary based on antenna mounting location; onboard network equipment (including hardwired Ethernet connection or below deck Wi-Fi access point); position, the height of, and distance to cell towers; network congestion; and network. Service reception may also be affected by environmental or operational conditions, and its uninterrupted availability is not guaranteed.
Product Specifications
KVH TracPhone LTE-1 Global [01-0419-01] Product Specifications
| Specification Category |
Details |
| SKU |
OGL-90079 |
| Network Compatibility |
LTE-A, LTE, HSPA+, 3G |
| Speed - Max |
LTE-A (where available) |
| Wireless |
Yes |
| Antenna Configuration |
2x2 MIMO high-gain diversity antennas |
| Wi-Fi Standard |
IEEE 802.11n/g (up to 72 Mbps) |
| Service Coverage |
Up to 32+ km (20+ miles) offshore with unobstructed line-of-sight |
| Wi-Fi Calling Support |
Yes, via compatible cell phones |
| Antenna Dimensions |
34.2 cm (13.5") diameter x 33.7 cm (13.3") height |
| Antenna Weight |
2.8 kg (6.25 lbs) |
| Operating Temperature |
-25°C to +55°C (-13°F to +131°F) |
| Survival Temperature |
-25°C to +70°C (-13°F to +158°F) |
| Power Requirements |
9-36 VDC, 4 watts nominal, 12 watts maximum |
| Cabling |
15 m (50') Cat 6 double-shielded power/data cable included |
| Belowdecks Equipment |
Power-over-Ethernet (PoE) injector with 3 m (10') power cable and built-in Ethernet output port |
| Belowdecks Equipment Size |
9.7 cm x 7.9 cm x 3.6 cm (3.8" x 3.1" x 1.4") |
| Box Dimensions |
18" H x 18" W x 22" L |
| Box Weight |
17.8 lbs |
| UPC |
028327014333 |
| Installation |
Plug & Play, single cable setup |
| Connectivity |
Supports multiple devices onboard |
| Wi-Fi Features |
Built-in Wi-Fi router for network management |
| Automatic WAN Switching |
Seamless switching between LTE and satellite when integrated with KVH mini-VSAT Broadband |
Product Manual
Quick Guide (pdf)
Brochure (pdf)
Product Warranty
Warranty Coverage and World-class Support
