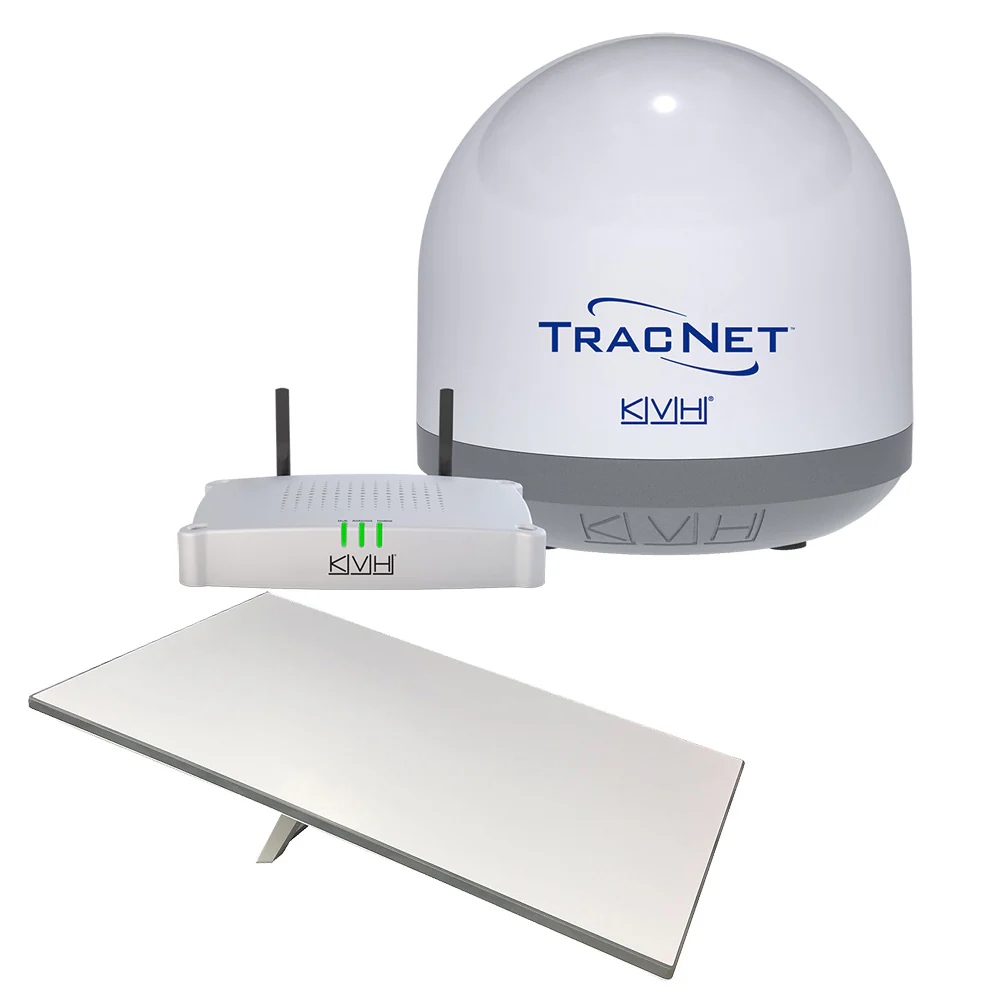

KVH Starlink Premium Standard RV Flat Panel Terminal w/TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [72-1081/01-0465]

KVH Starlink Premium Standard RV Flat Panel Terminal w/TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [72-1081/01-0465]

*This item is provided service through KVH direct, NOT Starlink. Activation is done through KVH service and will not work with Starlink direct unless an unlock fee is paid*

Best for residential users and everyday internet applications like streaming, video calls, online gaming, and more.

Starlink connects within minutes and packs up quickly when it's time to move to your next destination.

Starlink is designed to endure the elements - it can melt snow and withstand sleet, heavy rain, and harsh winds.

Features:

• 5G/LTE and WAN WiFi in a compact radome
• Integrated cellular//WiFi system with intelligent hybrid switching
• High-gain 5G cellular antennas for extended offshore coverage
• Single-cable, DC-powered maritime design (TracNet Hub)
• Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
• Data plans starting as low as $1/GB (subject to change)
• Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
• Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
• Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
• Marine-grade, compact antenna
• Single-cable antenna installation with ultra-efficient DC power design
• Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
• Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
• Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
• 4-port ethernet router
• Remote SIM technology, supporting up to two user-supplied SIM cards with convenient belowdeck access

Product Specifications

KVH Starlink Premium Standard RV Flat Panel Terminal w/TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [72-1081/01-0465] Product Specifications

Technical Specifications:

• Antenna - Electronic Phased Array
• Field of View - 110°
• Orientation - Software-Assisted Manual Orienting
• Weight - 2.9 kg (6.4 lb), 3.2 kg (7 lb) with Kickstand
• Environmental Rating -IP67 Type 4
• Operating Temperature - -30°C to 50°C (-22°F to 122°F)
• Wind Speed - Operational: 96 kph+ (60 mph+)
• Snow Melt Capability - Up to 40mm/hour (1.5 in / hour)
• Power Consumption - Average: 75-100W
• Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
• Dome Weight - 8 lbs
• Dome Operating Temperature - -25°C to +55°C (-13°F to +131°F)
• Dome Survival Temperature - -30°C to +70°C (-22°F to +158°F)
• Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN
• Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
• Power Consumption (Nominal/Max) - 16W/22W
• BDU Operating Temperature - -15°C to +55°C (+5°F to +131°F)
• BDU Survival Temperature - -25°C to +70°C (-13°F to +158°F)
• Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN

In the Box:

• Starlink Terminal
• Kickstand
• Gen 3 Router
• 15M Starlink Cable
• 1.5M AC Cable
• Power Supply with 1.5M Cable

KVH Starlink Tech Support Phone Number - 888-584-5714

KVH Starlink Activation Phone Number - 866-399-8509

TracNet Coastal 5G/WiFi Compact Terminal with TracNet Hub

Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Product Manual

N/A

Product Warranty

Warranty Coverage and World-class Support
