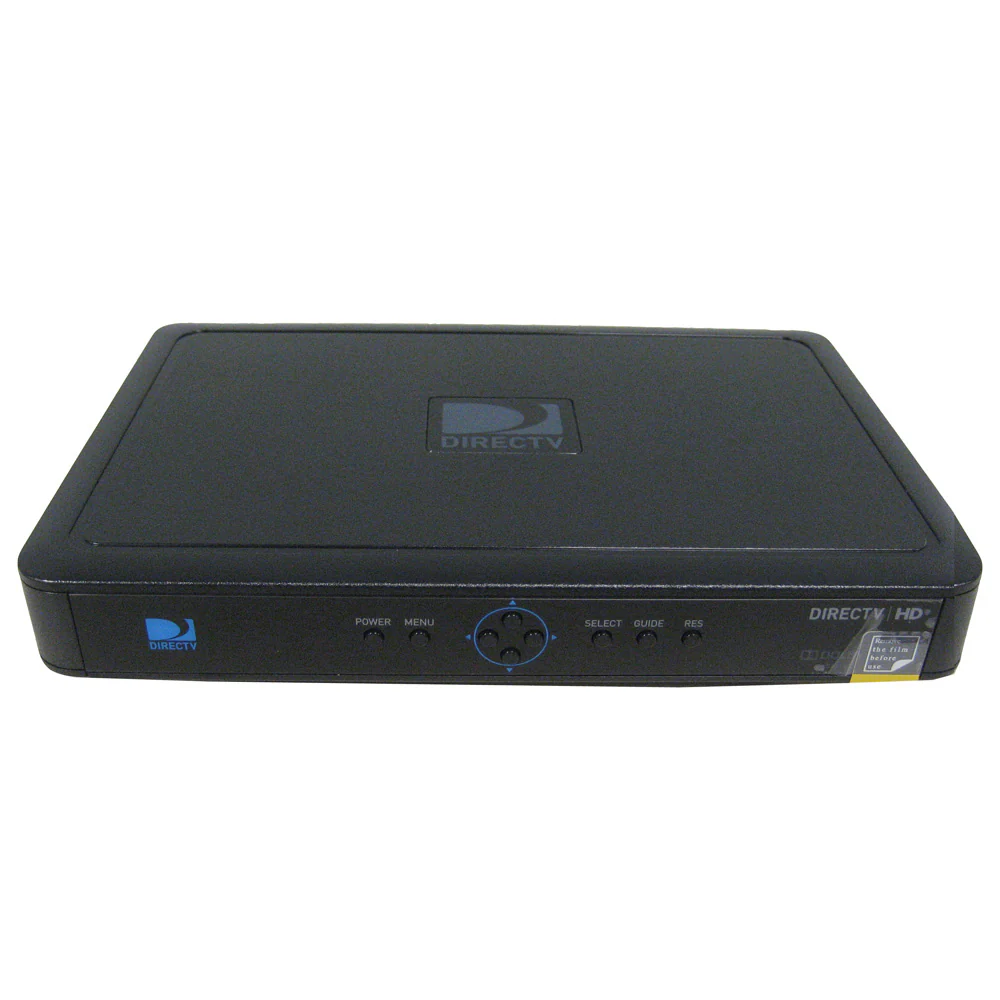

KVH DIRECTV H25 HDSWM Receiver - 110V AC w/IR Remote Included - *Remanufactured [72-0900-H25COM]
**Use with Commercial Accounts Only**
The H25 is a smaller HD Receiver designed to work on SWiM networks only.
The H25 is a 12vDC receiver that comes with a AC Adapter but it gives you the option of using 12vDC to power.
The reduced size allows more flexibility when choosing the location of the unit in a customer's home, boat or business.
The H25 Receiver is compatible with high-definition TVs with HDMI and capable of 1080p and 3D, including models from these manufacturers: Hitachi, LG, Mitsubishi, Panasonic, Philips, Pioneer, Samsung, Sony, Sharp, Toshiba, Vizio & Westinghouse.
Additionally, the H25 Receiver has an AMC satellite tuner capable of receiving both DIRECTV legacy and A3 transmissions.
Features & Accessories Include:
- Push button front panel
- Single composite A/V (RCA Type) out
- Combo component/composite out mini-DIN-10 (optional)
- External power supply (The H25 uses a DIRECTV EPS10 series external power supply)
- SWiM only SAT-IN Tuner
- Optional wall/TV mounting bracket
Additional Features:
- DIRECTV requires a 24 month (lease) commitment on all activated receivers
- SWM System Required
- Integrated Deca technology
- Parental controls/locks: Enjoy peace of mind over what your children are watching by locking out objectionable programming
- DECA Compatible
- Multi-Room Viewing Compatible
- MRV Compatible
- 3D Ready Receiver
- Faster guide surfing, and channel changing
- See whos calling with on-screen Caller ID. View and log Caller ID info provided by your local phone company
- DIRECTV H25 Reciever Dimensions: Width 8.66" Height 1.12" Depth 5.75" Weight 1.19 lbs.
In The Box:
- AC Adapter
- DIRECTV User Guide
- Access Card
- 6-Foot HDMI Cable
- RC65X IR Remote
PLEASE CONTACT KVH FOR RECEIVER ACTIVATION: [email protected]
Product Specifications
KVH DIRECTV H25 HDSWM Receiver - 110V AC w/IR Remote Included - *Remanufactured [72-0900-H25COM] Product Specifications
| Specification |
Details |
| SKU |
OGL‑84902 |
| Model / Part Number |
72‑0900‑H25COM |
| Product Type |
Remanufactured DIRECTV H25 HDSWM Receiver (110 V AC) with IR Remote |
| Power Options |
110 V AC (via adapter) or 12 V DC compatible |
| Tuner Type |
SWiM network–compatible SAT-IN tuner |
| HD Support |
Up to 1080p; 3D-capable |
| Outputs |
HDMI, composite A/V (RCA), optional component/composite mini-DIN‑10 |
| Front Panel |
Push-button controls |
| AMC Satellite Tuner |
Legacy DIRECTV and A3 compatible |
| Dimensions (W×H×D) |
8.66″ × 1.12″ × 5.75″ (220 × 28 × 146 mm) |
| Weight |
~1.19 lbs (0.54 kg) |
| Included Accessories |
AC adapter, IR remote (RC65X), access card, 6-ft HDMI cable, user guide |
