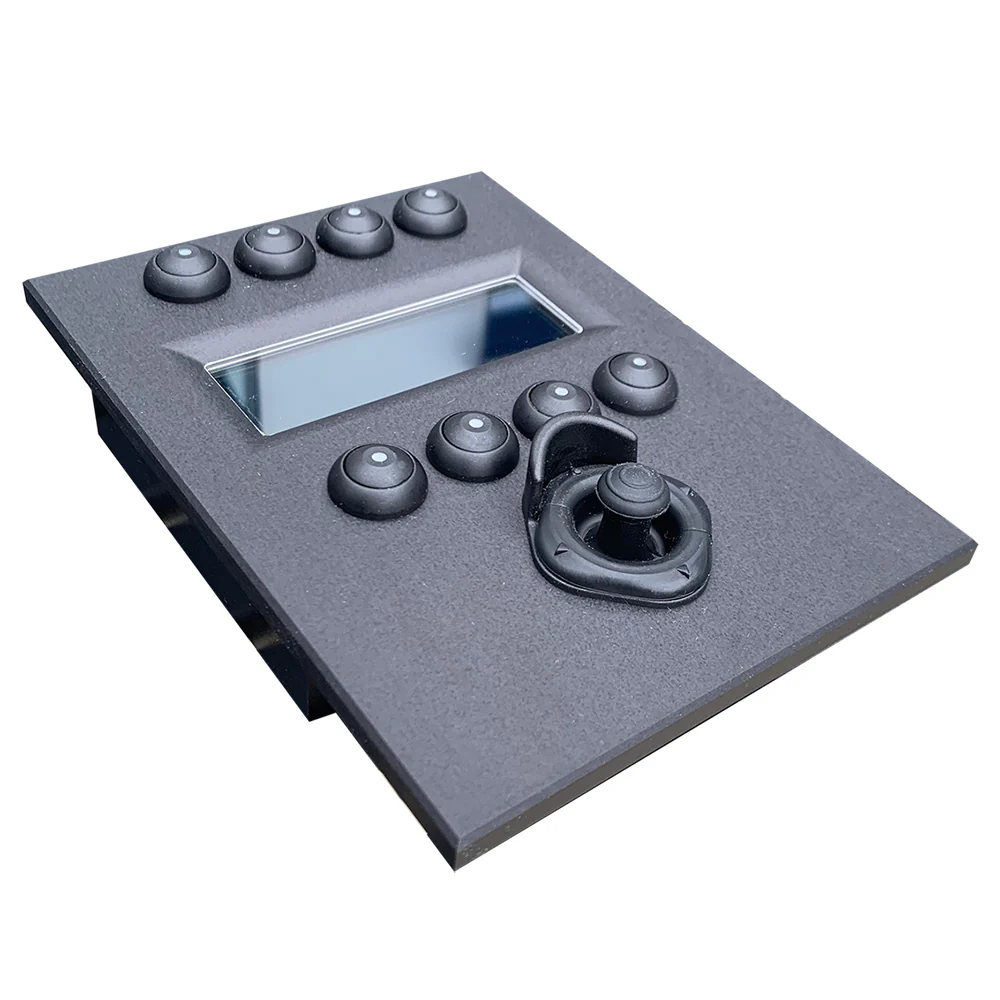

Iris 595 Controller f/NightRunner w/Joystick [IRIS595]

Iris 595 Controller f/NightRunner w/Joystick [IRIS595]

Features:

• Miniature Thumb-Stick 2-Axis Joystick
• Complete control of the NightRunner Feature Set
• Intuitive Menu-Based Operation
• Supports Iris Extended Pelco-D protocol
• 8 x Illuminated Tactile Buttons for Easy Menu Navigation
• RS485 Serial Data Communications
• Supports up to 64 Night Runner Cameras on a single network
• Multiple Controllers Supported
• Water Resistant to IP66
• Stylish Compact Design

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

Iris 595 Controller f/NightRunner w/Joystick [IRIS595] Product Specifications

Technical Specifications:

• Model – IRIS595

• Product Type – Remote Joystick Controller for Iris NightRunner PTZ Cameras

• Compatibility – Specifically designed for use with Iris NightRunner PTZ thermal and visible light cameras

• Control Functions:
   • Pan / Tilt / Zoom (PTZ)
   • Infrared on/off
   • Zoom in/out
   • Preset position recall (if supported by camera)
   • Home position reset
   • LED/illumination control (if supported)

• User Interface:
   • Intuitive joystick control
   • Tactile push buttons for quick commands
   • LED indicators for status feedback

• Connection Type:
   • RS485 or RS232 serial data interface (model-specific)
   • May include BNC pass-through or integration ports (check specific variant)

• Power Supply: 12V DC

• Power Consumption: ~2W typical

• Housing Material: Durable, marine-ready ABS or coated metal

• Color: Black or grey finish (model dependent)

• Mounting:
   • Console or flush mount
   • Tabletop with optional bracket

• Dimensions:
   • Width: Approx. 160mm (6.3")
   • Depth: Approx. 120mm (4.7")
   • Height: Approx. 70mm (2.8")

• Weight: ~600g (1.3 lbs)

• Operating Temperature: 0°C to +50°C

• Ingress Protection: Indoor or protected marine installations (not IP-rated for exterior use)

Application:

• The IRIS595 provides precise and intuitive control of NightRunner PTZ marine cameras, allowing users to operate pan, tilt, zoom, and camera functions from a central helm or control station. Ideal for use on yachts, commercial vessels, or in command centers needing fast visual navigation and situational awareness.

Product Manual

Owner's Manual (pdf)
Brochure (pdf)

Product Warranty

Iris Innovations Warranty

This product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Upon registration of the product an additional 12 months warranty will be awarded FOC. Within this period, Iris Innovations will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labour, provided that the customer shall be responsible for any transportation cost. This warranty does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Iris Innovations Limited or Iris Innovations USA Corporation; or (v) damage to a product that has been modified or altered without the written permission of Iris Innovations. In addition, Iris reserves the right to refuse warranty claims against products or services that are obtained and/or used in contravention of the laws of any country. This product is intended to be used only as a travel aid and must not be used for any purpose requiring precise measurement of direction, distance, location or topography

Product FAQs

N/A
