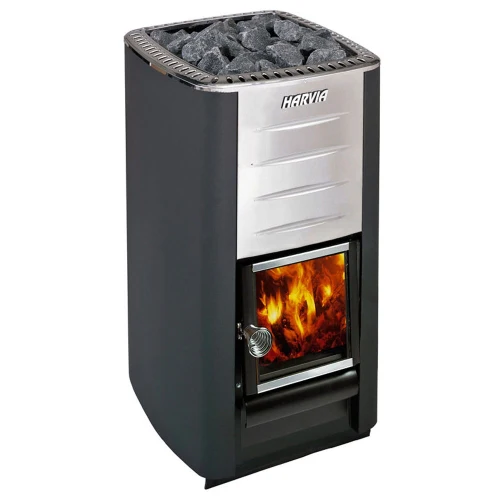

Harvia M3 BK Pkg Wood-Burning Sauna Stove Package, 16.5kW
Harvia M3 BK Pkg Wood-Burning Sauna Stove Package, 16.5kW
Description

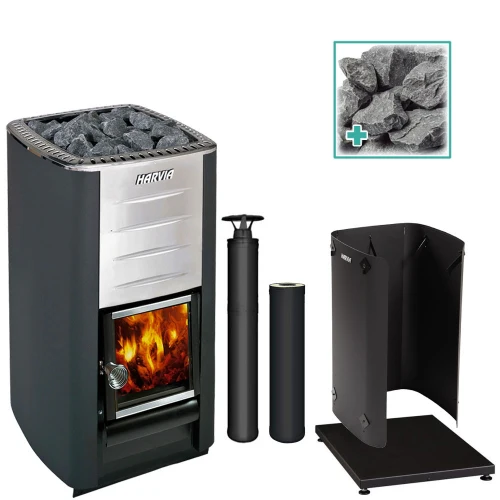

The Harvia M3 BK Sauna Stove Package comes complete with the M3 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, and Sauna Stones. This black stove package provides a traditional sauna ambiance in sauna rooms from 212 to 459 cubic feet (CF).
What's Included
M3 Sauna Stove
- Sauna Stove
- Stove Door
- Ash Box
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Protective Bedding
- Small Protective Bedding
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Protective Sheath
- Protective Sheath Panel
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Kit
- Chimney
- Utility Box
- Non-Insulated Smoke Pipe
- Rain Cap
- Rubber Rain Flange
- Installation Set for Rain Flange
- Stainless Steel Lead-Through Flange for Ceiling
- Lead-Through Insulation and Protector
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Extension
- 1000mm Chimney Extension
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 88 lbs of 4" to 6" (10-15 cm) Split-Face Stones
Product Specifications
Harvia M3 BK Pkg Wood-Burning Sauna Stove Package, 16.5kW Product Specifications
|
Kilowatt Rating |
16.5kW |
|
Primary Fuel |
Wood |
|
Maximum Firewood Length |
14" (35 cm) |
|
Diameter of Firewood |
3-6" (8-15 cm) |
|
Minimum Cubic Feet |
212 cu. ft. |
|
Maximum Cubic Feet |
459 cu. ft. |
|
Minimum Room Height |
47" (120 cm) |
|
Flue Connection Location |
Top and Back |
|
Heater Weight |
99 lbs (45 kg) |
|
Shipping Weight with Sauna Stones |
165 lbs (75 kg) |
|
Width |
15.4" (39 cm) |
|
Depth |
16.9" (43 cm) |
|
Height |
28.15"H (72 cm) |
|
Model |
WL100 |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Weight |
23.6 lbs (11 kg) |
|
Width |
18.5" (47 cm) |
|
Depth |
26.2" (67 cm) |
|
Height |
2.4"-3"H (6-8 cm) |
|
Model |
WL450 |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Weight |
15.4 lbs (7 kg) |
|
Width |
17.9" (46 cm) |
|
Depth |
19.3" (49 cm) |
|
Height |
31.5" (80 cm) |
|
Model |
WHP1500M |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Non-Vertical Installations |
Not Allowed |
|
Weight |
24.9 lbs (11 kg) |
|
Width |
8.7" (22 cm) |
|
Depth |
8.7" (22 cm) |
|
Height |
59.1" (150 cm) |
|
Model |
WHP1000M |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Non-Vertical Installations |
Not Allowed |
|
Wind Load |
6.5 ft (2m) Above Last Support |
|
Flexural Strength-Tensile Strength |
16.4 ft (5m) |
|
Maximum Spacing of Lateral Supports |
9.8 ft (3m) |
|
Weight |
14.8 lbs (7 kg) |
|
Width |
8.7" (22 cm) |
|
Depth |
8.7" (22 cm) |
|
Height |
39.4" (100 cm) |
Product Manual
Harvia Wood Burning Stove Product Manual
Hariva-M3-datasheet
Product Warranty
This HARVIA SAUNA heater is guaranteed for 2 years from date of purchase, and includes all heater parts such as heating elements, controls, contactors, etc.
Product FAQs
N/A
