Fortress FX-16 Complete Anchoring System [FX-16-AS]

Fortress FX-16 Complete Anchoring System  [FX-16-AS]

Description

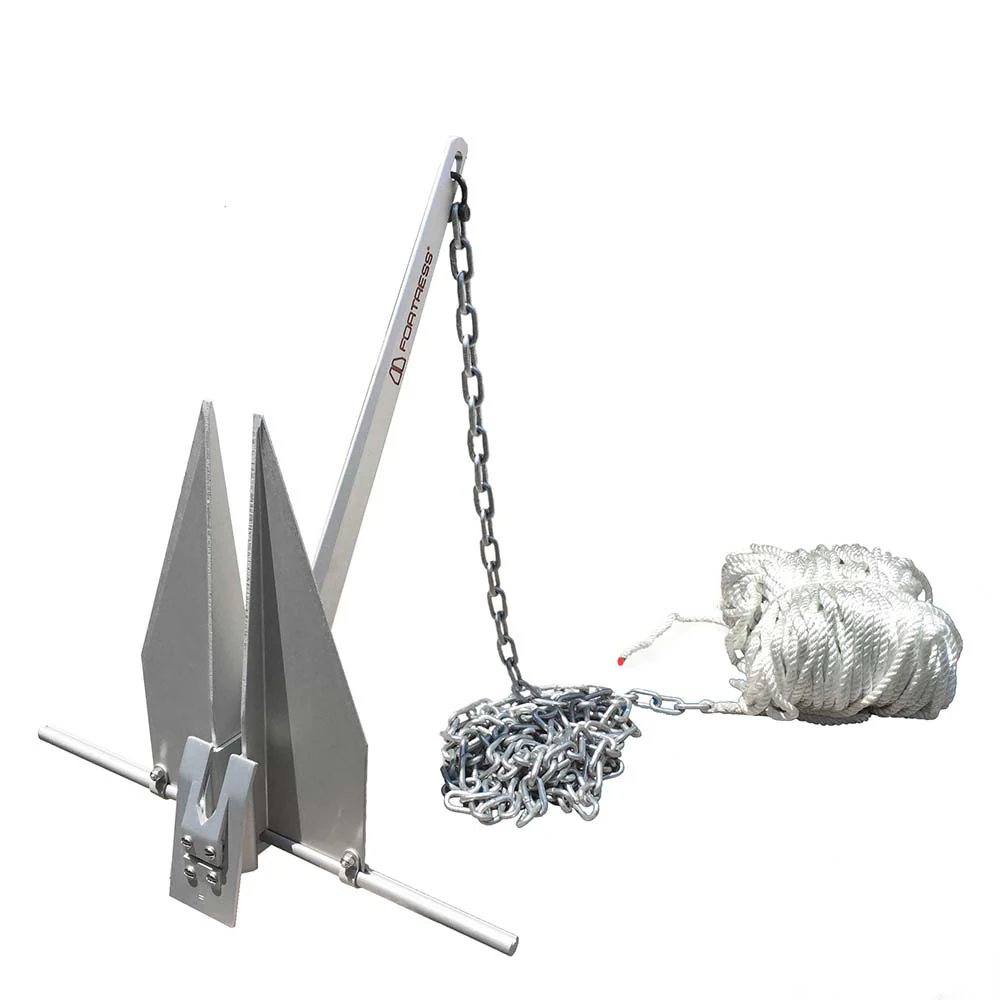

FX-16 Complete Anchoring System

Whether used as a primary anchor or conveniently-stowed backup, Fortress Marine Anchors are well-known for their exceptional holding capability.

This Complete Anchoring Systems has it all.  Two large, precision-machined and sharpened flukes ensure that Fortress anchors set fast and dig deep.  Unlike others, they’re easily adjusted from a 32° angle for use in sand and clay to 45° for soft mud.  Unique Mud Palms are included to optimize setting performance in problem soft bottoms.

Also included is 15′ of 1/4″ G-30 chain that is spliced to 250′ of shock- absorbing 3/8″ three-strand nylon rope and a 1/4″ shackle.

*For boats up to 38' (12 M)

*Made in the U.S.A.

In the box:

• Fortress FX-16 anchor
• 1/4" Shackle
• 15' of G-30 1/4" Chain
• 250' of 3/8" three-strand nylon rope
• Safe anchoring guide

*Sold as an Individual

Product Specifications

Fortress FX-16 Complete Anchoring System  [FX-16-AS] Product Specifications

Specification	Details
Product Name	Fortress FX-16 Complete Anchoring System
Model	FX-16-AS
Boat Size	Up to 38 ft (12 m)
Anchor Type	Fluke (Danforth-style)
Material	Aluminum magnesium alloy
Construction	Aluminum Alloy
Color	Aluminum
Anchor Weight	10 lbs (≈4.5 kg)
Fluke Angle	Adjustable: 32° (sand/clay) / 45° (soft mud)
Corrosion Resistance	Rustproof, anodized finish
Box Dimensions	8"H x 9"W x 33"L
Shipping Weight	32.25 lbs
UPC	647124000167
Country of Origin	USA

Product Manual

Brochure (pdf)

Product Warranty

Fortress Anchors Warranty

Fortress Anchors offer a Lifetime Parts Replacement Warranty for the original purchaser against damage that may occur to any part(s) of the anchor.  The warranty does not apply when:

• Repairs have been made or attempted by others
• Unauthorized modifications or alterations have been made
• The anchor has been used to moor a vessel larger than the size recommended for a particular anchor by Fortress Marine Anchors
• The anchor has been abused, misused or improperly maintained
• The anchor has been used for military applications

Please make sure to register your anchor. If an anchor part becomes bent or damaged, please click on the button below to complete a warranty claim. You will be responsible for shipping & handling, which can be paid by credit card when we send you an invoice. MUD PALMS are not covered under warranty.  Replacement parts are shipped via UPS or USPS.  If you are not the original purchaser, you may purchase replacement parts from us for a nominal cost.

Guardian Anchors offer a One Year Parts Replacement Warranty for the original purchaser. Please make sure to register your anchor. If an anchor part becomes bent or damaged, please click on the button below to complete a warranty claim. You will be responsible for shipping & handling, which can be paid by credit card when we send you an invoice. Replacement parts are shipped via UPS or USPS. After the first year of ownership, replacement parts are available for a nominal cost.
