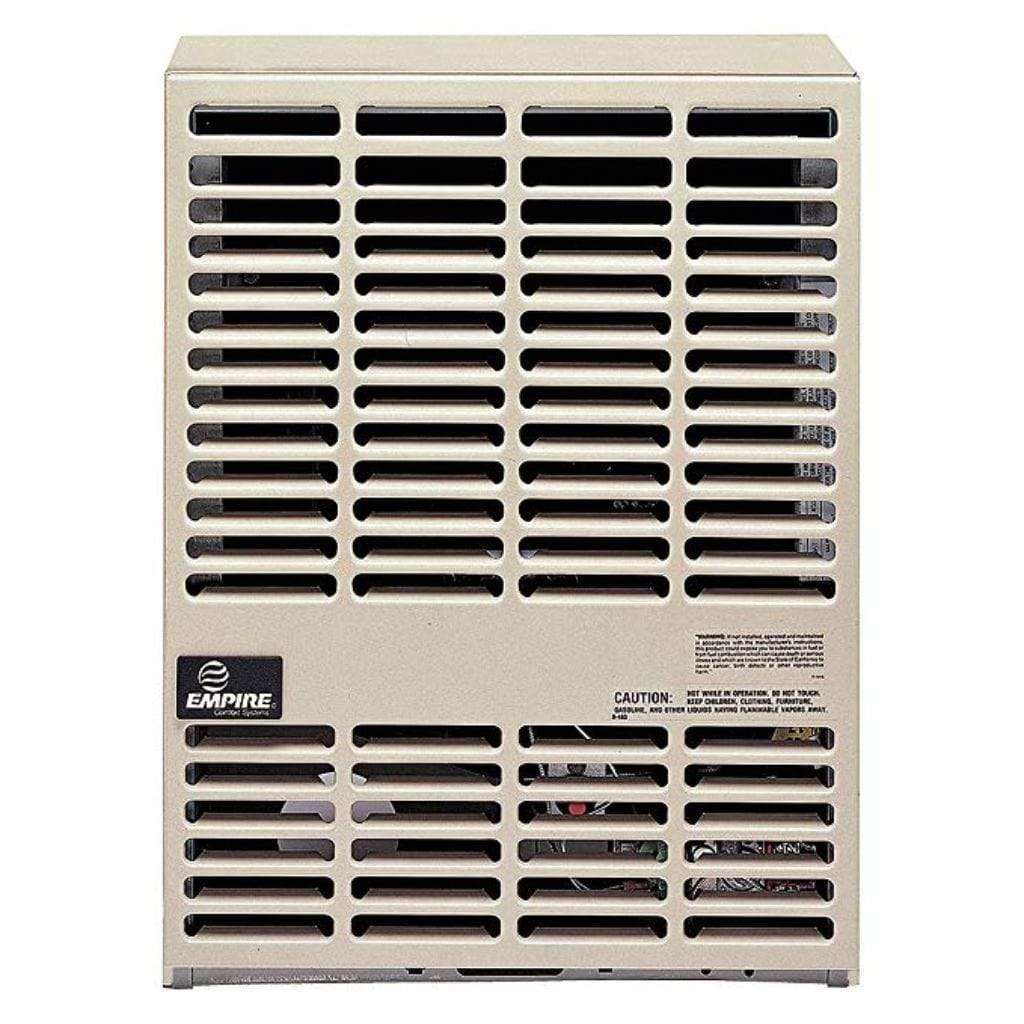

Empire Direct-Vent Wall Furnace

Empire Direct-Vent Wall Furnace

Description

Optional automatic blowers install easily for more even heat distribution. Ideal for bedrooms or studies, wall furnaces add comfort and beauty to any decor. Ideal for bedrooms or studies, wall furnaces add comfort and beauty to any decor. When you need to heat a single room or an entire home, Empire has Direct Vent Furnaces to suit your needs. Empire Direct-Vent Wall Furnaces are specifically designed for areas where flues or chimneys are not available or cannot be used. Empire Direct-Vent heaters have removable front panels for easy cleaning and servicing. With a Direct-Vent system, there is a positive difference in fuel economy because the outside air is used to support combustion. The air on the inside is warmed as it recirculates around a sealed chamber. This warm air heats the room cleanly and efficiently.

Note:

• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Children and adults should be alerted to the hazard of high surface temperature
• and should be kept away to avoid burns or clothing ignition.
• Installation and repair should be done by a qualified service person.

Features

• DV210SGX (10,000 Btu) and DV215SGX (15,000 Btu)
• Thermostat not included
• Slim, compact cabinet mounts on an outside wall.
• Quiet operation
• Matchless piezo ignition (heats without electricity)
• Optional automatic blower
• Ideal for bedrooms or studies
• Made in the USA

Product Specifications

Empire Direct-Vent Wall Furnace Product Specifications

Feature	Details
Color (Cabinet and Front Panels)	Beige
BTU Output	15,000
Width	20 1/4”
Depth	9 3/8”
Height	24 7/8”
Shipping Weight (Two Cartons)	60 lbs
Control Options	Manual Toggle Switch, Thermostat Wall Switch, Remote Control
Clearance to Combustibles (Top)	12”
Clearance to Combustibles (Each Side)	1”
Bottom of Unit to Floor Covering	0”
Type of Gas (Natural Gas/Propane)	Specify on order
Iron Pipe Size (N.P.T.)	1/2”
Wall to Valve Inlet	6 3/16”
Right Side to Valve Inlet	6 7/8”
Center of Vent to Valve Inlet	N/A
Valve Inlet to Floor Covering	2 11/16”
Wall Depth (Minimum)	4 1/2”
Wall Depth (Maximum)	See accessories for walls up to 13”
Vent Opening in Wall (Diameter)	6 1/2”
Center of Vent to Nearest Outside Corner	16”
Center of Vent to Any Opening (Flue Gases Entering)	6”
Bottom of Vent Above Grade	12”
Edge of Vent to Nearest Projecting Surface	6”
Vent Projection from Outside Wall	4”
Center of Flue to Floor Covering	19 3/8”
Safety Controls	Pilot and Main Burners include Automatic Shut-off

Product Manual

Empire Direct-Vent Wall Product Brochure

Empire Direct-Ven Owner's Manual & Installation Installation

Product Warranty

Empire Product Warranty

10-year limited warranty on combustion chamber. All other parts carry a one-year limited warranty.

Product FAQs

Empire Product FAQs

What is the difference between, Millivolt and electronic ignition heaters?

Where can I find my model and serial number?

There is a rating plate attached to the valve of your appliance that will have the model and serial number information.

Does our product work during a power outage?

Yes, most of our appliances have the ability to be used in a power outage situation. Please refer to the user manual or see a local dealer for more information.
