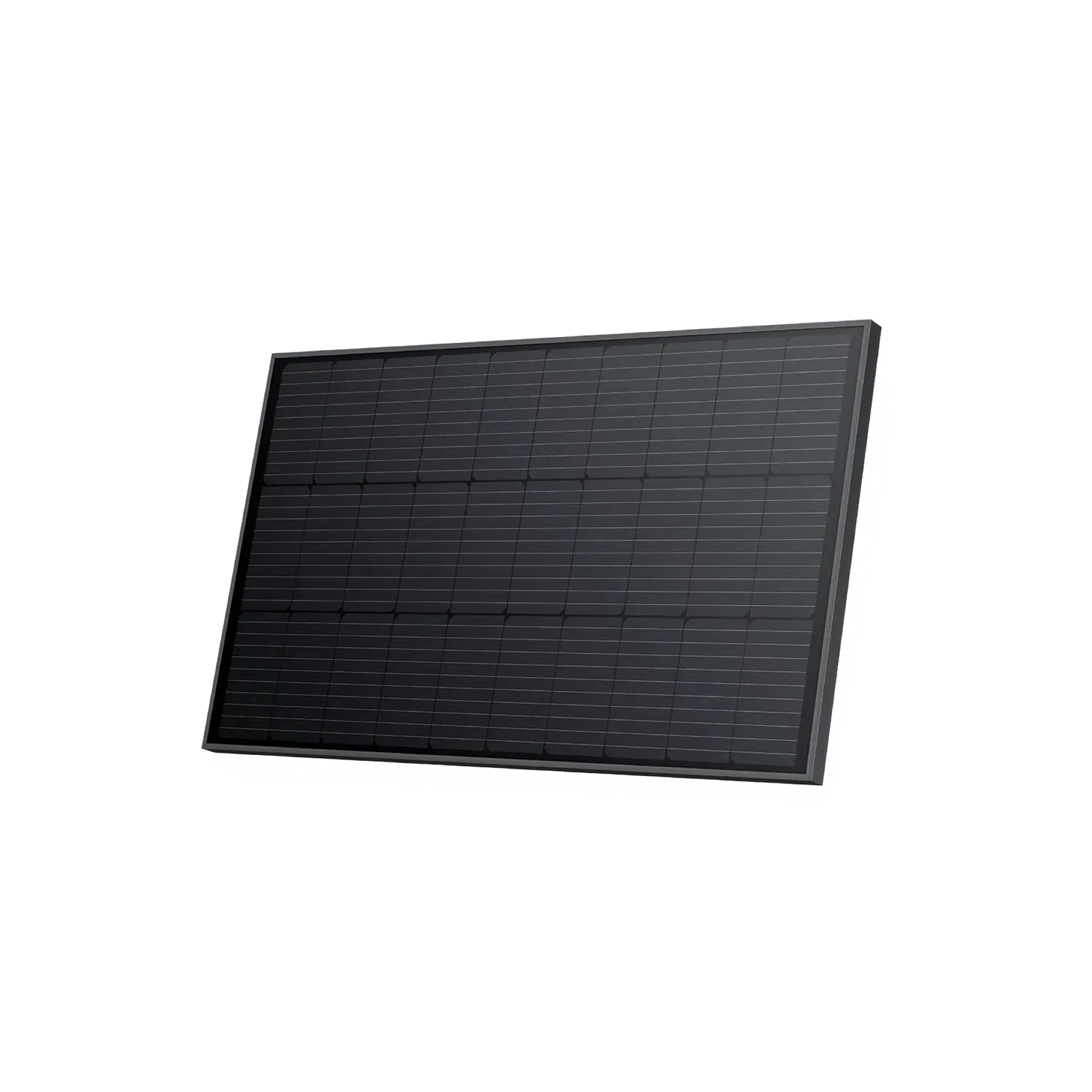

EcoFlow 100W Rigid Solar Panel
EcoFlow 100W Rigid Solar Panel
Fast Charging: Using cutting-edge cell technology, the 100W rigid solar panel has a high conversion efficiency rating of up to 23%, charging your Power Kits batteries in record time.
Installation-ready: Pre-drilled slots around the panel's edge make it convenient to mount securely on your van’s roof.
Weatherproof & Durable: The rigid panel balances design with robust materials allowing the panel to weather any storm while still offering the same excellent performance and aesthetics for years.
Universally compatible: With an all-inclusive solar connector, the 100W rigid panel works with other 3rd party solar systems and power stations.


Product Specifications
EcoFlow 100W Rigid Solar Panel Product Specifications
|
Solar Panel Weight |
Approx. 6.2 kg(13.7 lbs) |
|
Dimensions |
98*58.6*3 cm(38.6*23.1*1.2 in) |
|
Rated Power |
100 W(+/-5W) |
|
Open Circuit Voltage |
20.3 V |
|
Short Circuit Current |
6.3 A |
|
Maximum Operating Voltage |
17.1 V |
|
Maximum Operating Current |
5.9 A |
|
Temperature Coefficient of Rated Power |
0.39%/°C |
|
Temperature Coefficient of Open Circuit Voltage |
-0.33%/°C |
|
Temperature Coefficient of Short Circuit Current |
0.06%/°C |
|
Maximum System Voltage |
600 VDC(UL) |
|
Maximum Fuse Current |
15 A |
What's in the box:
1. 2x 100W Rigid Solar Panel
2. User Manual and Warranty Card
3. Solar to XT60 Charging Cable
Product Manual
EcoFlow 100W Rigid Solar Panel Product Manual
EcoFlow 100W Rigid Solar Panel | User Manual
Product Warranty
EcoFlow Warranty Policy
Manufactures, suppliers, or publishers other than [email protected], may provide their own warranties to you. Please contact them for further information.
Please note that the warranty period may vary according to local laws and regulations. Some countries, states, and provinces do not allow limitations on how long an implied warranty may last, so the limitation described above may not apply to you. You may have other rights from state to state, province, or country.
DO NOT USE YOUR PRODUCTS UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY.
All EcoFlow products purchased on ecoflow.com come with a limited warranty, as shown below. BY USING ECOFLOW PRODUCTS, YOU AGREE TO BE BOUND BY THE TERMS OF THE ECOFLOW LIMITED WARRANTY.
We provide a limited warranty for purchases on ecoflow.com. The warranty period started when the original purchaser received the products.
Warranty Timeline
| Item | Warranty Period (refer to months, unless specified) |
|---|---|
| DELTA Max (1600/2000) DELTA Max Smart Extra Battery |
24+12 (Registration for warranty extension) |
| DELTA Pro DELTA Pro Smart Extra Battery |
24+36 (Registration for warranty extension) |
| RIVER mini RIVER RIVER Max RIVER Max Plus RIVER Pro RIVER Extra Battery RIVER Pro Extra Battery DELTA mini DELTA Smart Generator (Dual Fuel) |
24 |
| 400W Portable Solar Panel 220W Portable Solar Panel 160W Portable Solar Panel 110W Portable Solar Panel 85W Portable Solar Panel 60W Portable Solar Panel 45W Portable Solar Panel(Discontinued) |
12 |
| 400W Rigid Solar Panel | 10 years |
| 100W Rigid Solar Panel |
60 |
| 100W Flexible Solar Panel | 36 |
| Wave Portable Air Conditioner Wave Add-On Battery |
12 |
| Accessories | 12 |
| Smart Generator | 12 |
| Power Hub Power Kits Console 2kWh/5kWh LFP Battery RIVER 2 RIVER 2 Max RIVER 2 Pro DELTA 2 DELTA 2 Max DELTA 2 Extra Battery |
5 years |
| R600/R600 Max/R600 Pro/EF-1500* | 36 |
| BLADE | 36+12 (Registration for warranty extension) |
| GLACIER | 12+12 (Registration for warranty extension) |
| WAVE 2 | 12+12 (Registration for warranty extension) |
| WAVE 2 Add-on Battery | 24 |
| DELTA Pro Ultra Battery | 5 Years |
| DELTA Pro Ultra Inverter | 5 Years |
| Smart Home Panel 2 |
10 Years |
| 800W Alternator Charger | 2 Years |
| DELTA Pro 3 |
5 Years |
| DELTA Pro 3 Extra Battery | 5 Years |
| Smart Generator 4000 (Dual Fuel) | 3 Years |
| Power Hat | 1 Year |
| DELTA 3 Plus DELTA 3 Extra Battery |
5 Years |
| RIVER 3 | 2 Years |
| DELTA 3 1500 |
5 Years |
| RAPID 5000 | 2 Years |
| 125W Bifacial Modular Solar Panel | 5 Years |
| Smart Generator 3000 (Dual Fuel) | 2 Years |
| RIVER 3 Plus | 5 Years |
For Kickstarter backers, please refer to the special warranty policy of the campaign or contact [email protected].
Warranty extension
You can extend the warranty for products purchased between January 1, 2022, and August 31, 2022, by registering on the official website on or before October 15, 2022.
Warranty cannot be extended for products purchased before January 1, 2022.
Customers who have purchased products on or after September 1, 2022 will enjoy the warranty period (with warranty extension) listed in the table above. Customers are advised to complete registration as early as possible.
Exclusions and Limitations
This warranty does not apply:
· Non-quality related issues;
· Items purchased from unauthorized resellers;
· Purchases without valid proof of purchase;
· Items that have been refunded;
· Items that have expired their warranty period;
· Any defects or damages caused by misuse of products, unauthorized modification, dis-assembly or operation not in accordance with the official instructions or manuals;
· Any defects or damages caused by exposure to excessive heat, liquids or other external causes;
· Any defects or damages caused by reliability or compatibility issues when using unauthorized third-party parts;
· Lost or stolen products;
· Free products.
Cross-Regional After-Sales Service
The products available for purchase on this website are manufactured in accordance with U.S. regulations and are intended solely for use within the United States and (e.g. These products are designed to operate on a 120V power supply in the United States.) We do not recommend, nor do we support, the purchase and shipment of these products to regions outside the United States. If the product is transported and used outside the U.S., any quality issues or malfunctions arising from such use will not be covered under this warranty. Furthermore, it is the user’s responsibility to verify that the product’s specifications, such as electric requirements, are compatible with the standards of the region in which it will be used. we shall not be held liable for any damages, losses, or other consequences resulting from such purchase or use.
EcoFlow does not provide a global product warranty, and the warranty service can only be obtained at a designated EcoFlow repair center.
To repair the product in an EcoFlow repair center when the product was purchased in another region, depending on part availability, customers can obtain a cross-regional repair service at an additional charge. (Some products do not support cross-regional repair even if the customer is willing to pay for the service. For more details, please contact EcoFlow Support.)
A cross-regional replacement service is not available for different versions of the same product.
The customer will need to bear customs duties, taxes, customs clearance, and other costs incurred for a cross-regional repair, regardless of whether it is the warranty or paid repair service.
Valid Proof of Purchase
- A purchase order number made through ecoflow.com;
- Sales invoice or order confirmation email that clearly shows the description of the product, its price, and sales channel.
Warranty Registration
- Register your warranty at https://www.ecoflow.com/us/support/warranty
Product FAQs
Can I connect 100 W Solar Panels in series?
Yes, you can use EcoFlow 100W Rigid Solar Panels in series, but a mixed series connection is not recommended. Please read the instructions in the User Manual carefully, paying particular attention to the limitations on solar panel output. For example, the mixed series connection of solar panels with different circuit currents will release their power insufficiently and cause a ‘1+1<2’ effect.
How much power can the 100 W Solar Panel generate under normal conditions?
This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 70 W–80 W of power in the 100 W panel (current light conditions are normally 800–900 W/m2 (74.3–83.6 W/ft2) with a panel temperature of 50°C (32°F) under test conditions. Nominal power ratings are based on 1,000 W/m2 (92.9 W/ft2) in AM1.5 conditions with a panel temperature of 25°C under test conditions. Power output figures close to nominal values were normally observed in the midday sun during the winter).
Can I connect 100 W Solar Panels in parallel?
Yes. Connecting panels in parallel increases power through doubling the current. The maximum number of 100W panels allowed in a parallel connection depends on the controller and energy storage equipment of your recreational vehicle. Please ensure that the energy storage system used in your vehicle supports a higher input current, and you should use wires with a diameter suitable to the output current to securely connect the panels in parallel.
Do I need to clean the 100 W Solar Panel regularly?
Yes. There can be a lot of dust and foreign objects on the surface of the solar panel after the panel has been used outdoors for a long time, which block the light to a certain extent, reducing the power output. Regular cleaning can help keep the surface of the solar panel clean and free from obstructions and generate a higher power output.
What are the usage temperature range and precautions for use for the 100 W Panel?
The operating temperature of the solar panel is -20°C to 85°C (-4°F to 185°F). Please read the product's manual carefully before use. Solar panels are made of monocrystalline silicon wafers. During installation and use, please do not slam the panels on the ground, step on them, strike them with foreign objects, or sit on their surface as such actions may cause the monocrystalline silicon wafers to crack, which will affect your use.Damage caused by human force is not covered by the free warranty.
Original: $179.00
-65%$179.00
$62.65Product Information
