Dometic Eskimo Cup Holder - 12VDC [250140101]
Dometic Eskimo Cup Holder - 12VDCÂ
Description

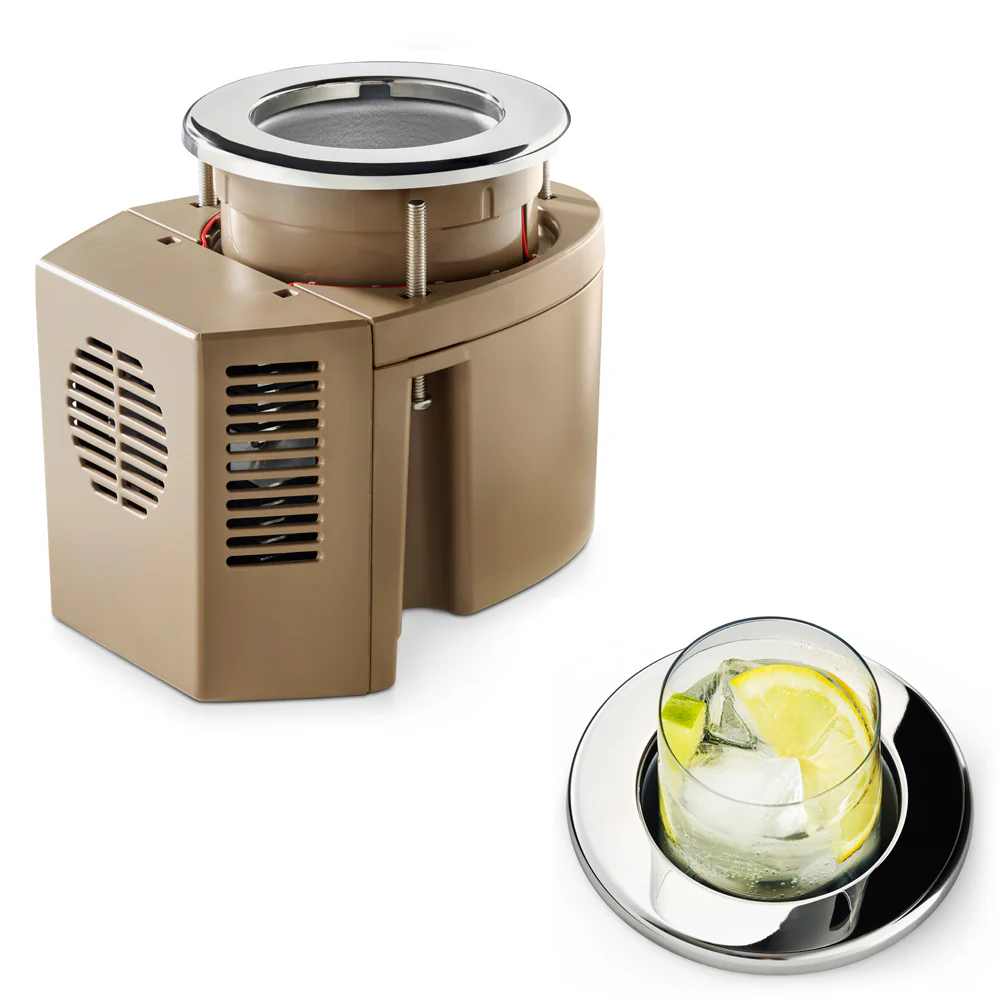

The Dometic Eskimo Cup is a thermoelectric refrigerated cup holder. It is designed to accommodate mounting into surfaces of various thicknesses.
A polished marine-quality 316 stainless-steel trim ring finishes the surface installation and is accented with two blue LED interior lights.
Features:
- Keeps cold beverages chilled while you drink them, even on a hot day
- Holds beverage containers up to 20 ounces (591 ml)
- Replaces most standard cup holders and is easy to install
- Polished 316 stainless steel trim ring
- Blue LED interior lights
- DC-powered premium thermoelectric Peltier cooling element
- Easy to keep clean with a non-stick aluminum surface and built-in drain
- Electronics are completely sealed for protection against salt spray
- Safety features include a low-voltage cut off to avoid a dead battery, a high-voltage cut off to prevent damage to the unit, a high-heat cut-off, and an in-line fuse
- 4" recessed cup holder
- Powered by the house battery
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm, and Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Product Specifications
Dometic Eskimo Cup Holder - 12VDCÂ Product Specifications
| Specification | Details |
|---|---|
| Product Name | Dometic Eskimo Cup Holder – 12 V DC |
| Part Number / OEM | 250140101 / 348‑250140101 |
| Purpose | Thermoelectric refrigerated cup holder for marine/mobile use |
| Mounting | Fits 4″ cutout; accommodates surfaces up to 1.25″ thick |
| Material & Trim | Plastic body; polished marine‑quality 316 stainless steel trim ring |
| Beverage Capacity | Up to 20 oz (591 ml) containers |
| Cooling Element | DC-powered Peltier thermoelectric cooler |
| Interior & Drain | Corrosion-resistant non-stick aluminum interior with built-in drain |
| LED Lighting | Two blue LED interior lights |
| Electrical Protections | Includes low-voltage, high-voltage, and high-heat cut-offs plus inline fuse |
| Self-contained Electronics | Fully sealed against salt spray |
| Dimensions (H×W×D) | 6.23" × 5.36" × 6.85" (159 × 137 × 174 mm) |
| Interior Diameter | 2.95" (75 mm); requires 4.0" (102 mm) hole |
| Power Cord Length | 16" (407 mm) |
| Current Draw | 3.1 A at 12 V DC |
| Weight | ~2.11 lb (0.96 kg) |
| Safety Notices | California Prop 65 warning for DEHP, DINP, arsenic |
Product Manual
Owner's Manual (pdf)
Product WarrantyÂ
Product FAQs
N/A
