Cannon Optimum 10 BT Electric Downrigger [1902335]

Cannon Optimum 10 BT Electric Downrigger [1902335]

The Smart, Connected, Electric Downrigger

If you want to put bait on target, you’ve got to fish smarter. The Optimum™ downrigger is positively ingenious. This smart, connected system gives you access to critical trolling data and lets you raise, lower and cycle weights using the full-color LCD display, your Humminbird® fish finder, or even your mobile device. No matter where you are on the boat, you’re in charge. And the fish won’t know what hit them.

See It All, Everywhere.

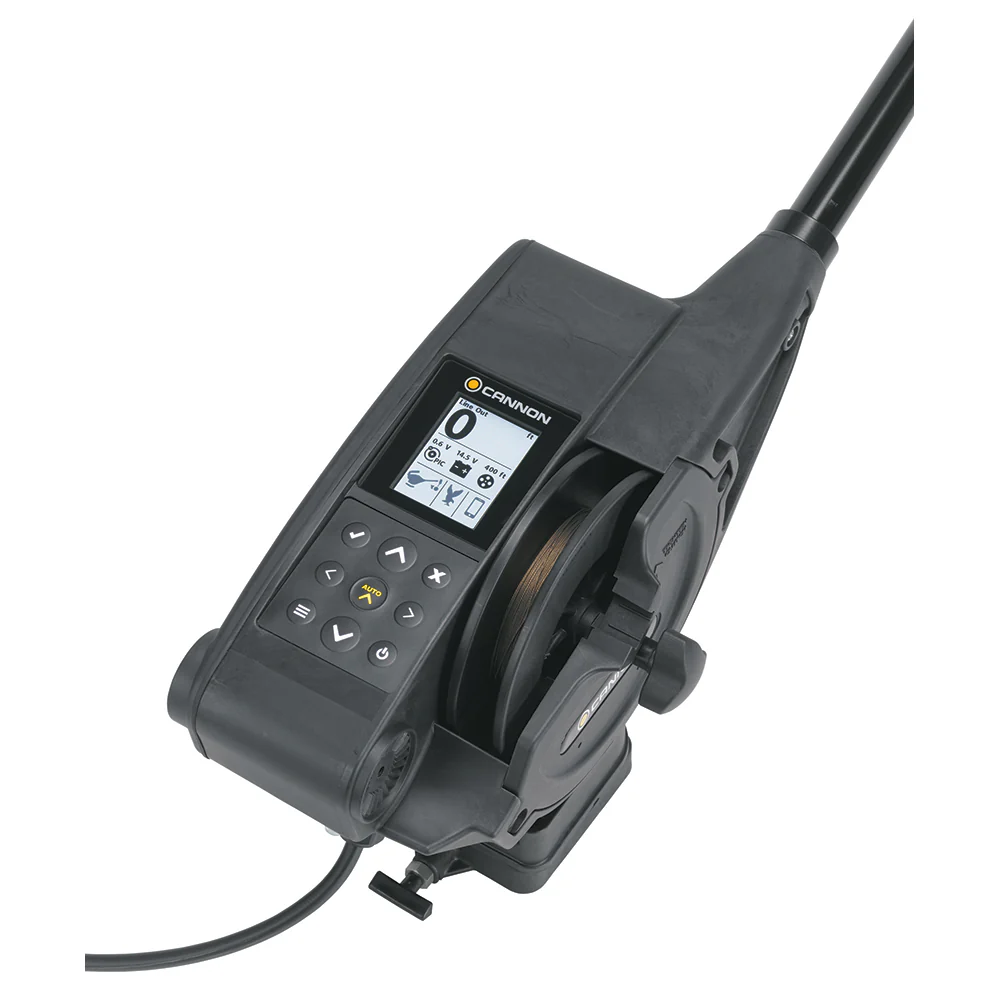

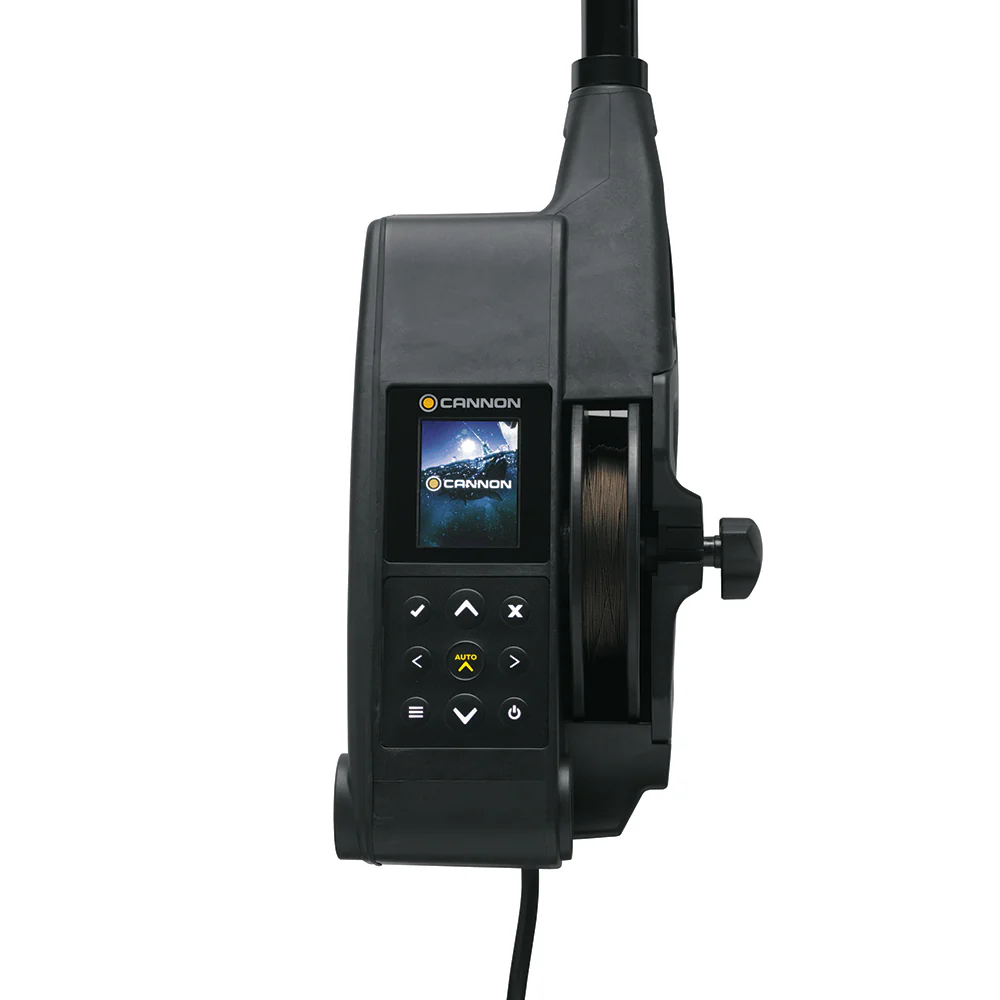

Every Optimum has a full-color 3.5" LCD display. Choose from multiple screen view options to get the trolling data you’re after, and two modes (light/dark) for readability in any light.

Experience Full Wireless Connectivity

Running multiple lines is easier than ever, because complicated wiring is a thing of the past. You can network up to four Optimum downriggers wirelessly.

Download the App

With the Cannon® app on your mobile device, you’ll have trolling data at your fingertips and total control of your Optimum downriggers from anywhere on your boat. It even keeps your Optimum software up to date.

Experience In-Depth Knowledge

Integrate with the Fish Hawk™ X4D System (sold separately) to get the true running depth and speed of your weight, the temperature at the weight, plus surface temperature and speed.

Enjoy Total Control

Through the One-Boat Network™, you can view critical trolling information and control your downriggers from anywhere on the boat using the Optimum downrigger display, Humminbird fish finder or the Cannon app on your mobile device.

Key Features:

• Depth Cycling - Seeing fish at a certain depth? Cycle your weights up and down at preset intervals in the strike zone and get ready for action.
• Preset Depths - Too busy to notice your depth after a catch? Your Optimum remembers, so you can put bait in that same spot, fast. It stores up to five preset depths, too.
• Bottom Tracking - Automatically keep your bait at a preset distance from the bottom.
• Positive Ion Control - Create a fish-attracting field of energy by emitting positive ions from your cable. Fully adjustable, so you can dial into a setting that drives fish wild.
• Auto Up - With one push of a button, instantly retrieve all your weights at once or one at a time.
• Waterline Zero - On retrieval, it automatically stops your weights a set distance below the waterline, so swinging weights won’t damage your boom or your boat.

Additional Features:

• 250 feet-per-minute retrieval speed is the industry's fastest
• Five adjustable retrieve and deploy speeds

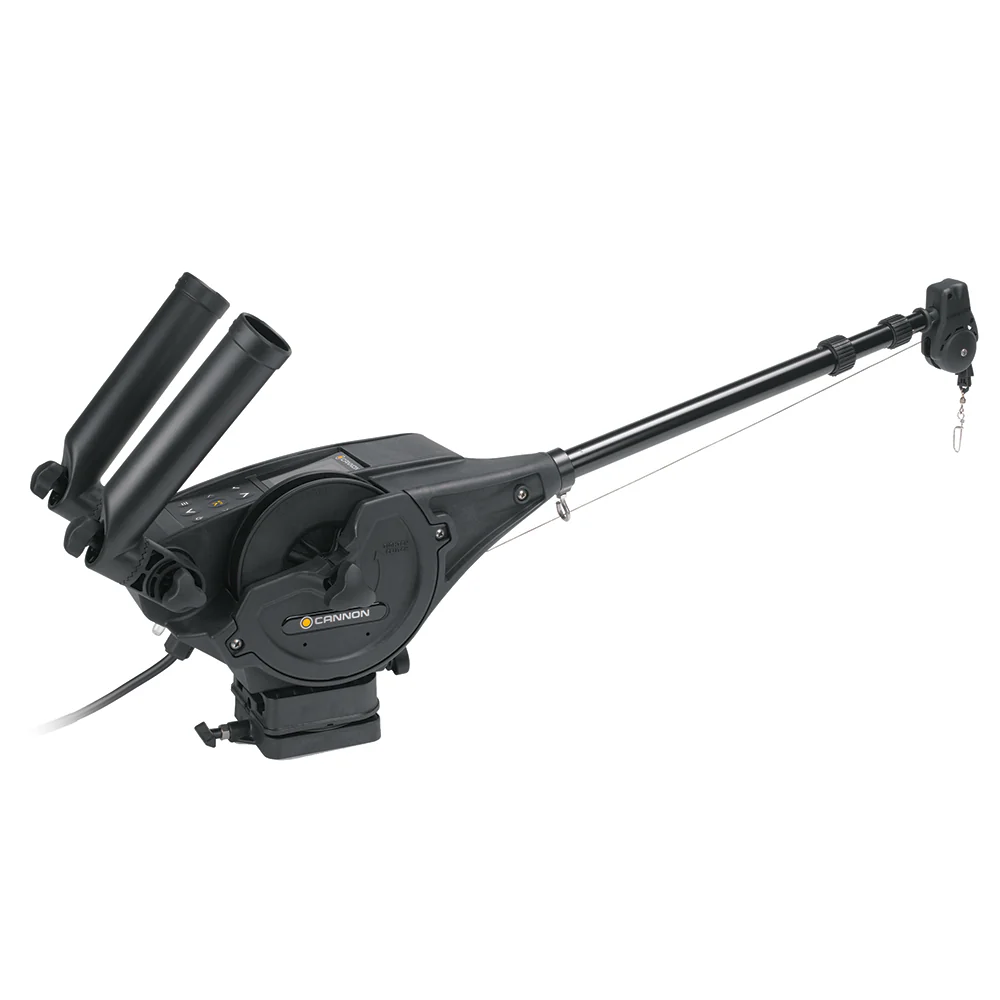

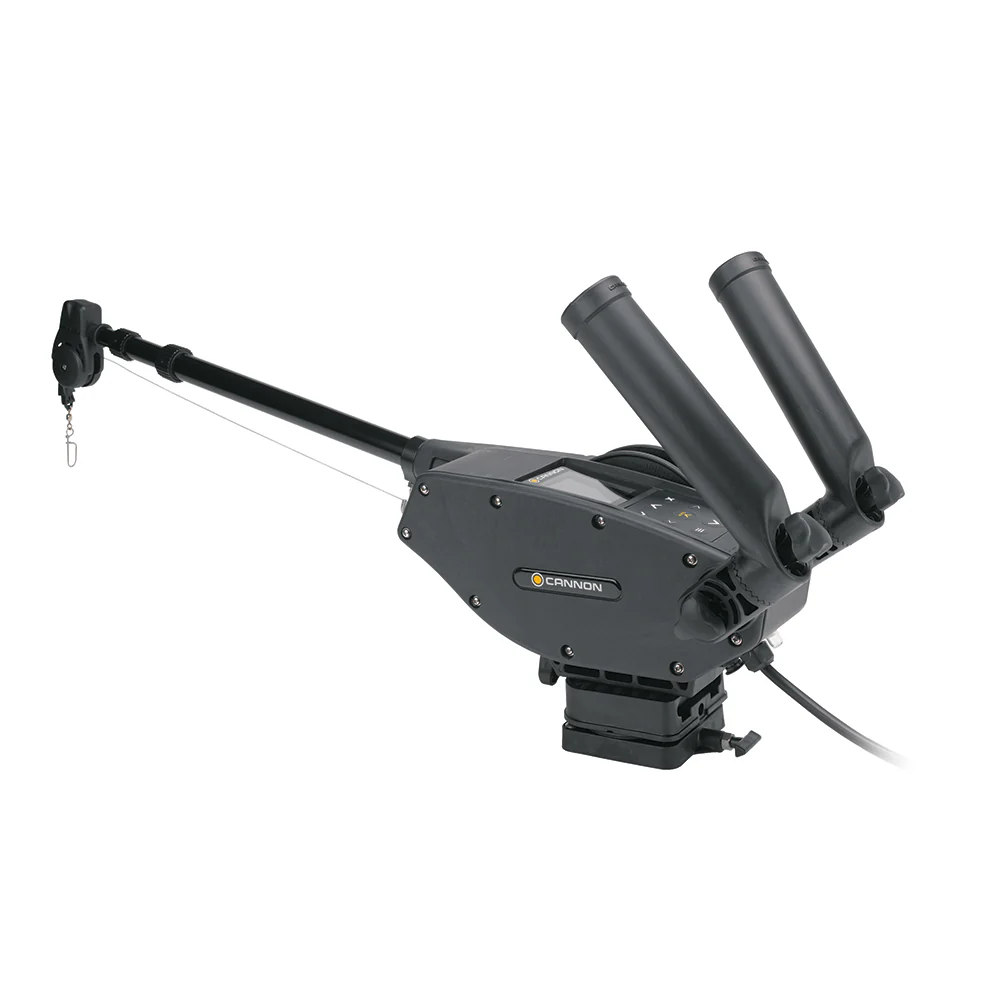

• Heavy-duty telescopic boom extends from 24" to 53"

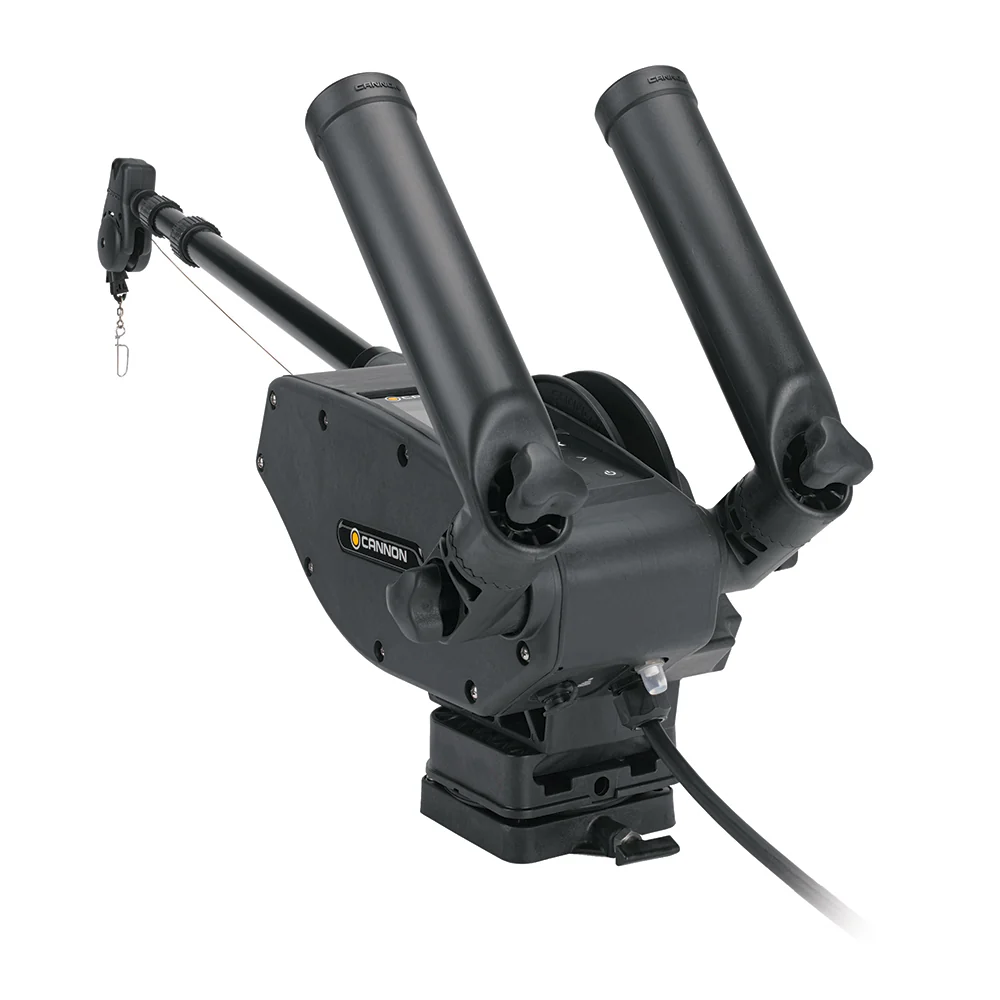

• Includes two dual axis adjustable rod holders
• Includes one dual axis adjustable rod holder (TS model only)
• Easy spool access
• Includes mounting base and low-profile 360Ëš swivel base
• Includes composite spool with 400 ft of 150-lb stainless steel cable
• Includes stainless steel spool with 400 ft of 150-lb stainless steel cable (TS model only)
• Includes Line Terminator with two Uni-Line Releases
• Waterproof connections
• Integrated ball storage hook
• Includes manual crank handle
• 20-lb weight capacity
• Corrosion-resistant construction
• Limited lifetime warranty

Product Specifications

Cannon Optimum 10 BT Electric Downrigger [1902335] Product Specifications

Specification	Details
Model	1902335
Product Type	Electric Downrigger
UPC	029402046881
Retrieval Speed	250 ft per minute
Weight Capacity	20 lb
Boom Material	Stainless steel
Boom Length	24″ adjustable
Display	Full-color LCD
Connectivity	Bluetooth®, Cannon® App, One-Boat Network™ ready
Power Requirement	12V DC
Memory Functions	Preset depth storage, Bottom Tracking™, wireless updates
Construction	Composite frame with stainless steel boom
Includes	Line release, power cord, swivel base, mounting hardware
Manufacturer	Cannon (Johnson Outdoors)

Product Manual

Quick Guide (pdf)
Owner's Manual (pdf)

Product Warranty

CANNON LIMITED LIFETIME WARRANTY

JOME warrants to the original purchaser that if the accompanying product (see exclusions below) proves to be defective in material or workmanship within the following warranty periods, JOME will, at its option, either repair or replace same without charge (but no cash refunds will be made):

The boom, motor (if applicable), and reel, plus all plastic parts, including but not limited to frames and bases, will be free from defects in materials and workmanship, subject to normal wear and tear, for the original purchaser’s lifetime.

All other items will have 1-year limited warranties from the date of original retail purchase, except THE FOLLOWING ITEMS THAT HAVE NO WARRANTY: swivel lock pin, weights, wire cable, and switch/circuit breaker boot covers.

LIMITATION AND EXCLUSION OF IMPLIED WARRANTIES AND CERTAIN DAMAGES

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. JOME DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES, AND IN NO EVENT SHALL ANY IMPLIED WARRANTIES (EXCEPT ON THE BOOM, MOTOR, REELS, AND ALL PLASTIC PARTS), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND ONE YEAR FROM THE DATE OF PURCHASE (AND IN THE CASE OF THE SWIVEL LOCK PIN, WEIGHTS, AND WIRE CABLE, JOME DISCLAIMS ALL IMPLIED WARRANTIES). THIS WRITING CONSTITUTES THE ENTIRE AGREEMENT OF THE PARTIES WITH RESPECT TO THE SUBJECT MATTER HEREOF; NO WAIVER OR AMENDMENT SHALL BE VALID UNLESS IN WRITING SIGNED BY JOME.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

CANNON SERVICE POLICY

AFTER THE APPLICABLE WARRANTY PERIOD

After the applicable warranty period, or, if one of the above exclusions applies, Cannon® products will be repaired for a charge of parts plus labor. All repairs by Authorized Service Centers, after the applicable warranty period, carry a 90-Day Limited Warranty, subject to the exclusions and limitations stated above.
