Description

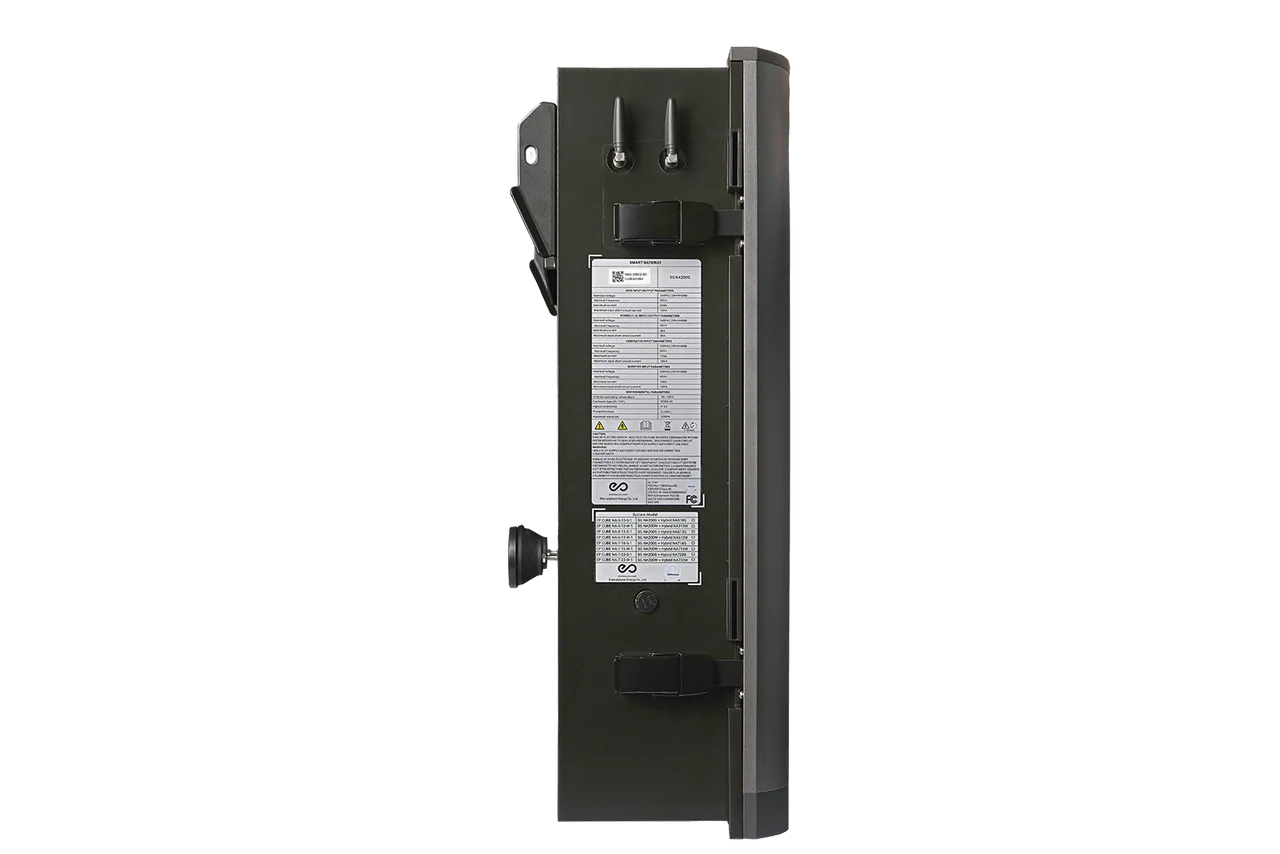

Canadian Solar EP Cube Smart Gateway

The Canadian Solar EP Cube Smart Gateway is a versatile and efficient solution designed to optimize your solar power system. With an integrated hybrid inverter, this smart gateway supports both DC and AC PV input, making it suitable for both new and retrofit PV systems. It comprehensively guarantees a continuous household power supply and seamlessly switches to backup power in case of a power failure.

Key Features:

• Integrated Hybrid Inverter: Supports both DC and AC PV input for maximum flexibility.

• Uninterrupted Power Supply: Seamless switch to backup power during outages ensures reliability.

• Advanced Connectivity: Supports Wi-Fi and cellular network connections for remote monitoring and control.

• Remote Monitoring: Monitor power generation and consumption via your smartphone.

• OTA Firmware Updates: Over-the-air firmware updates provide continuous function improvements.

• Modular and Stackable Design: Easy to install and transport, with capacity options ranging from 9.9 kWh to 19.9 kWh per EP Cube unit, and up to 119.9 kWh for the full system.

• Long-Term Power Solutions: Compatible with generators for extended power outages.

• EV Charging Capability: Can be connected to two 50A Level 2 EV chargers for electric vehicles.

Additional Features:

• Wall-Mounted Smart Gateway: Connects your system to the internet, allowing full control and monitoring via your smartphone.

• Safety Assured: Integrated arc fault circuit interrupter and PV rapid shutdown features, along with a limited warranty, ensure the highest safety standards.

The Canadian Solar EP Cube Smart Gateway is engineered for durability and performance, offering optimal energy production and management for your home.

Whether it’s your first project or your fifth, our USA-based team is here for you. Lifetime support means you’re never on your own.

Product Specifications

Canadian Solar EP Cube Smart Gateway Product Specifications

Feature	Details
Model	EP Cube Smart Gateway
Grid Voltage	120/240V AC
Frequency	60 Hz
Rated Current	200A
Overcurrent Protection	40A (EP Cube interface), 100A (Enhanced interface)
Short Circuit Protection	10 kA
Output Voltage	120/240V AC
Communication	Wi-Fi, Cellular (LTE, 4G)
User Interface	EP Cube App (Android & iOS)
Mounting	Wall-mounted
Enclosure Rating	NEMA 4X
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Certifications	UL1741-SB, ICES-003 (Class B), FCC Part 15 (Class B), IEEE 693-2005 (High)
Warranty	10 years

Product Manual

Canadian Solar EP Cude Data Sheet

Canadian Solar EP Cude Installation Guide

Product Warranty

Canadian Solar EP Cube Warranty

Product FAQ's

N/A
