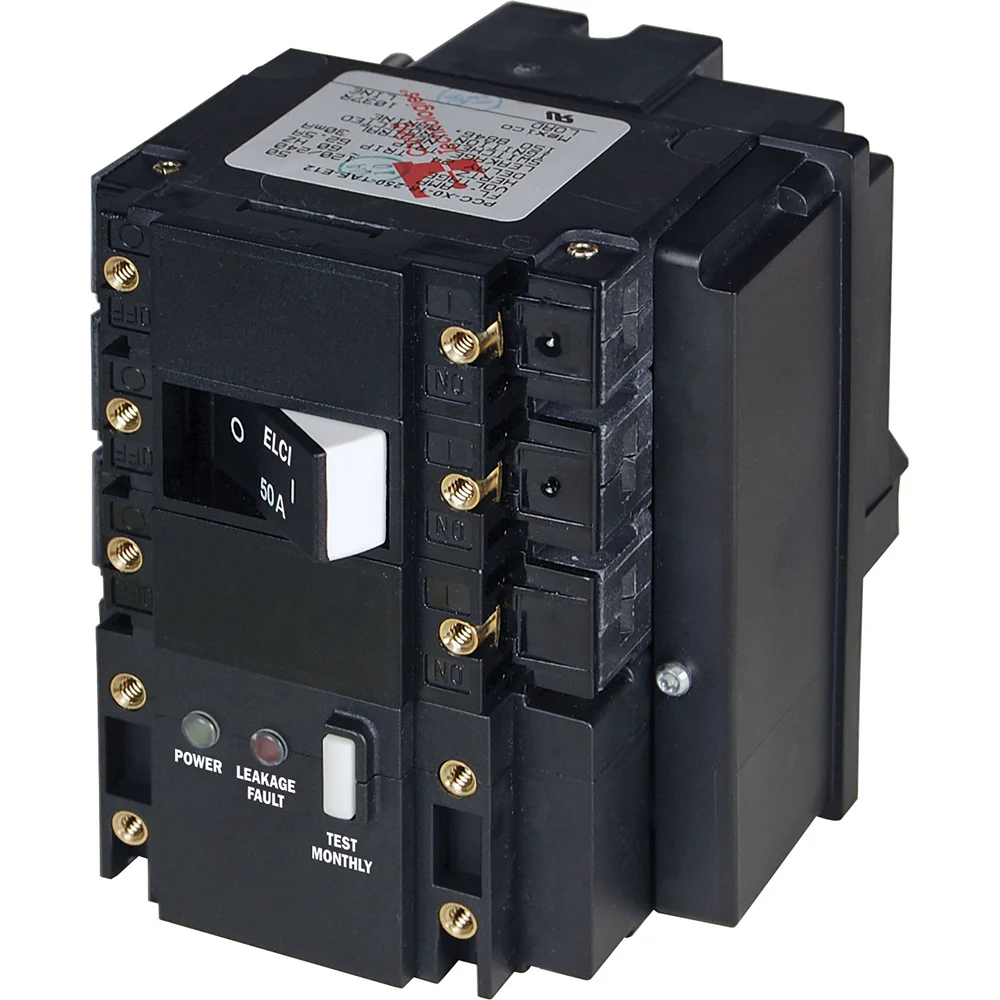

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]
Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]
Description
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mountāinstalled in a power distribution panel
Product Specifications
Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104] Product Specifications
| Specifications | Details |
|---|---|
| Amperage | 50A |
| Actuator Style | Flat Rocker (resists accidental switching by being flush in ON position) |
| Poles | 3 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole / 240V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic ā Trip Free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35Ā°C |
| Maximum Operating Temperature | 66Ā°C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10,000 |
| Weight | 0.85 lb (0.39 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
