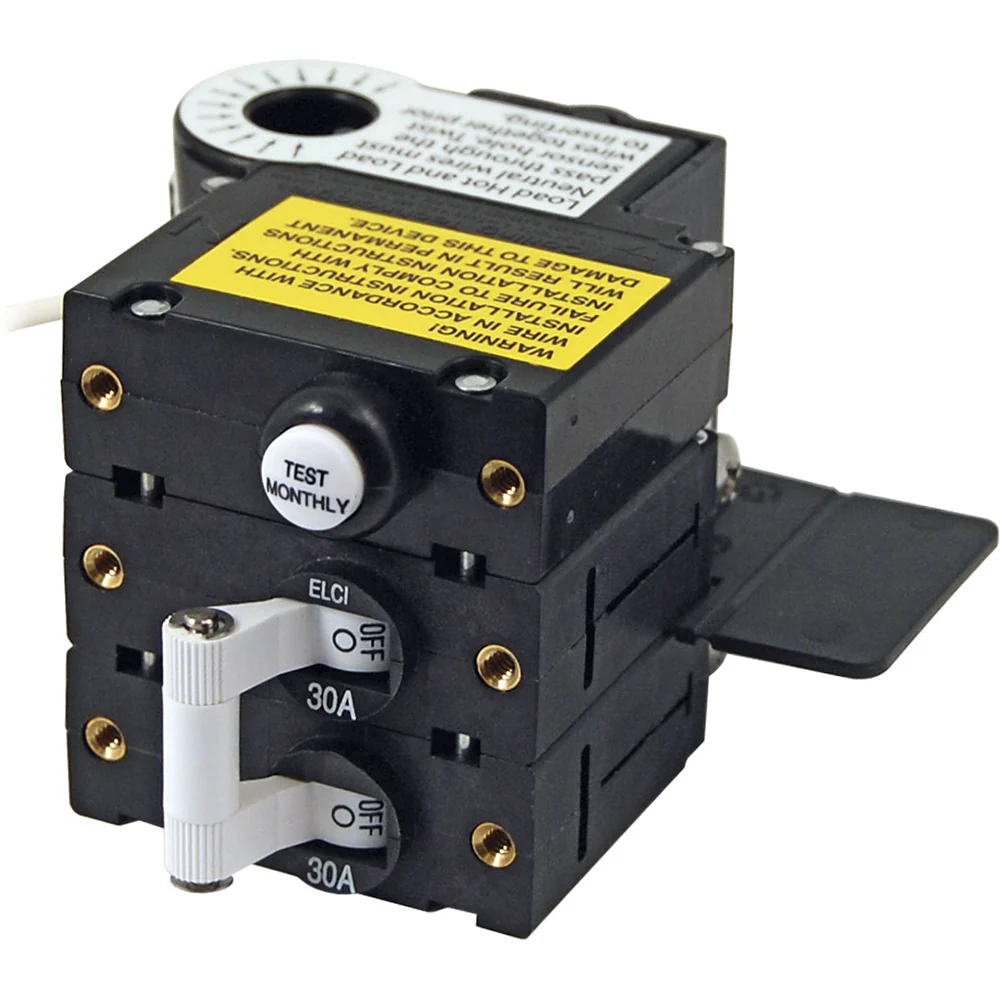

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]
Description
The Blue Sea A-Series ELCI Main Circuit Breaker provides reliable ground fault and overload protection for AC shore power systems. Designed as a double pole breaker, it safeguards against leakage currents, helping prevent electrical shock hazards and ensuring compliance with safety standards. Built with a trip-free magnetic hydraulic design, this breaker delivers dependable operation in marine environments.
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Product Specifications
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100] Product Specifications
| Attribute | Details |
|---|---|
| Amperage | 30A |
| Color | White |
| Actuator Style | Toggle (lever-operated) |
| Poles | 2 |
| Ignition Protected | Yes – safe for explosive environments |
| Maximum Voltage | 240V AC (120V AC per pole) |
| Circuit Breaker Type | Magnetic Hydraulic – Trip Free |
| Interrupt Capacity | 5000A |
| Leakage Trip Amps | 30mA |
| Minimum Operating Temp. | -35° C |
| Maximum Operating Temp. | 65° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10,000 |
| Weight | 0.85 lb (0.39 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
