Description

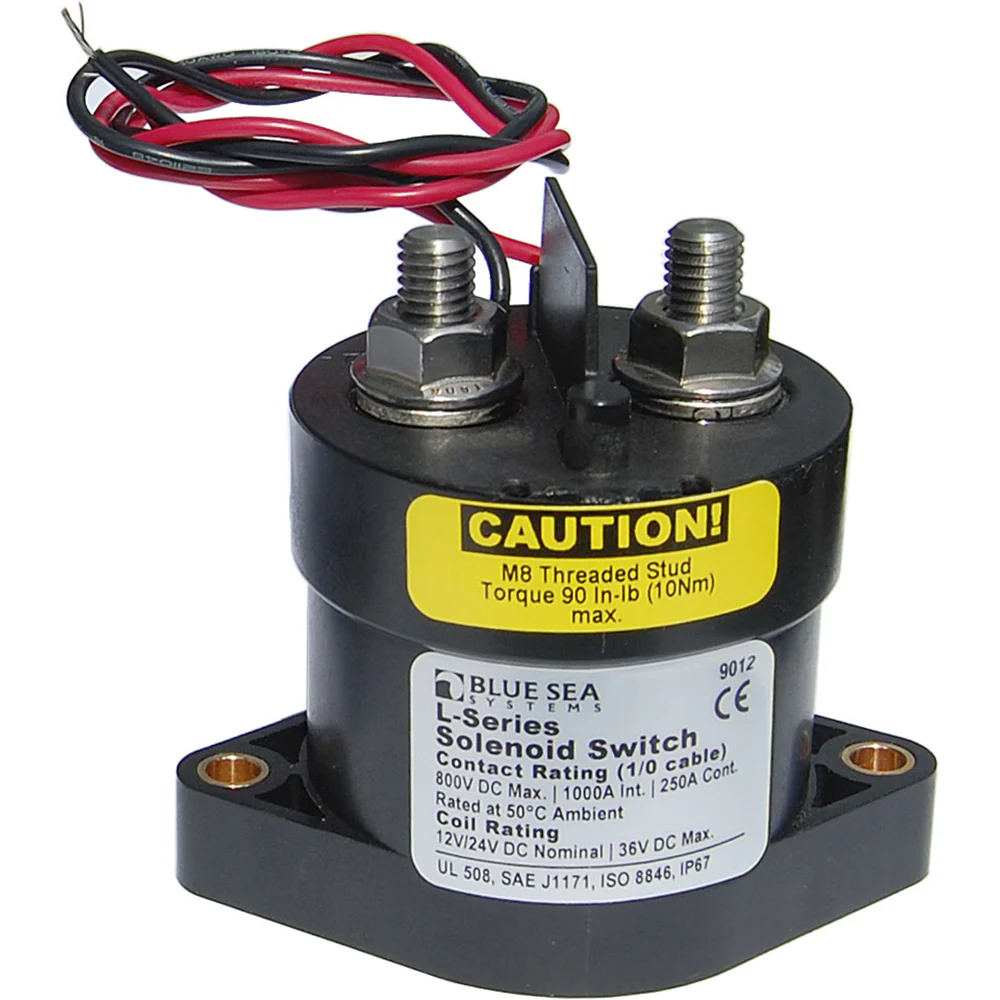

Solenoid L-Series - 250A 12/24V
Features:
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- Activated by an ON-OFF switch mounted anywhere
- Integrated coil control minimizes heating and amperage draw
- 450 Amp Class
- Designed for 12 or 24 Volt systems
- Ignition protected -- safe for installation aboard gasoline-powered boats
- Activated by a low amperage ON-OFF switch mounted anywhere
Product Specifications
Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012] Product Specifications
| Specification | Value |
|---|---|
| Control Circuit Voltage | 9–36V DC (12/24V nominal) |
| Control Circuit Connection | 20 AWG Tinned Wire |
| Contact Voltage | 800V DC |
| Amperage Operating Current (continuous) | 0.13A @ 12V / 0.07A @ 24V |
| Amperage Operating Current (changing state) | 3.6A |
| Terminal Stud | M8 (accepts 5/16" terminals) |
| Terminal Stud Torque | 90 in-lb (10.17 Nm) max |
| Continuous Rating | 250A (1/0 wire) / 300A (2/0 wire) / 400A (4/0 wire) / 450A (2 × 2/0 wire) |
| Intermittent Rating (5 min) | 275A (1/0 wire) / 400A (2/0 wire) / 500A (4/0 wire) / 600A (2 × 2/0 wire) |
| Cranking Rating (30 sec) | 1,000A with 1/0 cable |
| Contact Form | SPST-NO |
| Inrush Rating (0.25 sec, 10 repeats) | 2,000A |
| Mounting Screw | #10 or M5 |
| Stud Material | Stainless Steel |
| Terminal Stud Length | 0.66 in (16.76 mm) |
| Coil Function | Normally Open |
| Mounting | #10 |
| Switching Cycles | 1,000,000 |
| Continuous Amperage | 450A |
| Box Dimensions | 3"H × 4"W × 7"L, WT: 1 lb |
| UPC | 632085090128 |
