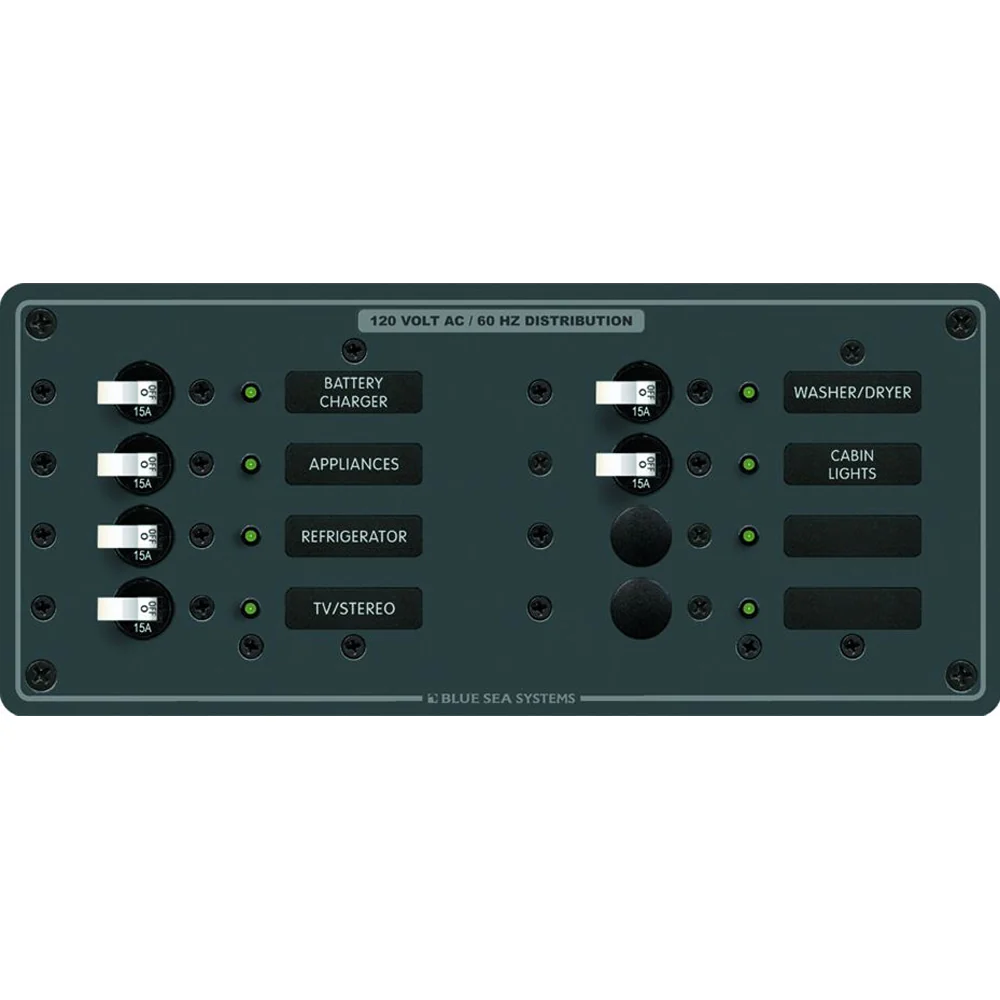

Blue Sea 8411 AC 8 Position [8411]
Blue Sea 8411 AC 8 Position [8411]
Description
AC 8 Position
Features:
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 100 Amperes
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual labels available
Product Specifications
Blue Sea 8411 AC 8 Position [8411] Product Specifications
| Specification | Value |
|---|---|
| Positions | 8 |
| Nominal Voltage | 120V AC |
| Height | 4.50 in (114.3 mm) |
| Width | 10.50 in (266.7 mm) |
| Weight | 1.90 lb (0.86 kg) |
| AC/DC | AC |
| Box Dimensions | 4"H x 9"W x 12"L |
| UPC | 632085084110 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
