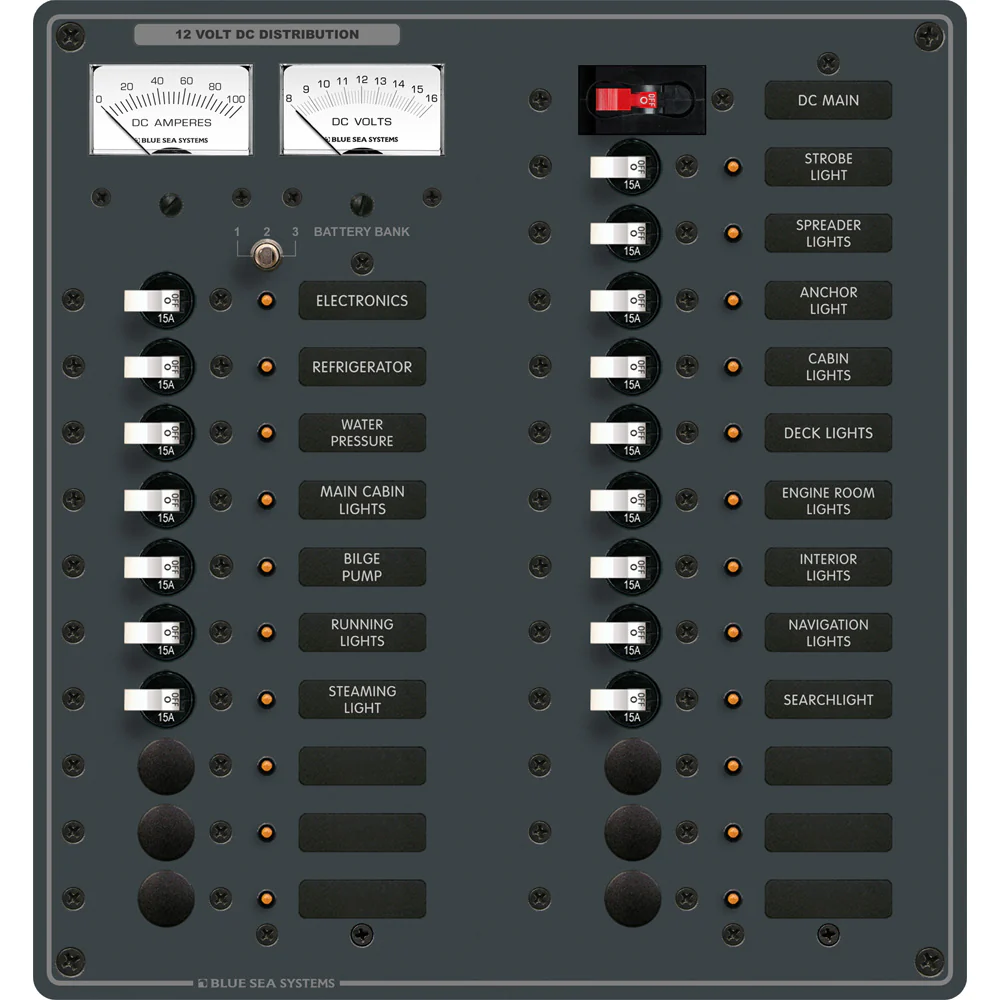

Blue Sea 8380 DC Main + 22 Position [8380]
Blue Sea 8380 DC Main + 22 Position [8380]
Description
DC Main + 22 Positions, White Toggle
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Product Specifications
Blue Sea 8380 DC Main + 22 Position [8380] Product Specifications
| Specification | Value |
|---|---|
| Positions | 22 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 100A |
| Height | 11.25 in (285.75 mm) |
| Width | 10.50 in (266.7 mm) |
| Depth | 3.00 in (76.2 mm) |
| Weight | 8.25 lb (3.74 kg) |
| AC/DC | DC |
| Box Dimensions | 7"H x 14"W x 22"L WT: 8.3 lbs |
| UPC | 632085083809 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
