Blue Sea 8371 Water Resistant Panel - 8 Position - Black - Horizontal Mount [8371]
Blue Sea 8371 Water Resistant Panel - 8 Position - Black - Horizontal Mount [8371]
Description

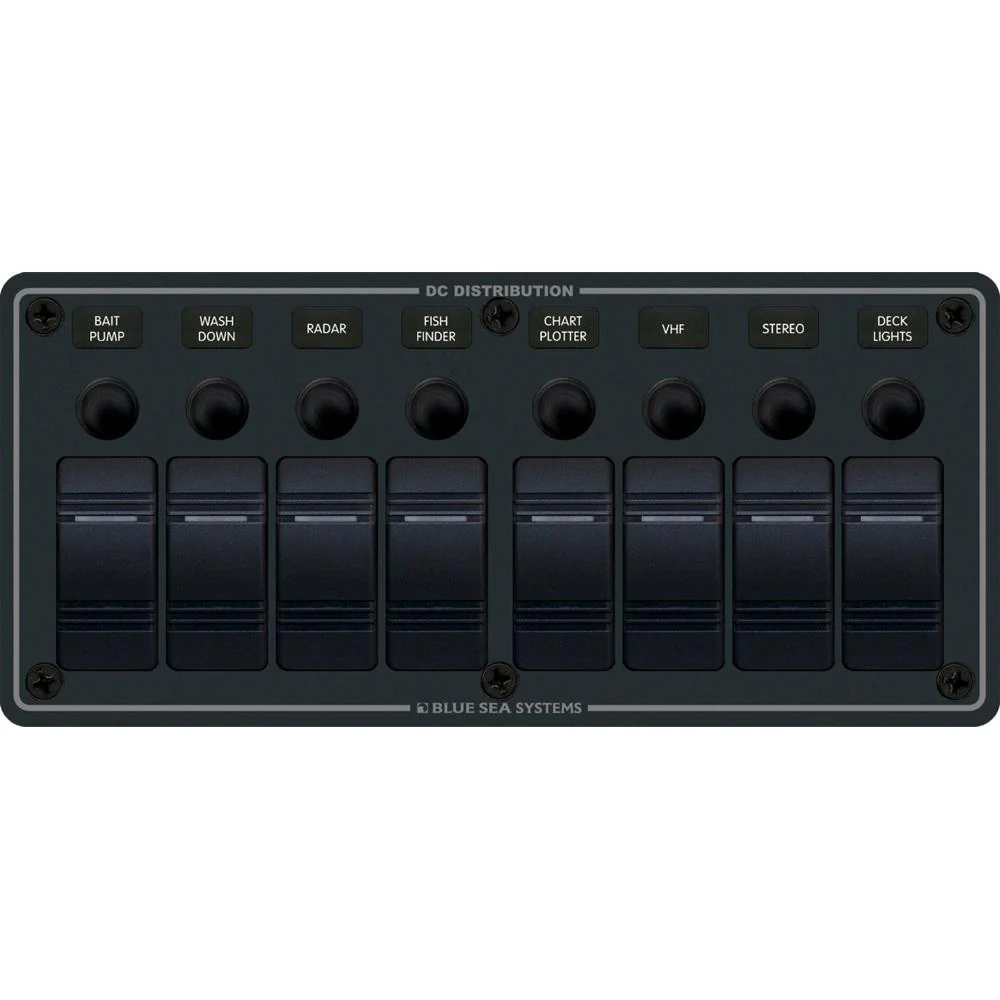

Water Resistant Circuit Breaker Panel 8 Position-Black
Features:
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66—Protected against powerful water jets
- Ignition protected—safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
Product Specifications
Blue Sea 8371 Water Resistant Panel - 8 Position - Black - Horizontal Mount [8371] Product Specifications
| Specification | Value |
|---|---|
| Weatherproof | Water Resistant |
| Positions | 8 |
| Panel Cumulative Rating | 90A |
| Switch Rating | 20A @ 12V DC / 15A @ 24V DC |
| Height | 4.25 in (107.95 mm) |
| Width | 9.37 in (238 mm) |
| Depth | 3.25 in (82.55 mm) |
| Weight | 1.70 lb (0.77 kg) |
| AC/DC | DC |
| Box Dimensions | 5"H x 9"W x 12"L |
| UPC | 632085083717 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
