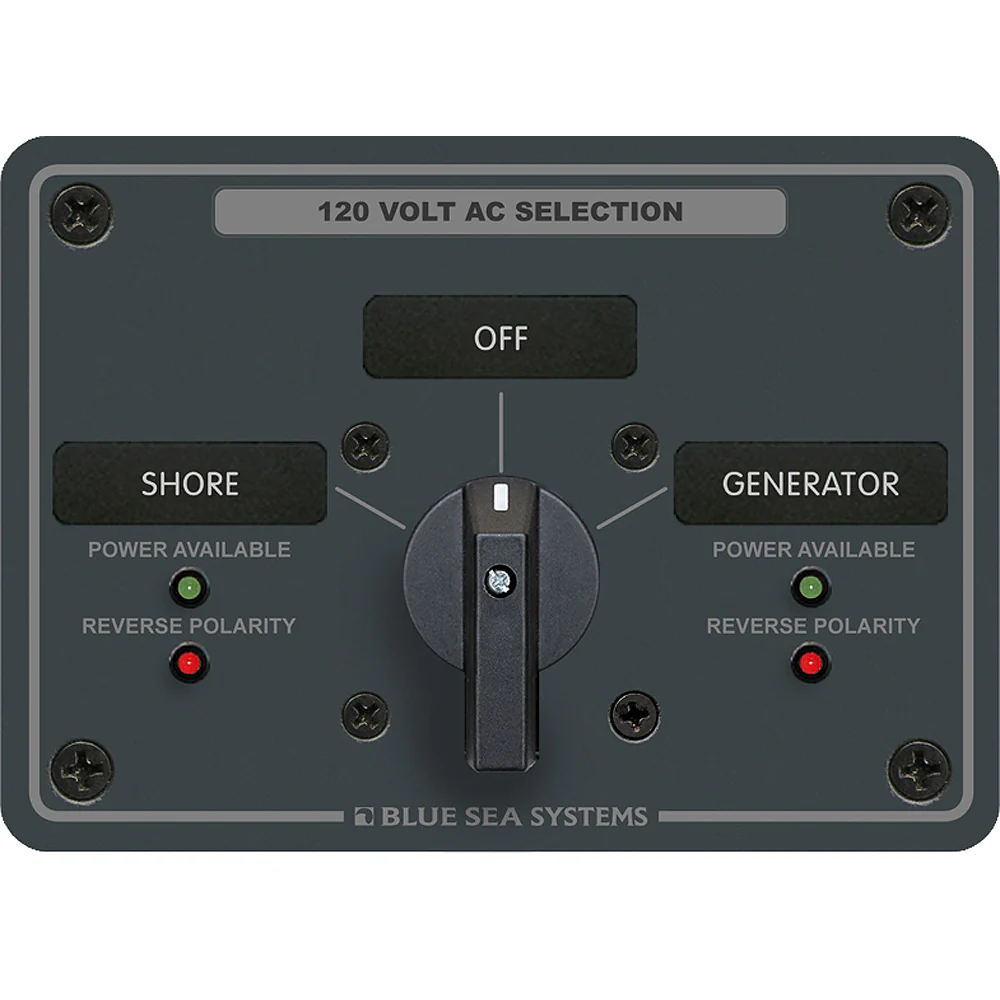

Blue Sea 8367 AC Rotary Switch Panel 30 Ampere 2 Positions + OFF, 2 Pole [8367]
Blue Sea 8367 AC Rotary Switch Panel 30 Ampere 2 Positions + OFF, 2 Pole [8367]
Description
AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 2 Pole
Features:
Ā
- Switches 2 - 120 Volt AC sources
- Includes 9011 heavy duty industrial rated switch
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Switches AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Includes heavy duty industrial-rated switch
- Red reverse polarity LED indicators
- Green power-available LED indicators
Product Specifications
Blue Sea 8367 AC Rotary Switch Panel 30 Ampere 2 Positions + OFF, 2 Pole [8367] Product Specifications
| Specification | Value |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 120V AC |
| Poles | 2 |
| Maximum Amperage | 30A |
| Source In | 2 |
| Height | 3.75 in (95.25 mm) |
| Width | 5.25 in (133.35 mm) |
| Depth | 1.91 in (48.51 mm) |
| Weight | 0.65 lb (0.29 kg) |
| AC/DC | AC |
| Box Dimensions | 5"H x 7"W x 9"L |
| UPC | 632085083670 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
