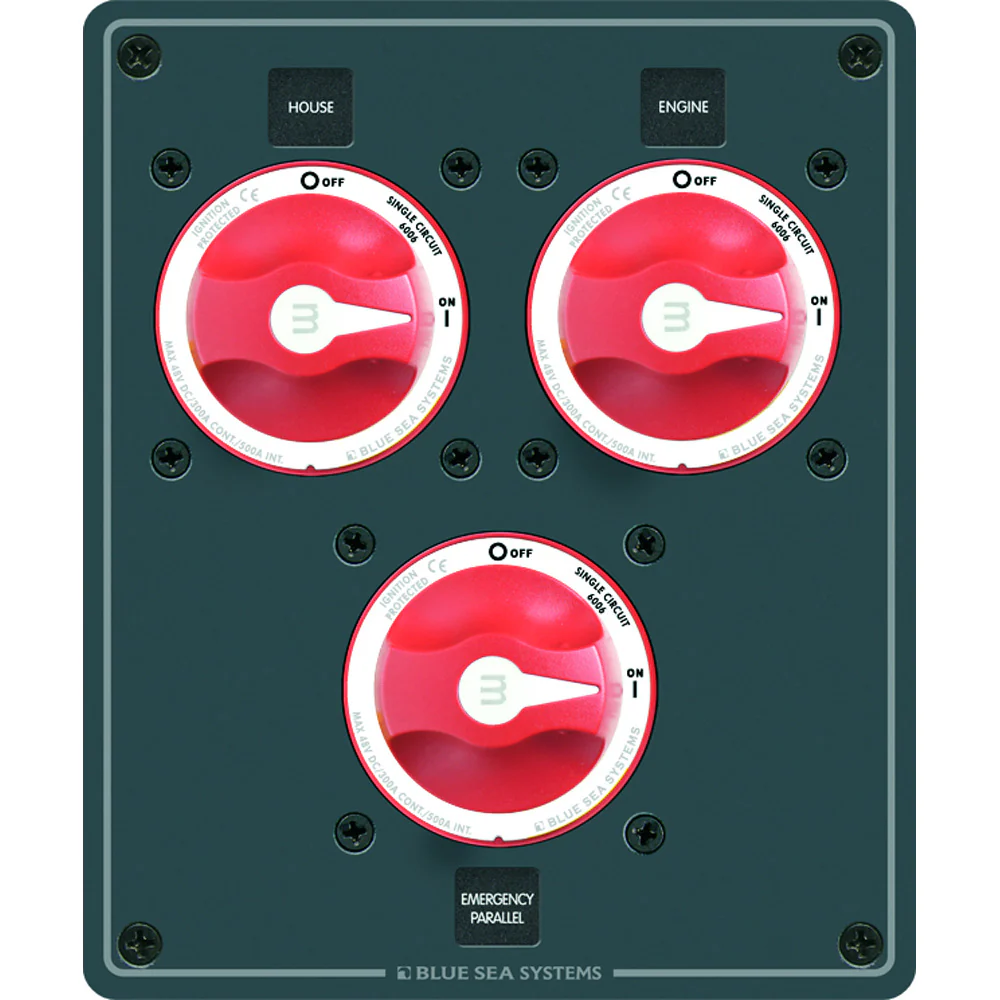

Blue Sea 8280 Single Circuit 3 On/Off [8280]
Blue Sea 8280 Single Circuit 3 On/Off [8280]
Description
Isolates the Engine circuit from the House circuit. Allows emergency cross connect between isolated battery banks. Protects electronics from sags and spikes caused by engine cranking.
Features:
- CE Marked
- Enables a failed House or Start battery bank to be isolated from the electrical system and both House and Start loads to be operated from the remaining battery bank
- Simplifies battery switch operation
- Isolates Start circuit from House circuit
- Protects electronics from sags and spikes caused by engine cranking
- Ignition protected - Safe for installation aboard gasoline-powered boats
Product Specifications
Blue Sea 8280 Single Circuit 3 On/Off [8280] Product Specifications
| Specification | Value |
|---|---|
| Maximum Voltage | 48V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Height | 7.50 in (190.5 mm) |
| Width | 6.25 in (158.75 mm) |
| Depth | 2.25 in (57.15 mm) |
| Weight | 3.20 lb (1.45 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
Original: $226.99
-65%$226.99
$79.45Product Information
