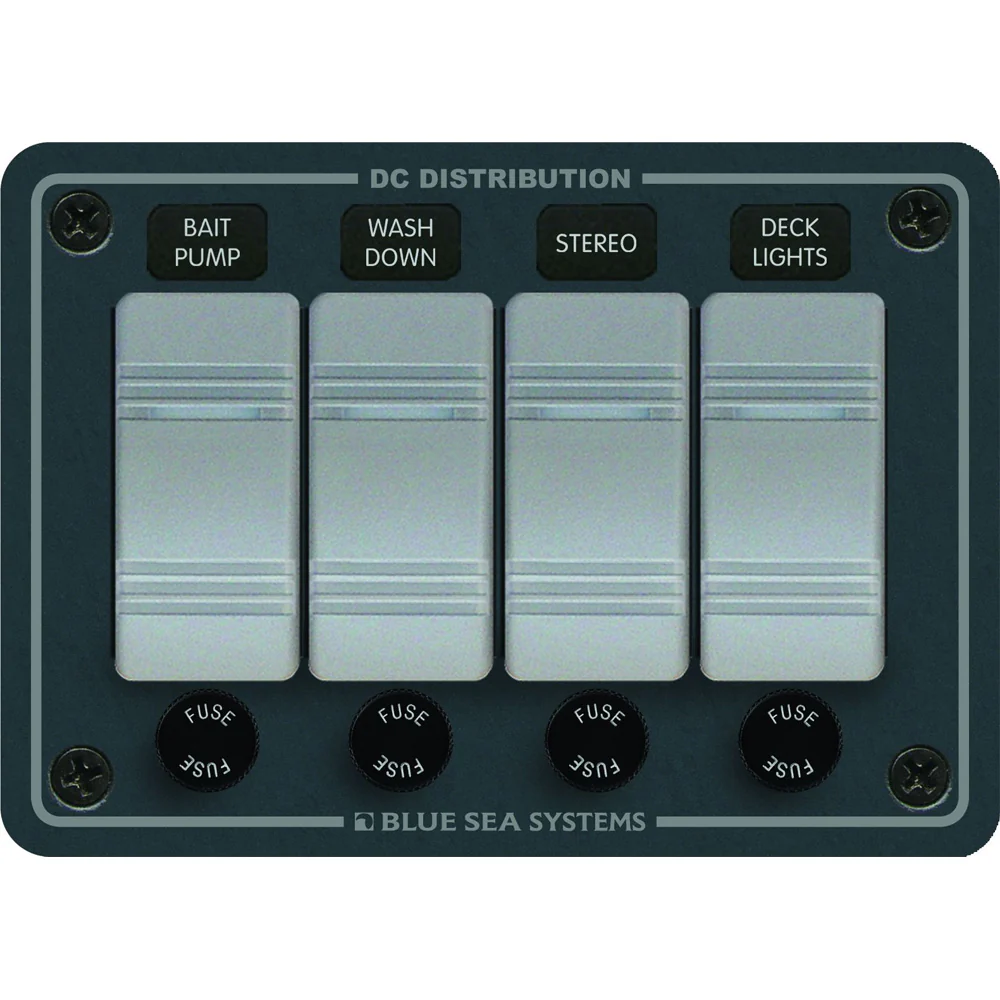

Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]
Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]
Description
Features:
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
Included:
- (4) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8214 Black 60 Label Set
- (4) 8230 Contura Switch SPST Gray - Off-On
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262] Product Specifications
| Specifications | Value |
|---|---|
| Weatherproof | Water Resistant |
| Positions | 4 |
| Nominal Voltage | 12V DC / 24V DC |
| Panel Cumulative Rating | 45A |
| Switch Rating | 20A @ 12V DC / 15A @ 24V DC |
| Height | 3.75 in (95.25 mm) |
| Width | 5.25 in (133.35 mm) |
| Depth | 3.00 in (76.2 mm) |
| Max Breaker Quantity | 4 |
| AC/DC | DC |
| Weight | 0.75 lb (0.34 kg) |
| Box Dimensions | 5"H x 7"W x 9"L |
| UPC | 632085082628 |
Product Manual
Owner's Manual (pdf)
Instructions
Cutout Templates
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
