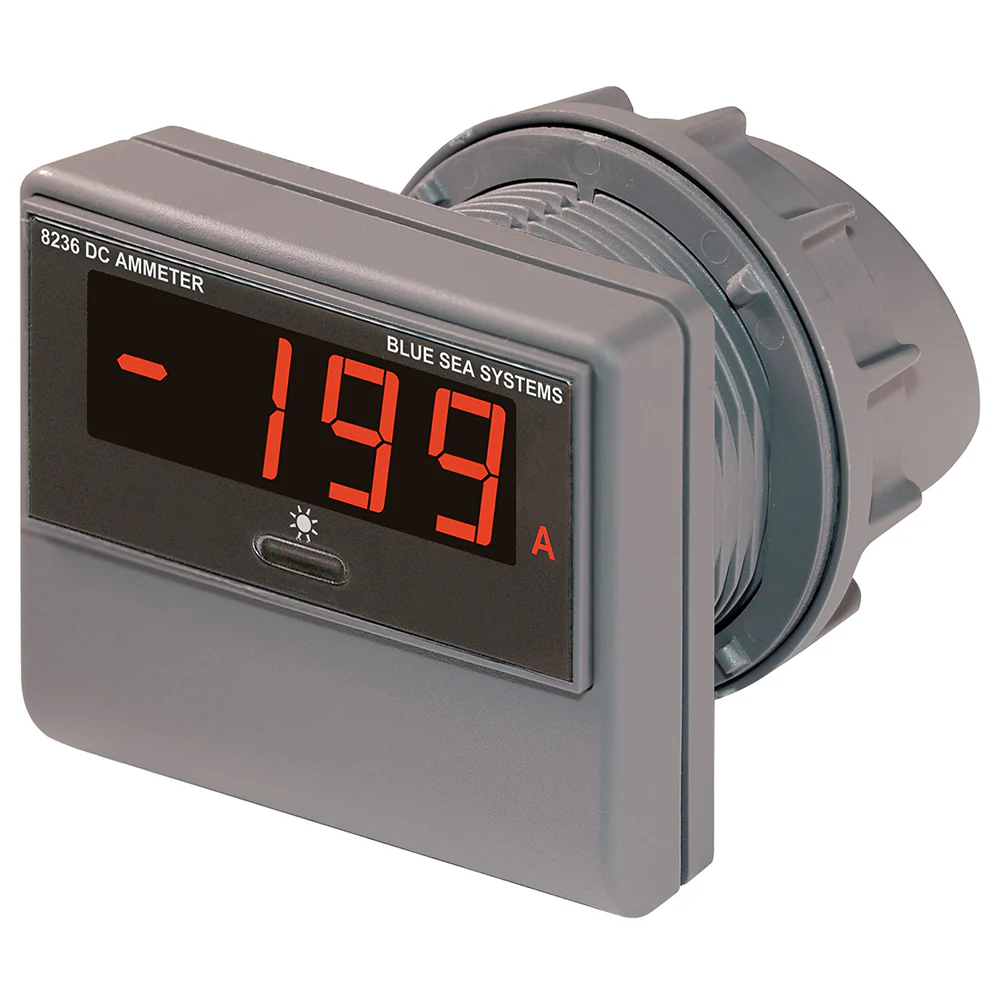

Blue Sea 8236 DC Digital Ammeter [8236]
Blue Sea 8236 DC Digital Ammeter [8236]
Description
Features:
- Displays amperage from -500 to +500 Amps
- 3 levels of display brightness
- Splashproof front
- Manual sleep mode blanks display for power conservation
- Standard meter operates in negative side of circuit only. Shunt Shifter required for positive side installation such as alternators
- Includes 500 Amp shunt
- Applicable for 12, 24, 32, 36, and 42 Volt DC systems
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8236 DC Digital Ammeter [8236] Product Specifications
| Specification | Value |
|---|---|
| Meter | Current |
| Function | Up to 500A |
| Input Voltage | 8ā32V DC (Measurement shunt must be installed in a power circuit where the shunt potential is the same as the negative of the meter supply) |
| Alarms | High and low voltage |
| Maximum Power Consumption | 1 Watt (Variable with voltage, display intensity, segments illuminated, and sleep mode) |
| Minimum Power Consumption | 0.60 Watt (Variable with sleep mode) |
| Sleep Mode | Manual |
| Weight | 1.11 lb (0.5 kg) |
Product Manual
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
