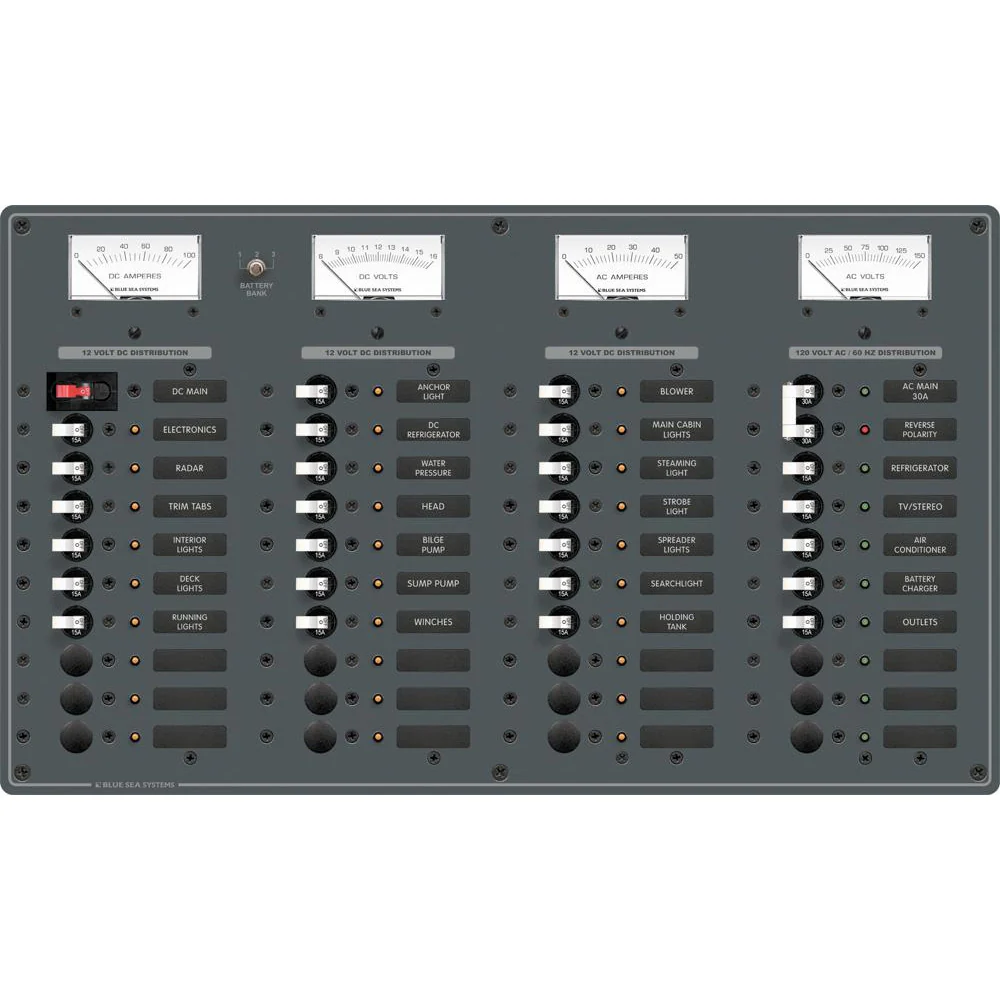

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]
Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel Ā (White Switches) [8095]
Description
PN:Ā Ā Ā 8095
White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Red reverse polarity indicating LED
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel Ā (White Switches) [8095] Product Specifications
| Specification | Value |
|---|---|
| Positions | 8 AC / 29 DC |
| Nominal Voltage | 120V AC / 12V DC |
| Height | 11.50 in (292.1 mm) |
| Width | 19.50 in (495.3 mm) |
| Depth | 3.00 in (76.2 mm) |
| Weight | 12.45 lb (5.65 kg) |
| AC Circuit Breakers | (1) 30A ā (5) 15A |
| DC Circuit Breakers | (1) 100A ā (20) 15A |
| Max Breaker Quantity | 8 AC / 29 DC |
| AC/DC | Both |
| Voltage | 120V / 12V |
| Box Dimensions | 7"H x 15"W x 22"L WT: 8 lbs |
| UPC | 632085080952 |
Product Manual
Quick Guide (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
