Description

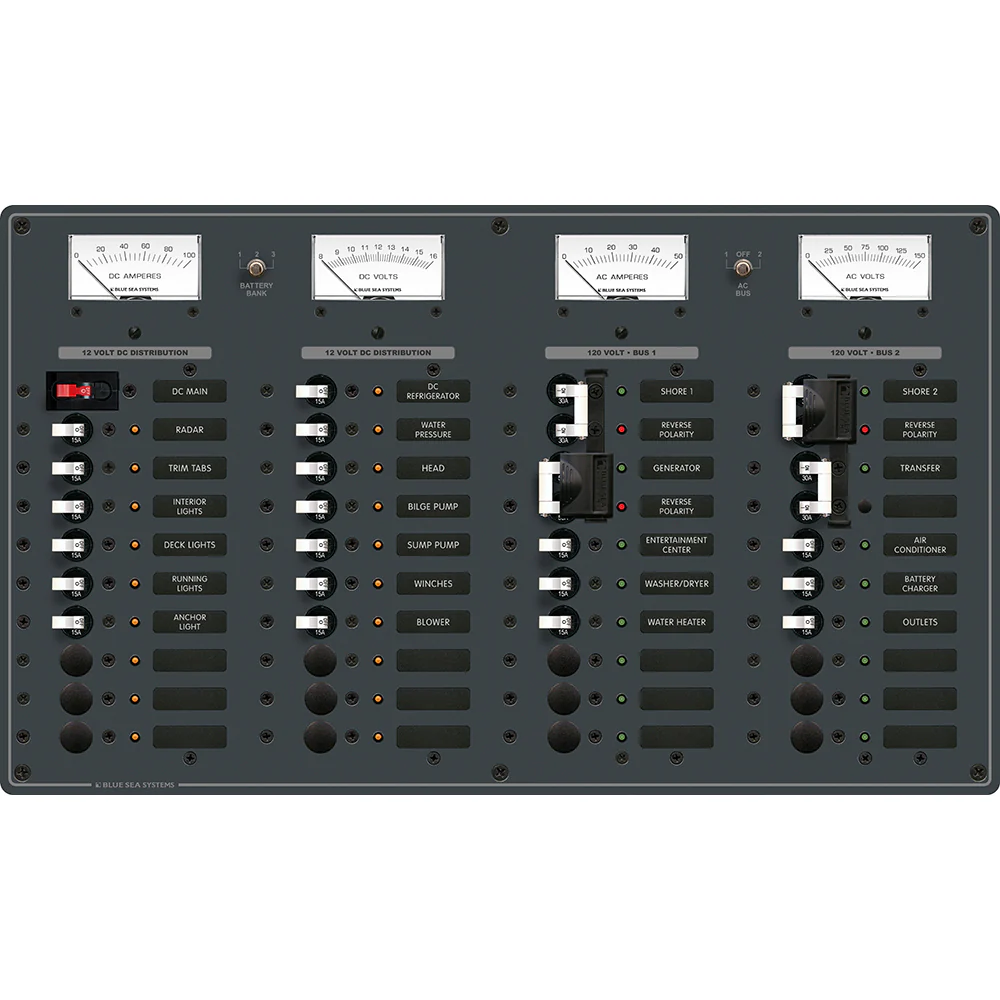

Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086] Product Specifications
| Specifications | Value |
|---|---|
| AC Positions | Source Selectors + 12 |
| DC Positions | Main + 19 |
| Source Selection | 3 AC |
| Nominal Voltage | 120V AC / 12V DC |
| Circuit Breakers | (3) 30A, (1) 50A, (6) 15A AC / (1) 100A, (13) 15A DC |
| Height | 11.50 in (292.1 mm) |
| Width | 19.50 in (495.3 mm) |
| Depth | 3.00 in (76.2 mm) |
| Weight | 12.45 lb (5.65 kg) |
| Max Breaker Quantity | 12 AC / 19 DC |
| AC/DC | Both |
| Voltage | 120V / 12V |
| Box Dimensions | 6"H x 15"W x 23"L |
| UPC | 632085080860 |
