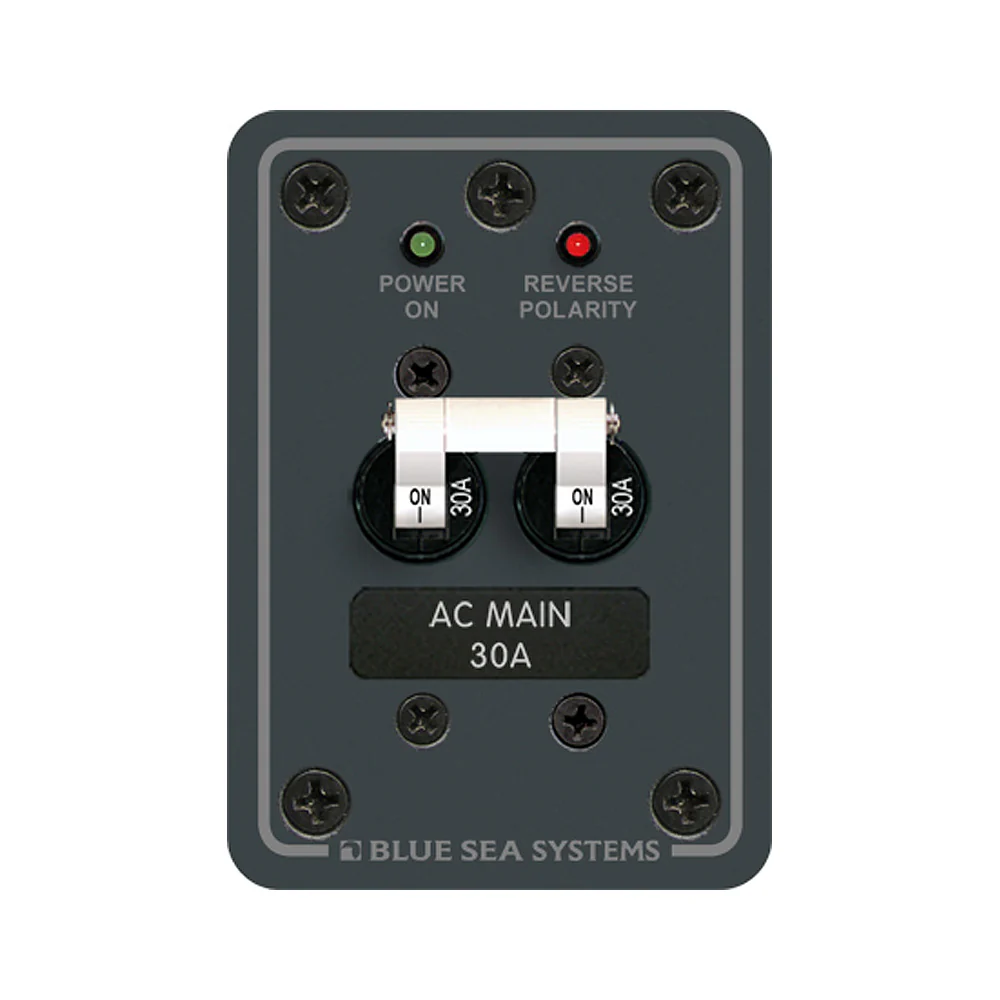

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]
Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]
Description
Features:
- Red reverse polarity indicating LED
- Safety ground screw on panel back
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Included:
- (1) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077] Product Specifications
| Specifications | Value |
|---|---|
| Nominal Voltage | 120V AC |
| Maximum Voltage | 277V AC / 65V DC |
| AC/DC | AC |
| Max Breaker Quantity | 1 |
| Voltage | 120V |
| Box Dimensions | 3"H x 4"W x 7"L |
| Height | 3.75" (95.25 mm) |
| Width | 2.63" (66.8 mm) |
| Panel Material | Heavy 1/8" aluminum 5052 alloy |
| Final Panel Finish | 2-part Polyurethane slate gray finish |
| Primary Finish | Mil-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance |
| Weight | 0.51 lb (0.23 kg) |
| UPC | 632085000004 |
Product Manual
Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
