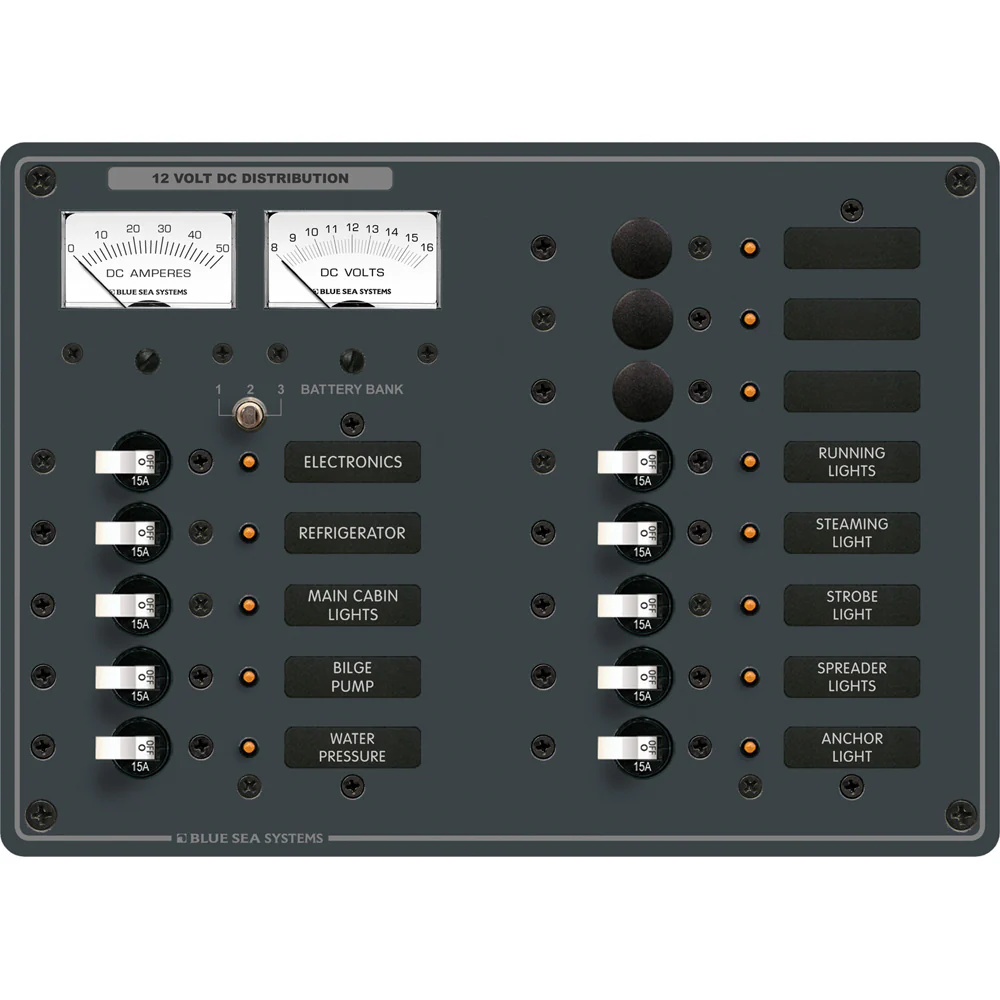

Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches [8068]
Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches [8068]
Description
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- 10 15A Single Pole Circuit Breakers
- Toggle Branch Circuit Breaker Panel
Included:
- (10) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16v DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches [8068] Product Specifications
| Specifications | Value |
|---|---|
| Positions | 13 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 50A (dependent on fuse and wire sizing) |
| Height | 7.50 in (190.5 mm) |
| Width | 10.50 in (266.7 mm) |
| Depth | 3.00 in (76.2 mm) |
| Weight | 4.20 lb (1.91 kg) |
| Max Breaker Quantity | 13 |
| AC/DC | DC |
| Voltage | 12V |
| Box Dimensions | 5"H x 10"W x 13"L |
| Box Weight | 4.2 lb |
| UPC | 632085080686 |
Product Manual
Quick Guide (pdf)
Owner's Manual (pdf)
Cutout Templates
Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
