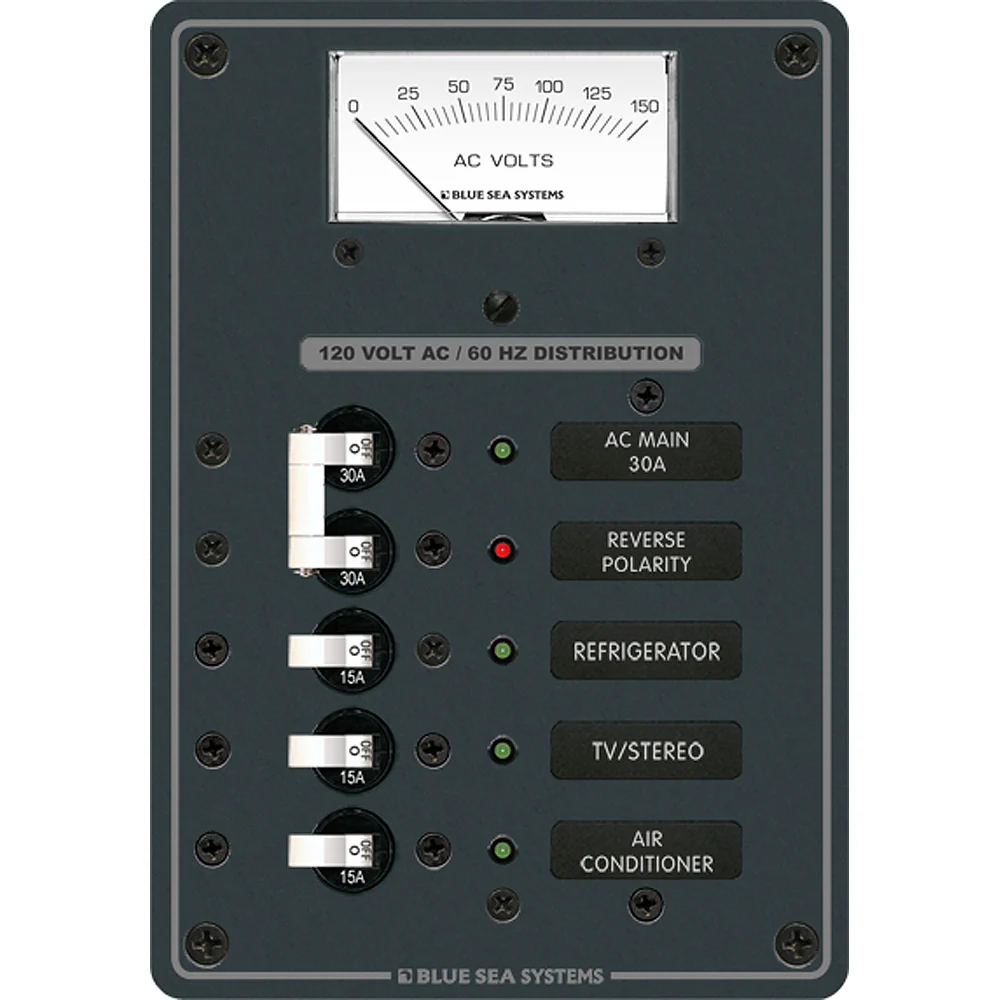

Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches [8043]
Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches [8043]
Description
Features:
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Included:
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (4) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
- (1) 9353 AC Voltmeter - 0 to 150v AC (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches [8043] Product Specifications
| Specifications | Value |
|---|---|
| Positions | 3 |
| Nominal Voltage | 120V AC |
| AC/DC | AC |
| Max Breaker Quantity | 3 |
| Voltage | 120V |
| Box Dimensions | 7"H x 10"W x 10"L |
| Height | 7.50" (190.5 mm) |
| Width | 5.25" (133.35 mm) |
| Weight | 2.00 lb (0.91 kg) |
| UPC | 632085080433 |
Product Manual
Owner's Manual (pdf)
Cutout Templates
Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
