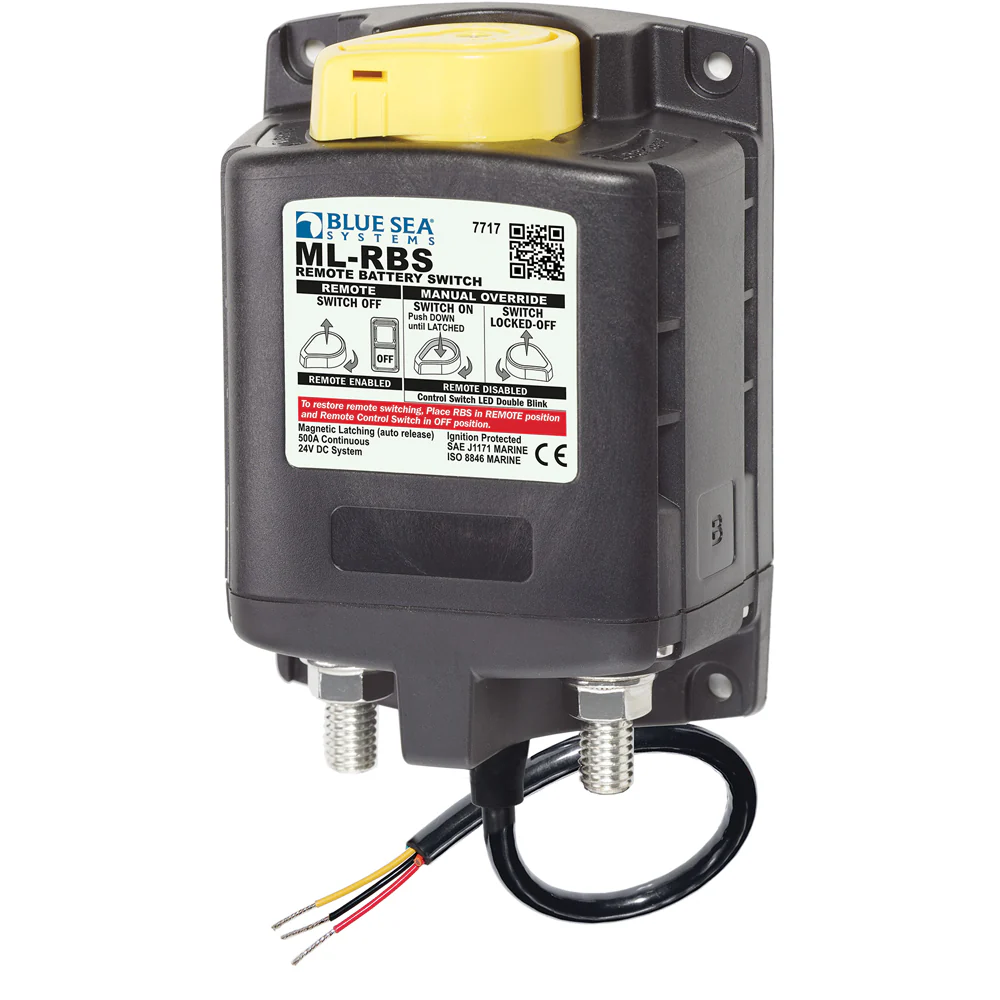

Blue Sea 7717 ML-RBS Remote Battery Switch w/ Manual Control Auto-Release - 24V [7717]
Blue Sea 7717 ML-RBS Remote Battery Switch w/ Manual Control Auto-Release - 24V [7717]
Description
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Features:

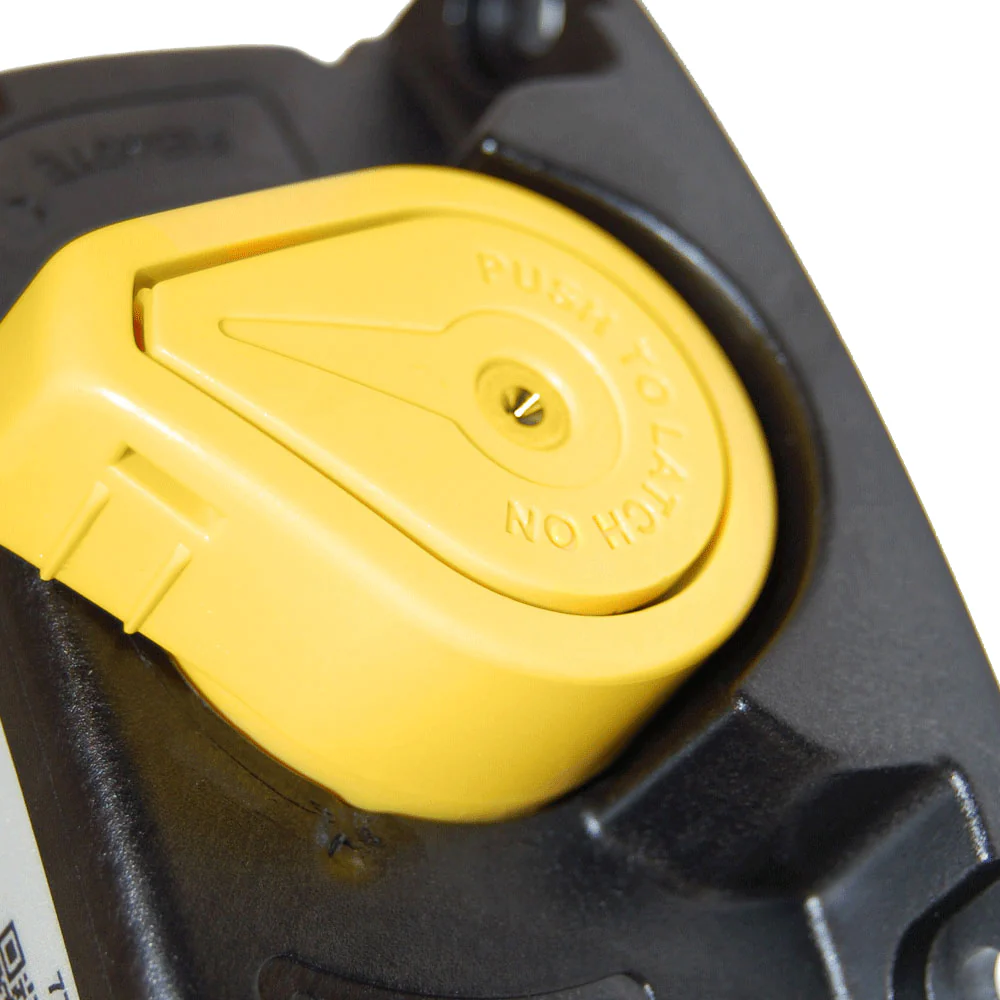

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/ 8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
Product Specifications
Blue Sea 7717 ML-RBS Remote Battery Switch w/ Manual Control Auto-Release - 24V [7717] Product Specifications
| Specification | Value |
|---|---|
| Control Circuit Voltage | 20.2 to 32.9V DC |
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 24V DC |
| Manual Control | Yes |
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA (OFF) / 13mA (ON) |
| Amperage Operating Current When Changing State | <4A (40 ms) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating (10 sec) | 2500A |
| Cranking Rating (1 min) | 1100A |
| Minimum Operating Temperature | -10Ā°C |
| Maximum Operating Temperature | 50Ā°C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC (10,000 Cycles) |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Switching Cycles | 100,000 |
| Terminal Ring Diameter Clearance | 1.18" (29.97 mm) |
| Terminal Stud Length | 0.875" (22.23 mm) |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Lockable | Yes |
| Continuous Amperage | 500A |
| Box Dimensions | 3"H x 7"W x 12"L |
| Weight | 2.07 lb (0.94 kg) |
| UPC | 632085077143 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Brochure (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
