Blue Sea 7702 ML-Series Remote Battery Switch w/ Manual Control 24V DC [7702]
Blue Sea 7702 ML-Series Remote Battery Switch w/ Manual Control 24V DC [7702]
Description

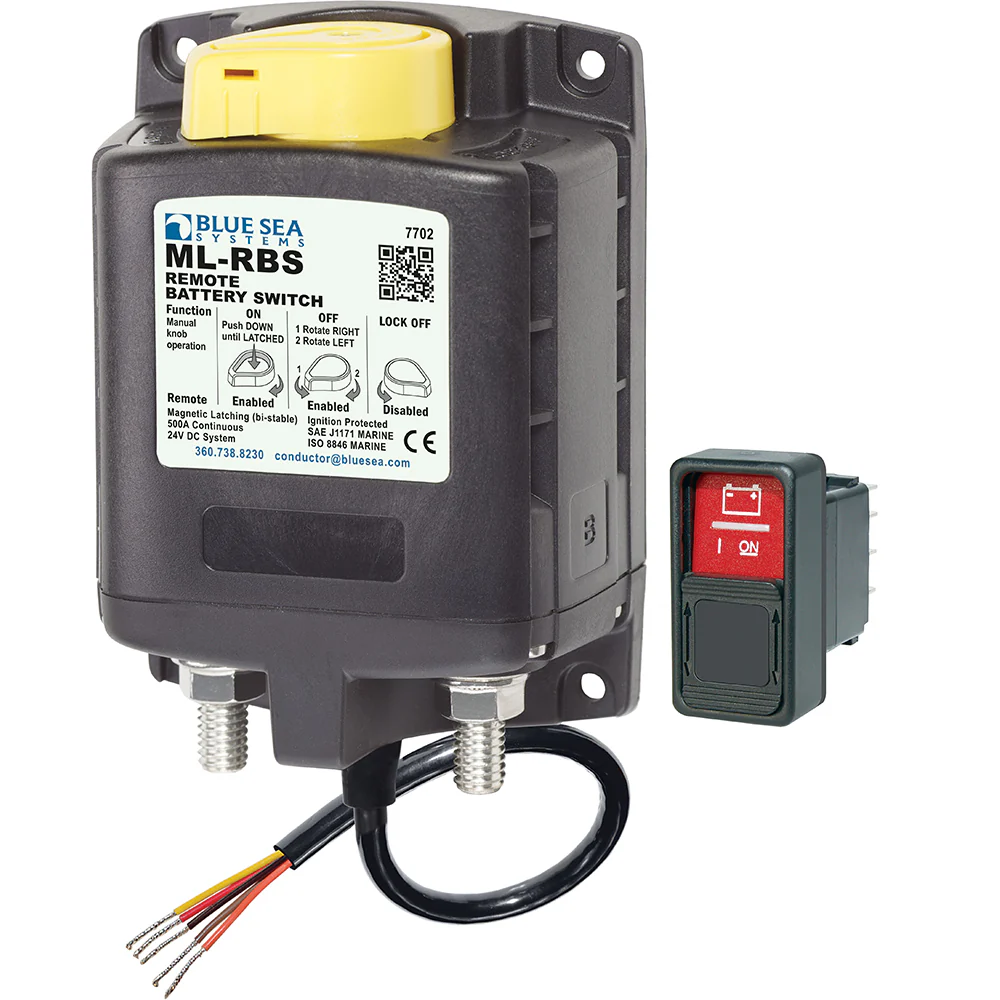

ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A
Features:
- 500 Ampere continuous rating for use as a remote battery switch for inboard gasoline or diesel engines, reducing long cable runs
- Magnetic latch only draws current when changing state of switch, drawing no current in "ON" or "OFF" state
- Silver alloy contacts provides high reliability for switching live loads

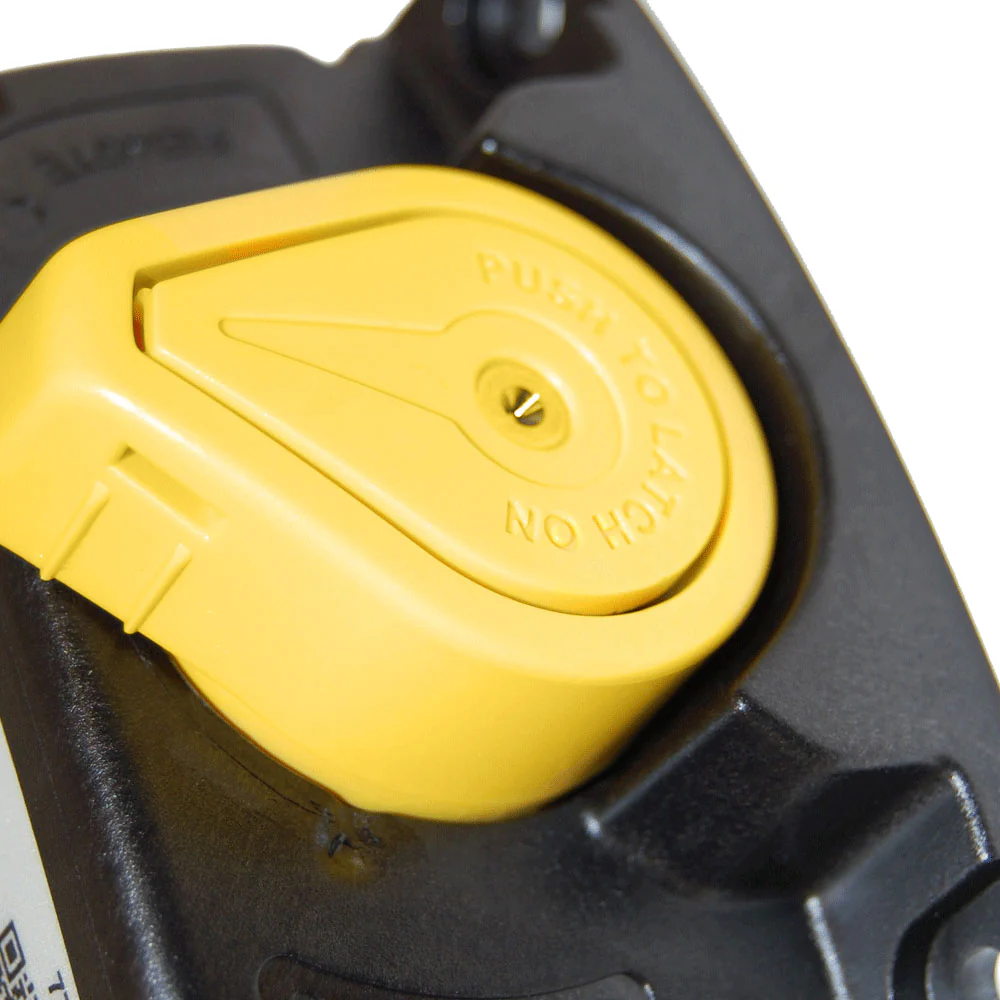

- Optional manual switch provides an added level of safety allowing control with or without power, and offering lockout capability for servicing
- 3/8" copper studs, using Blue Sea Systems superior one piece technology, suitable for 300 Amperes continuous rating and large cable connections
Product Specifications
Blue Sea 7702 ML-Series Remote Battery Switch w/ Manual Control 24V DC [7702] Product Specifications
| Specification | Value |
|---|---|
| Control Circuit Voltage | 18ā32V DC |
| Control Circuit Connection | Tinned wires |
| Nominal Voltage | 24V DC |
| Manual Control | Yes |
| Coil Function | Bi-Stable |
| Mounting | #10 screws |
| Amperage Operating Current | 0 mA @ 25Ā°C nominal VDC |
| Amperage Operating Current when changing state | <4A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Starting Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10Ā°C |
| Maximum Operating Temperature | 60Ā°C |
| Cable Size to Meet Ratings | 2 Ć 4/0 AWG |
| Live Current Switching | 300A @ 12V DC, 10,000 cycles |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 cycles |
| Switching Rating | 25A |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) |
| Terminal Stud Length | 0.875 in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 2.09 lb (0.95 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Brochure (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
Original: $215.99
-65%$215.99
$75.60Product Information
