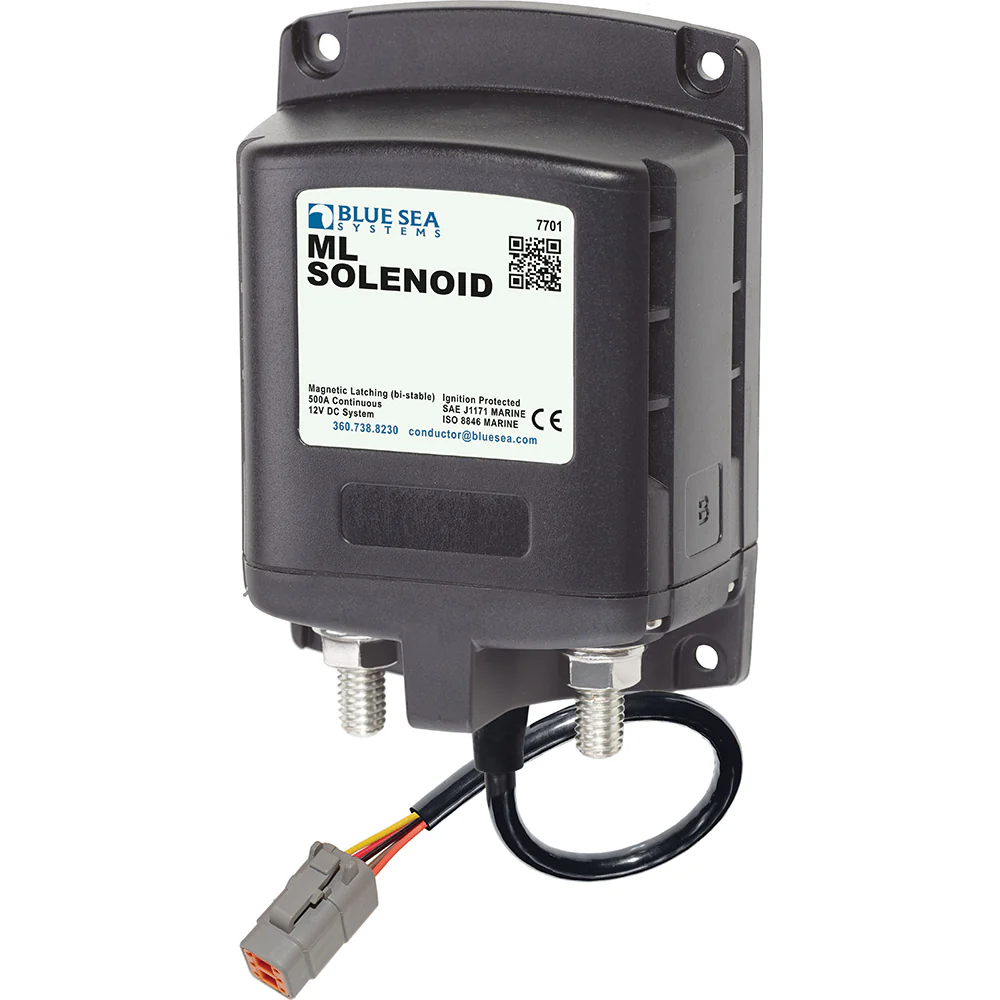

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]
Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
Features:
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk
Product Specifications
Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100] Product Specifications
| Specifications | Details |
|---|---|
| Control Circuit Connection | Deutsch DTM / Amphenol ATM (retail units: tinned wires) |
| Nominal Voltage | 12V DC |
| Manual Control | No |
| Coil Function | Bi-Stable ā can be controlled with SPST/SPDT switch for normally open relay |
| Mounting | #10 |
| Amperage Operating Current (Continuous) | 0A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating (5 min) | 700A |
| Cable Size to Meet Ratings | 2 Ć 4/0 AWG |
| Stud Material | Tinned Copper |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) |
| Terminal Stud Length | 0.875 in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75 lb (0.79 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
