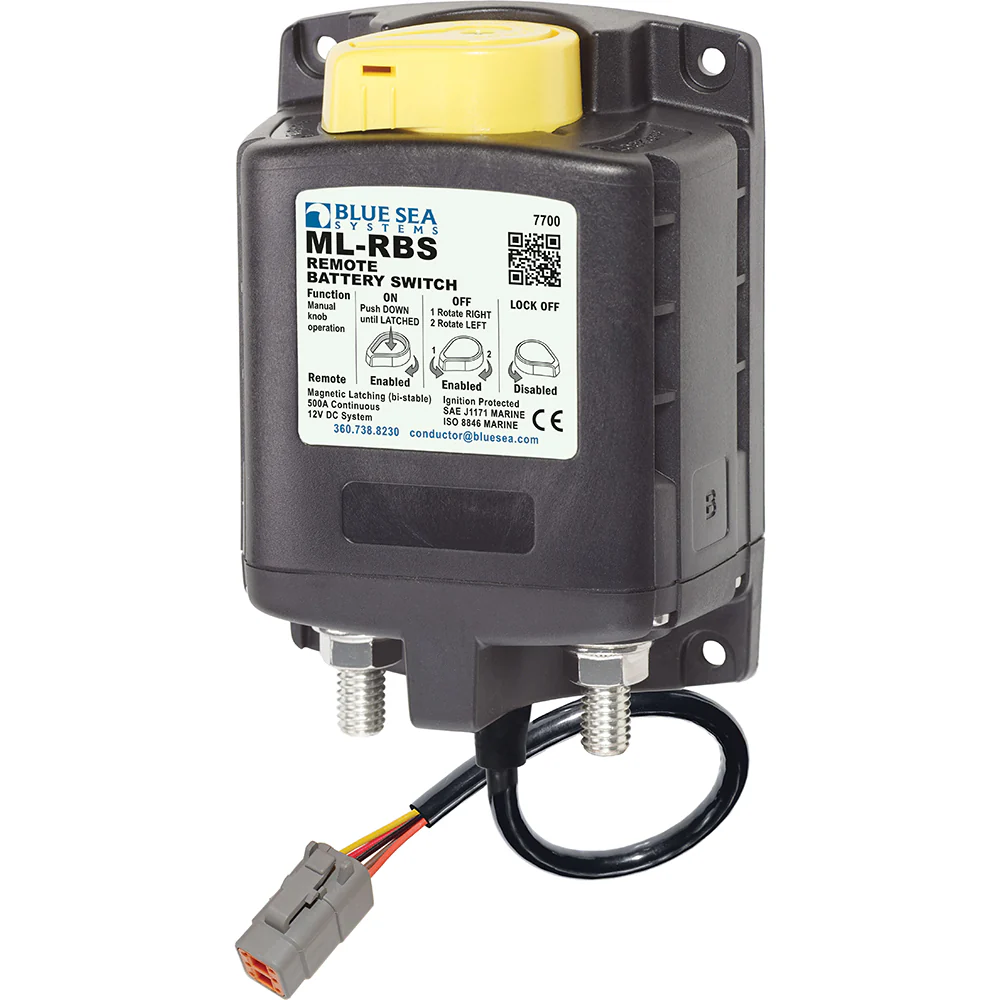

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:

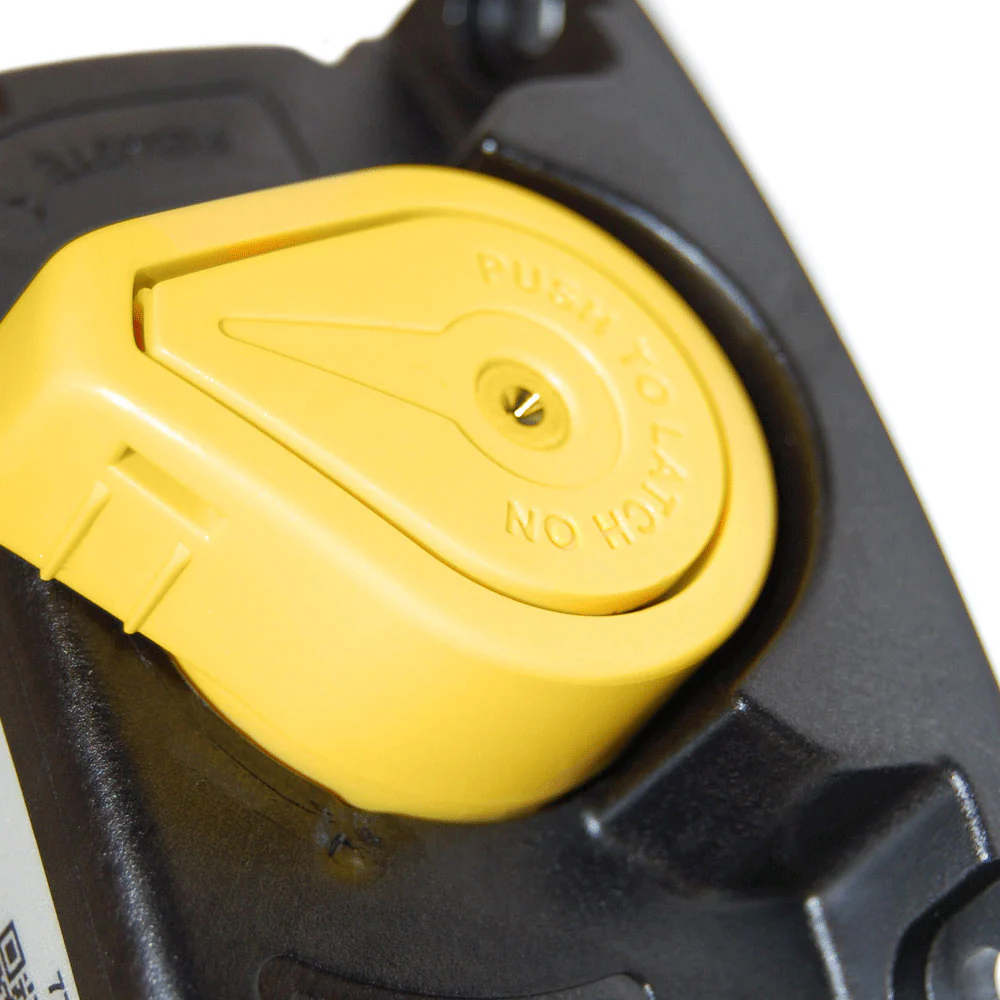

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Product Specifications
Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector [7700100] Product Specifications
| Specifications | Details |
|---|---|
| Control Circuit Voltage | 9–16V DC |
| Control Circuit Connection | Deutsch DTM / Amphenol ATM (retail units: tinned wires) |
| Nominal Voltage | 12V DC |
| Coil Function | Bi-Stable – can be controlled with SPST/SPDT switch for normally open relay |
| Mounting | #10 |
| Amperage Operating Current | 0 mA @ 25°C nominal VDC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating (5 min) | 700A |
| Cranking Rating (30 sec) | 1450A DC |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 60°C |
| Cable Size to Meet Ratings | 2 × 4/0 AWG |
| Live Current Switching | 300A @ 12V DC, 10,000 cycles |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 cycles |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) |
| Terminal Stud Length | 0.875 in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75 lb (0.79 kg) |
