Blue Sea 7700 ML-Series Remote Battery Switch w/ Manual Control 12VDC [7700]
Blue Sea Ā 7700 ML-Series Remote Battery Switch w/ Manual Control 12VDC [7700]
Description
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Features:

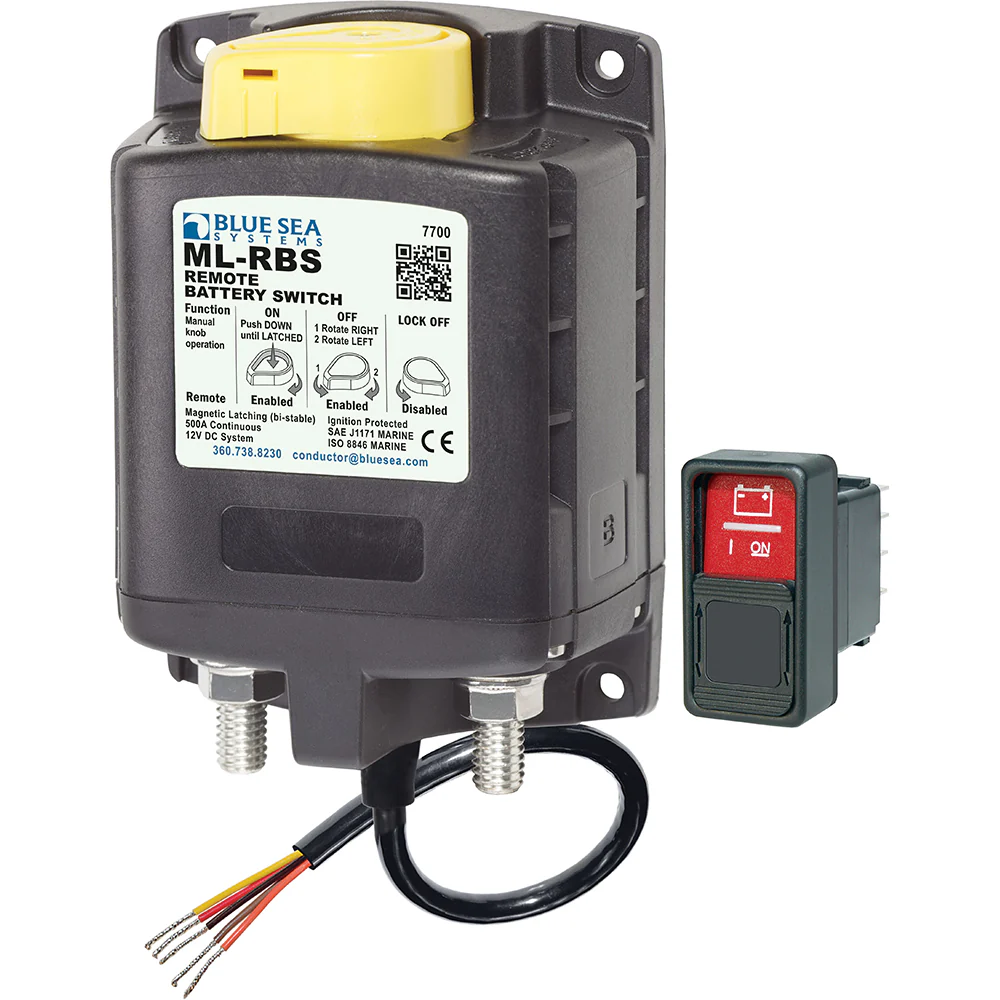

- Includes ML-Series Remote Control Contura Switch 2145

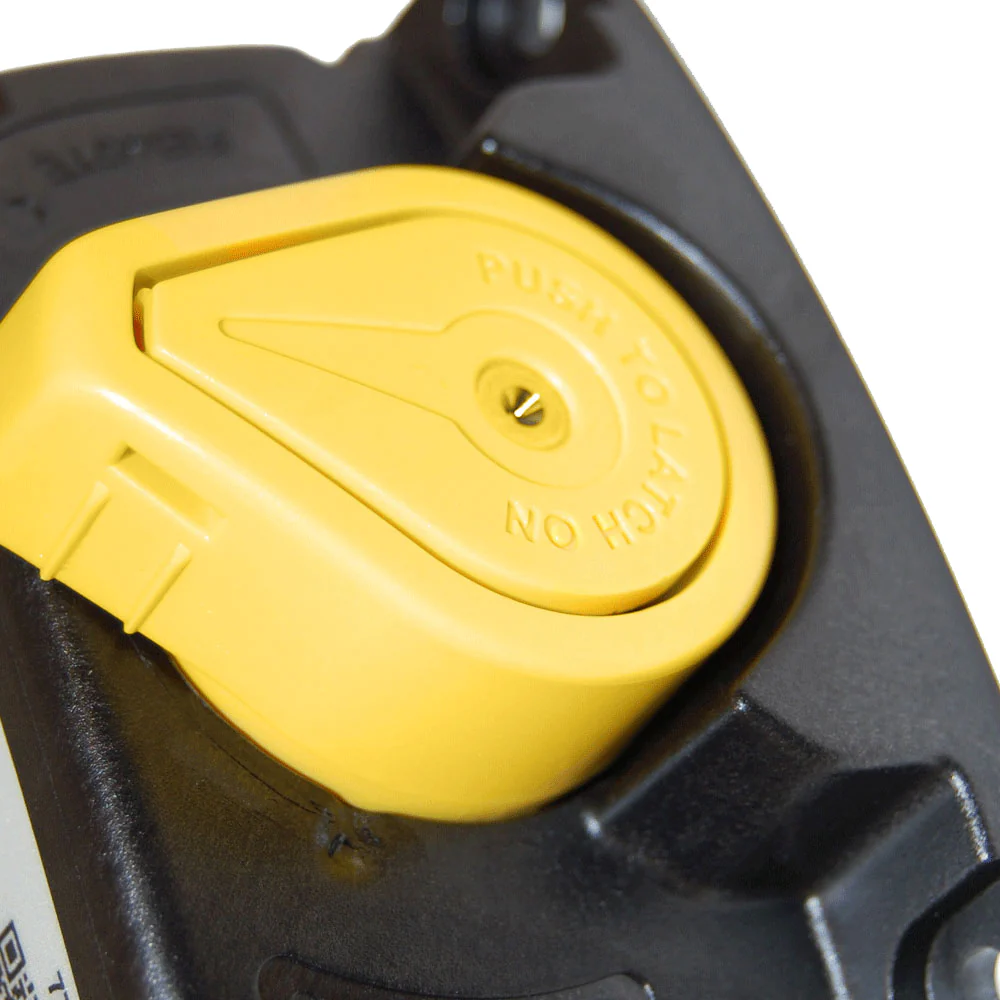

- Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
Product Specifications
Blue Sea Ā 7700 ML-Series Remote Battery Switch w/ Manual Control 12VDC [7700] Product Specifications
| Specification | Value |
|---|---|
| Control Circuit Voltage | 9ā16V DC |
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | Yes |
| Coil Function | Bi-Stable |
| Mounting | #10 screws |
| Amperage Operating Current | 0 mA @ 25Ā°C nominal VDC |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Starting Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10Ā° C |
| Maximum Operating Temperature | 60Ā° C |
| Cable Size to Meet Ratings | 2 Ć 4/0 AWG |
| Live Current Switching | 300A @ 12V DC, 10,000 cycles |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 cycles |
| Switching Rating | 25A |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) |
| Terminal Stud Length | 0.875 in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 2.05 lb (0.93 kg) |
