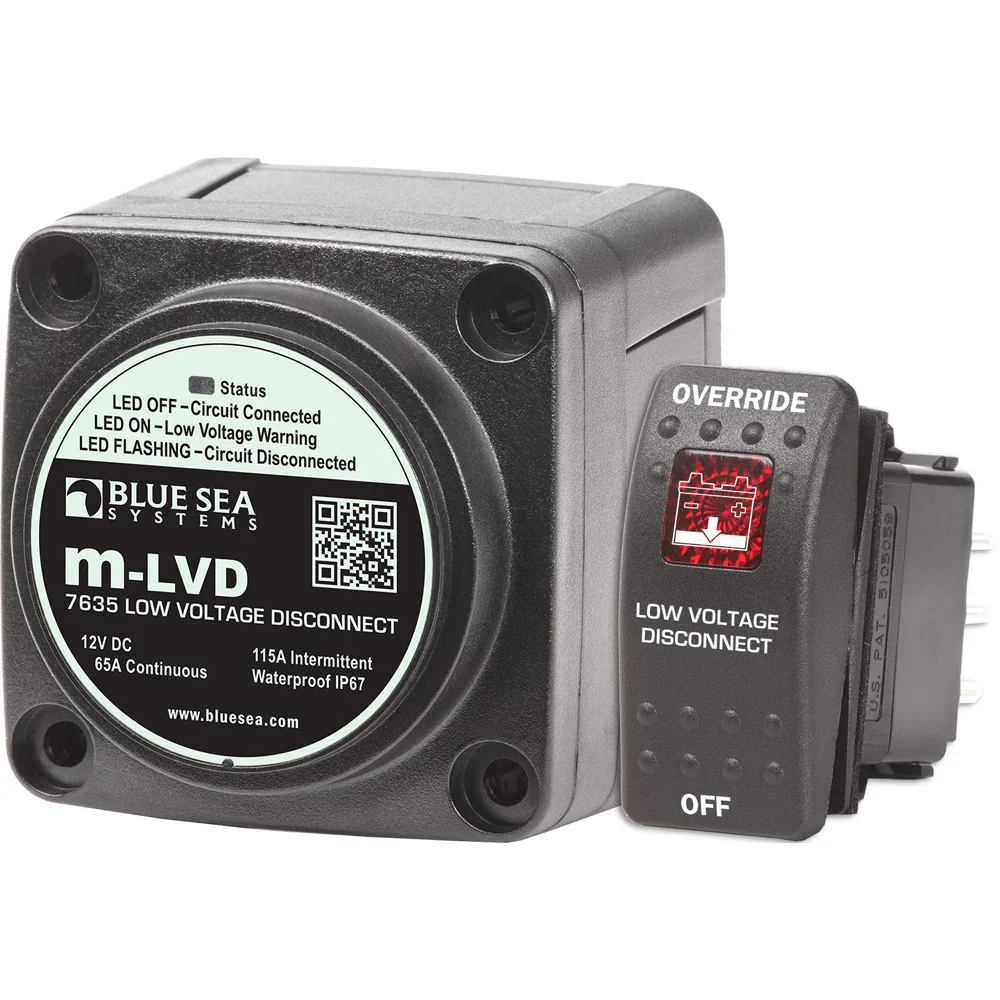

Blue Sea 7635 m-LVD Low Voltage Disconnect [7635]
Blue Sea 7635 m-LVD Low Voltage Disconnect [7635]
Description
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.
Features:
- Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
- Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
- Remote Control Switch Functions:
-
Disconnect Voltage Adjustment - Sets desired disconnect voltage
-
Override - Temporarily delays circuit disconnect for 10 minutes
-
OFF - Temporarily disconnects circuits until voltage rises
- Override or OFF - Silences alarm (optional alarm required)
-
Disconnect Voltage Adjustment - Sets desired disconnect voltage

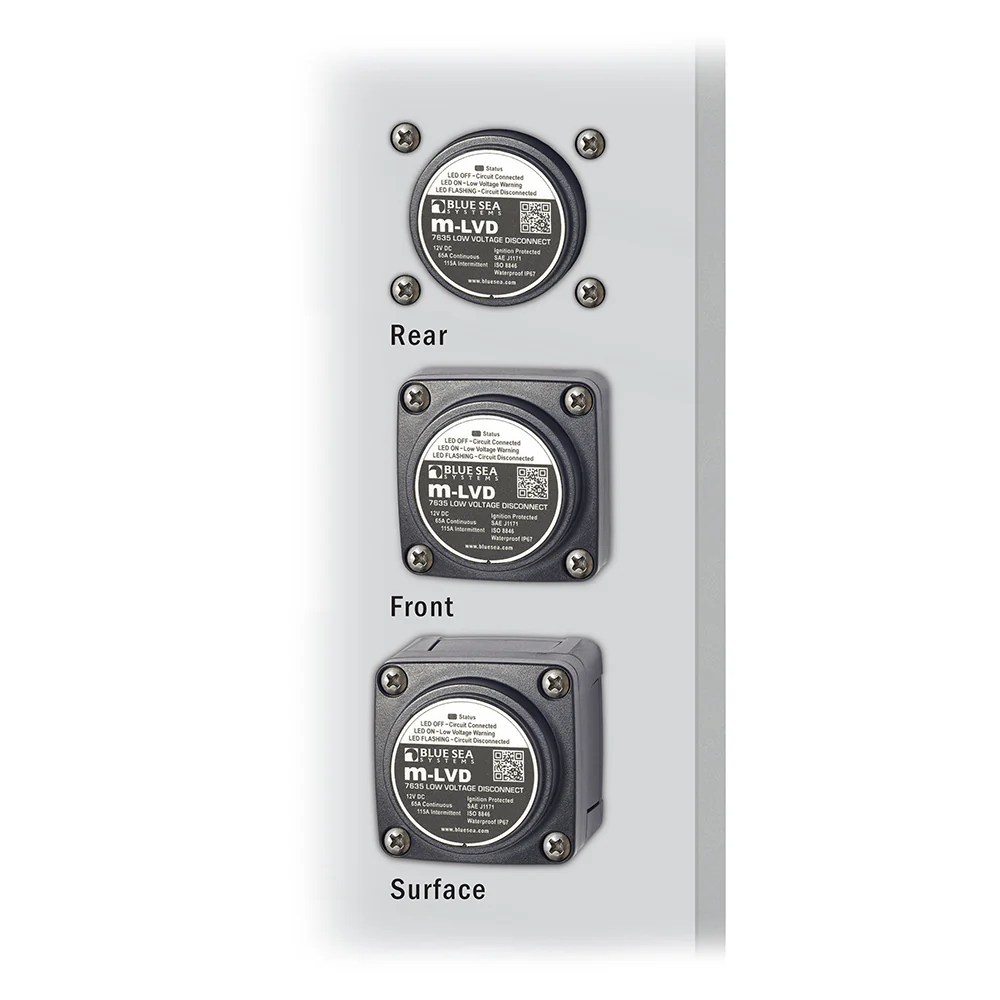

- Case design allows surface, front panel, or rear panel mounting
- Rear insulating cover protects rear contacts
- Waterproof - rated IP67 for temporary immersion
Product Specifications
Blue Sea 7635 m-LVD Low Voltage Disconnect [7635] Product Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 12V DC |
| Amperage / Operating Current | 95 mA (Connected) / 4 mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A (5 min) |
| Maximum Cable Size | 1/0 AWG (50 mmĀ²) |
| Stud Material | Tinned Brass |
| Terminal Stud Length | 7/16 in (11.11 mm) |
| Terminal Stud Size | 1/4" - 20 (M6) |
| Weight | 0.77 lb (0.35 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
