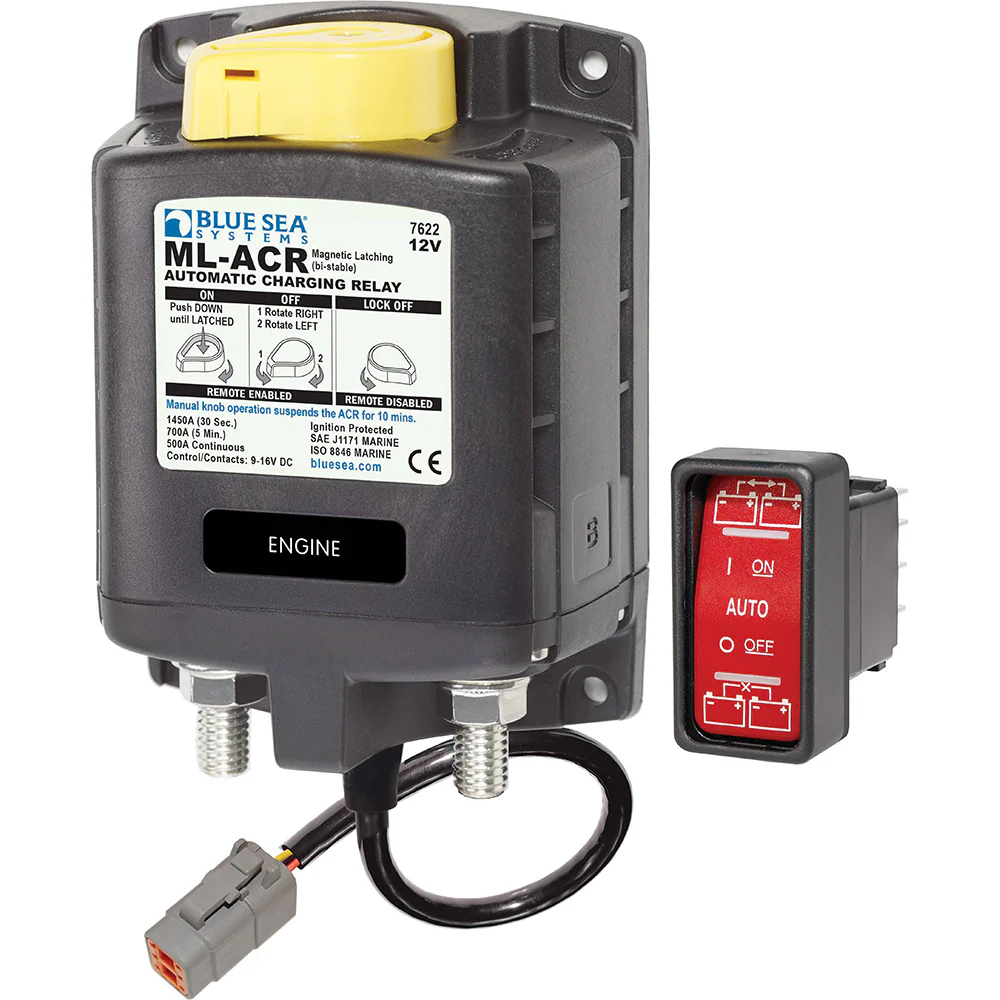

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.
Features:
- Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- 500 Ampere continuous rating to support high-output alternators
- Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
- Dual sensing—senses charge on both battery banks
- Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification
Product Specifications
Blue Sea 7622100 ML ACR Charging Relay 12V 500A w/Manual Control Deutsch Connector [7622100] Product Specifications
| Specifications | Details |
|---|---|
| Control Circuit Connection | Deutsch DTM / Amphenol ATM (retail units: tinned wires) |
| Nominal Voltage | 12V DC |
| Manual Control | Yes (provides added safety with LOCK OFF capability) |
| Engine Isolation Condition | Yes – Two engines running:• One relay open, one relay closed• Engine 1 & 2 batteries isolated to protect electronics |
| Mounting | #10 |
| Start Assist Condition | Yes – Relay closed combining batteries to share power for low start battery |
| Start Isolation Condition | Yes – Relay open isolating batteries to protect sensitive electronics |
| Amperage Operating Current | 13mA @ 25°C nominal VDC |
| Amperage Operating Current (Changing State) | <7.0A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating (5 min) | 700A |
| Cranking Rating (30 sec) | 1450A DC |
| Cable Size to Meet Ratings | 2 × 4/0 AWG |
| Live Current Switching | 300A @ 12V DC |
| Switching Cycles | 100,000 |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) |
| Terminal Stud Length | 1.50 in (38.1 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Relay Contact Position Voltages | Combine 30 sec: 13.5VCombine 90 sec: 13.0VOpen 10 sec: 12.35VOpen 30 sec: 12.75VOpen High: 16.2V |
