Blue Sea 7620 ML-Series Automatic Charging Relay (Magnetic Latch) 12VDC [7620]
Blue Sea 7620 ML-Series Automatic Charging Relay (Magnetic Latch) 12VDC [7620]
Description

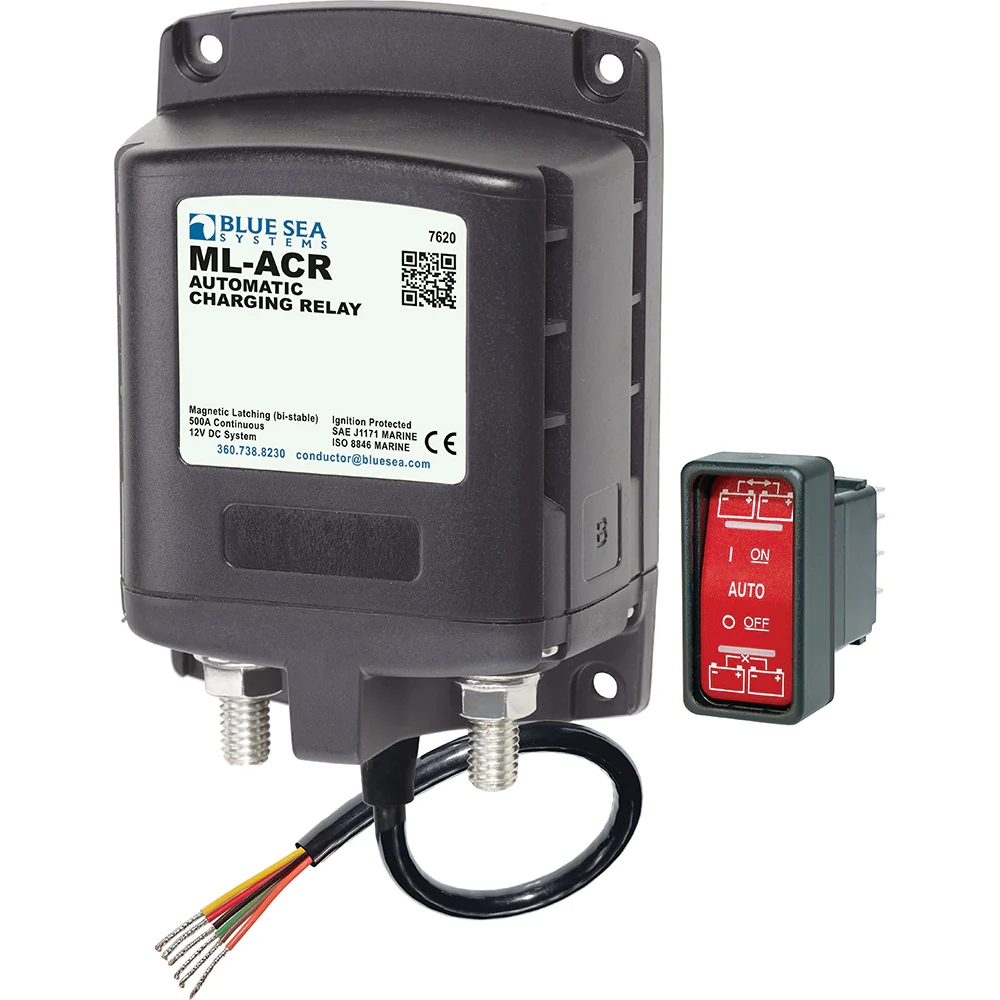

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine
Features:
- Combines battery banks during charging and isolates under discharge
- 500 Ampere continuous rating suitable for use with large battery banks, starters, alternators, and inverter/chargers
- Includes ML-Series Remote Control Contura Switch PN 2146
- Silver alloy contacts provide high reliability
- 3/8" copper studs, using Blue Sea Systems superior one piece stud technology, suitable for 300 Ampere continuous rating and large cable connections
Product Specifications
Blue Sea 7620 ML-Series Automatic Charging Relay (Magnetic Latch) 12VDC [7620] Product Specifications
| Specification | Value |
|---|---|
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | No |
| Engine Isolation Condition | Yes |
| Mounting | #10 screws |
| Start Assist Condition | Yes |
| Start Isolation Condition | Yes |
| Amperage Operating Current | 13mA |
| Amperage Operating Current when changing state | <7A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Cable Size to Meet Ratings | 2 × 4/0 AWG |
| Live Current Switching | 300A @ 12V DC |
| Stud Material | Tinned Copper |
| Switching Cycles | 100,000 |
| Terminal Ring Diameter Clearance | 1.12 in (28.45 mm) |
| Terminal Stud Length | 1.50 in (38.1 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Wire Size | 20 AWG |
| Relay Contact Positions | Combine 30 sec: 13.5V, Combine 90 sec: 13.0V, Open 10 sec: 12.35V, Open 30 sec: 12.75V, Open High: 16.2V |
| Weight | 2.04 lb (0.93 kg) |
