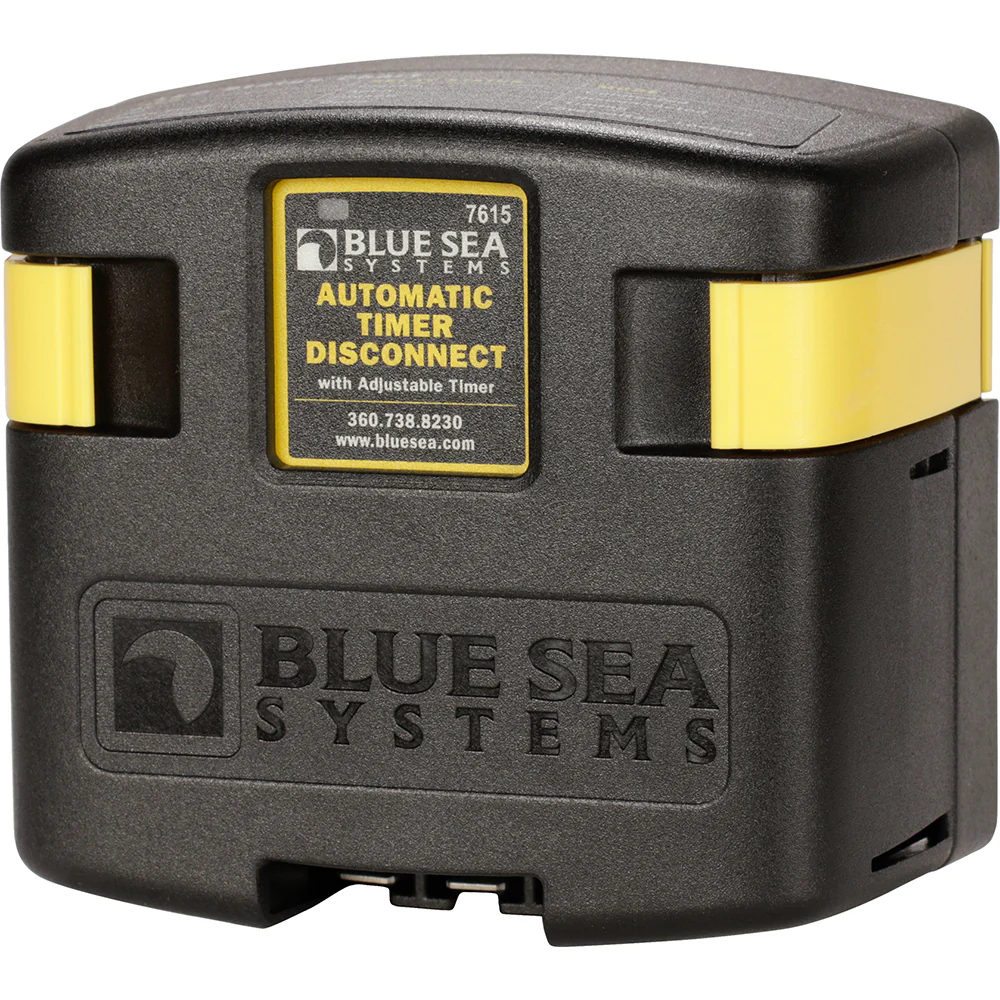

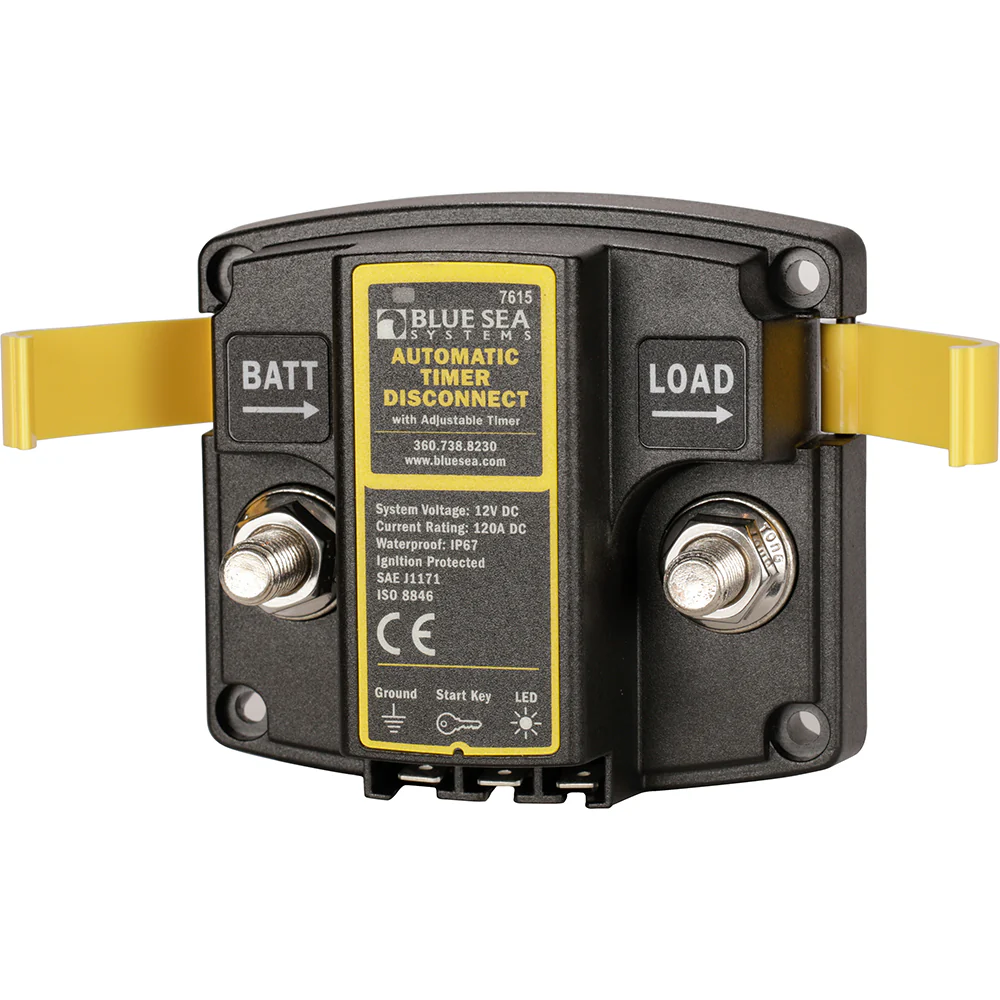

Blue Sea 7615 ATD Automatic Timer Disconnect [7615]
Blue Sea 7615 ATD Automatic Timer Disconnect [7615]
Description
Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power
Features:
- 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
- Disconnect can be triggered based on time, low voltage, or removal of 12V signal
- Low voltage will disconnect if time hasn_t been reached to preserve battery power
- Time and voltage options can be turned off to allow 12V signal based disconnect
- Clip-on cover insulates terminal connections
- One-piece stainless flange nuts ensure safe and secure connections
- Integrated LED indicates status
Product Specifications
Blue Sea 7615 ATD Automatic Timer Disconnect [7615] Product Specifications
| Specification | Details |
|---|---|
| Nominal Voltage | 12V DC |
| Amperage Operating Current | 175 mA (closed), 4 mA (open) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 min) |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Cable Size to Meet Ratings | 1 AWG (50 mm²) |
| Maximum Cable Size | 1/0 AWG (50 mm²) |
| Charge Sense Connect | 13.0V (3 sec) |
| Charge Sense Disconnect | 12.75V (10 sec) |
| Low Voltage Disconnect | 11.0V, 11.5V, 12.0V (all 10 sec) |
| Disconnect Time Options | 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2 hr, 4 hr |
| Input Voltage Range | 9.5–16V |
| Overvoltage Lockout | 16.0V (5 sec) |
| Terminal Ring Diameter Clearance | 1.12 in (28.45 mm) |
| Stud Material | Tinned Copper |
| Weight | 1.25 lb (0.57 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
