Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay [7610]
Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay [7610]
Description

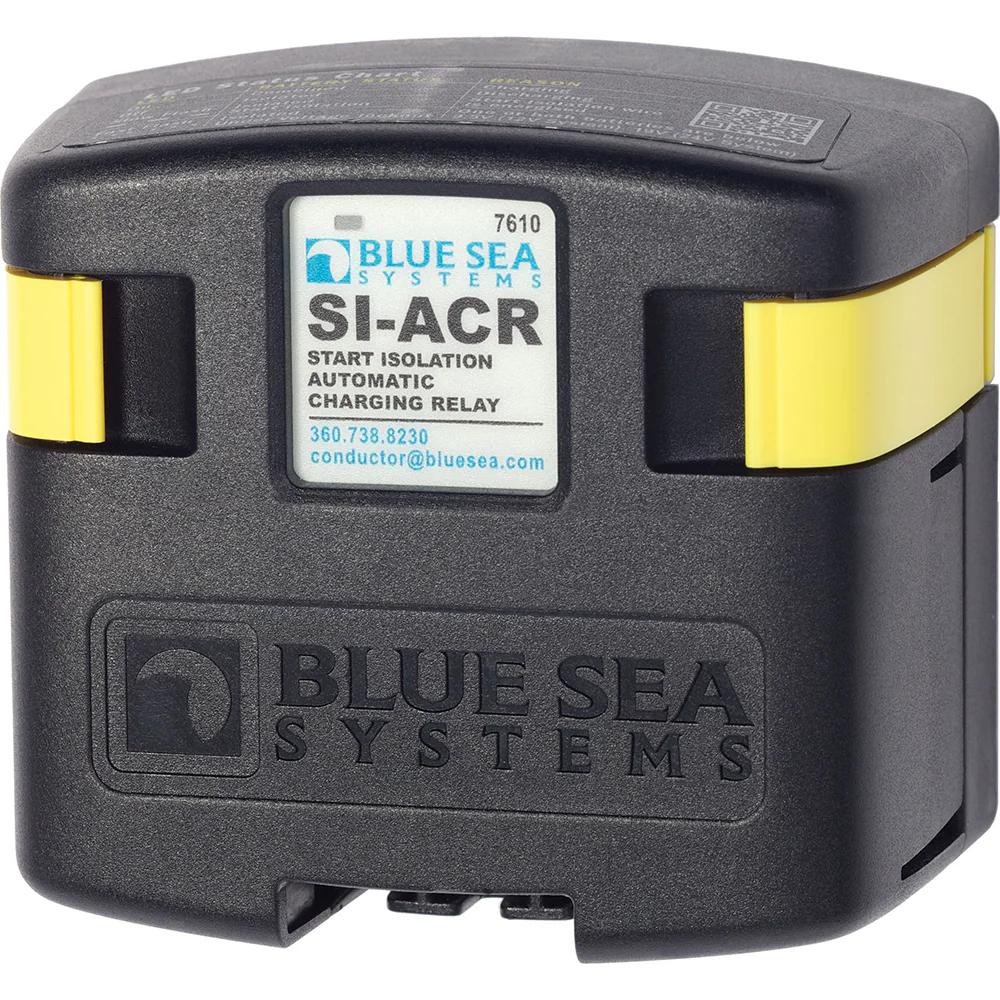

120 Amp SI-Series Automatic Charging Relay
Features:
- Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
- Automatically combines battery banks during the charging cycle and isolates under discharge
- 12/24 Volt auto ranging voltage input
- Waterproof rated IP67 - temporary immersion for 30 minutes
- Ignition protected - safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- LED light indicates when batteries are combined
- LED blinks in undervoltage lockout and starting lockout
- Supports high-output alternators up to 120 Amperes
- Included with the ADD A BATTERY Dual Circuit System
- Automatically combines battery banks during the charging cycle and isolates under discharge
- Ignition protected - safe for installation aboard gasoline-powered boats
- Activates from any charging source - alternators, battery chargers, or solar panels
- Hermetically sealed contacts / vaporproof

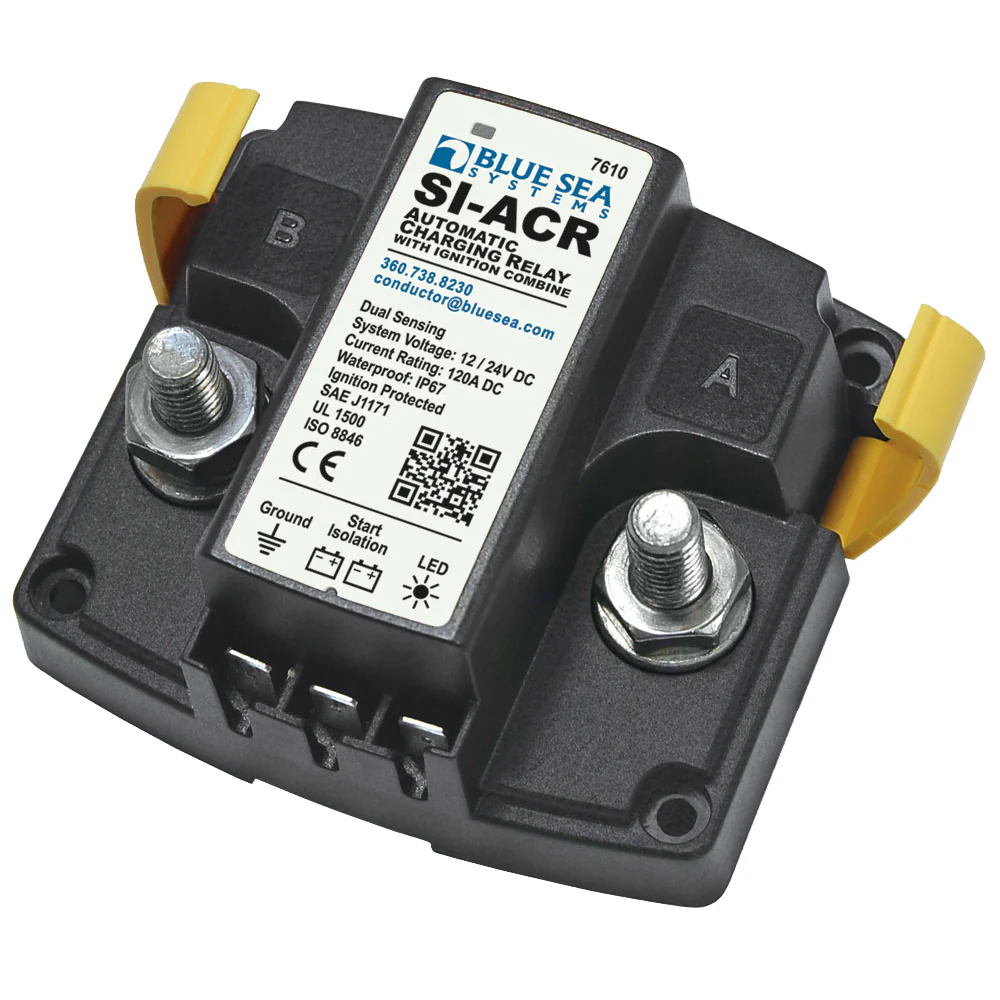

- Side and bottom knockouts for power cable connections

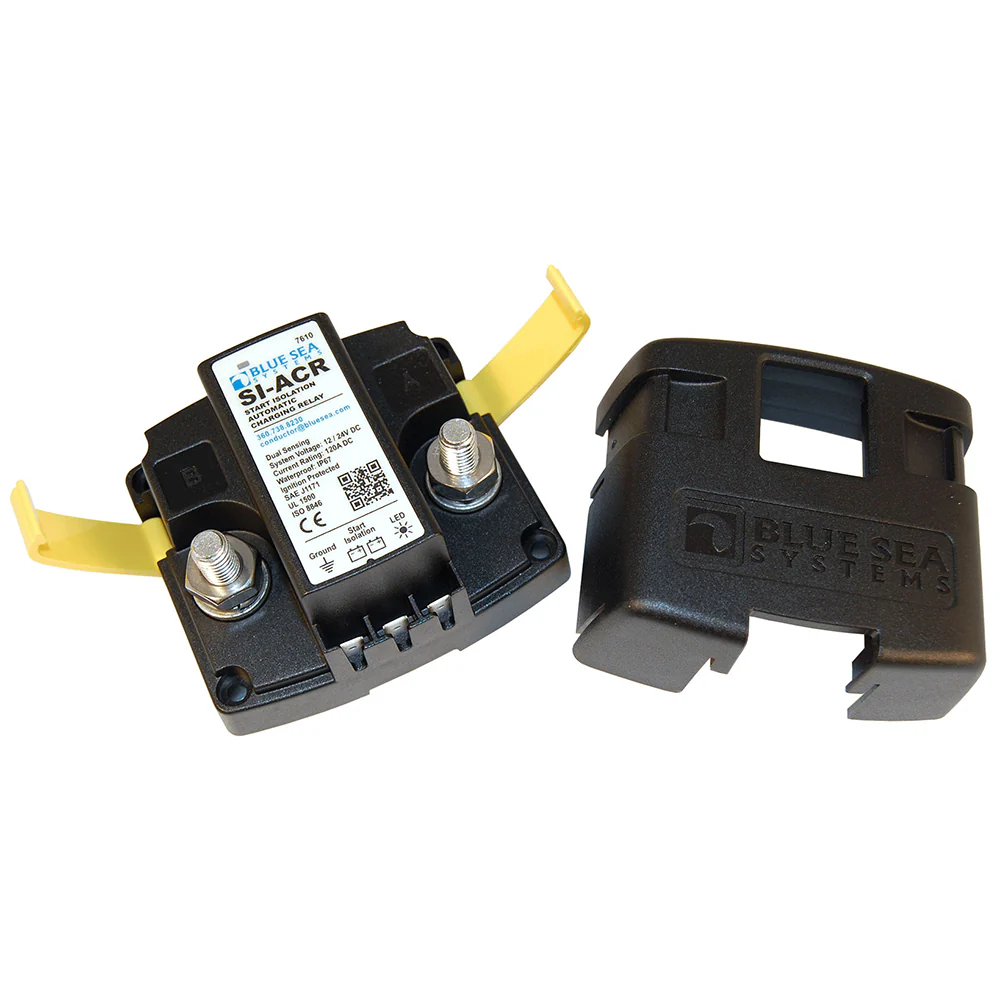

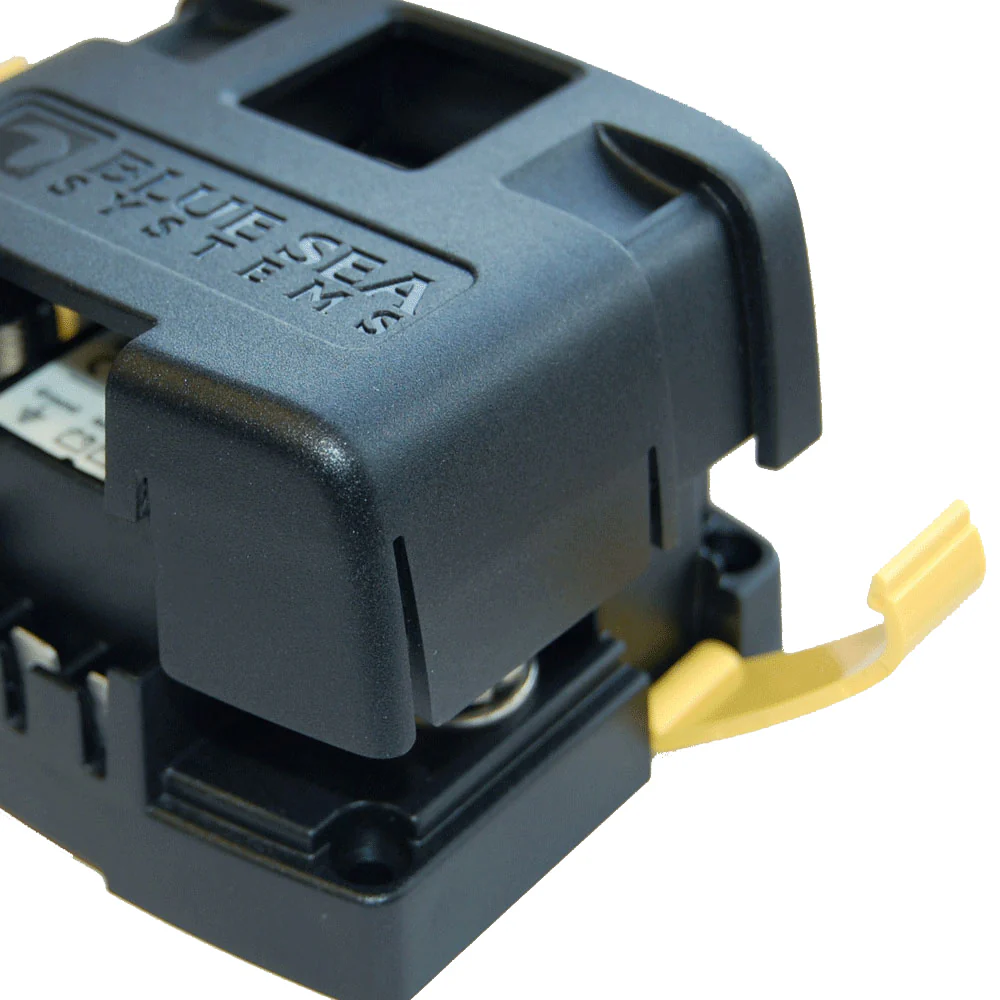

- Clip-on cover protects and insulates terminal connections
- Tin-plated copper studs for maximum corrosion resistance
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt
Product Specifications
Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay [7610] Product Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 12V DC / 24V DC |
| Start Isolation Condition | Yes |
| Amperage Operating Current | 175mA (combined), 15mA (open) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 min) |
| Cable Size to Meet Ratings | 1/0 AWG |
| Stud Material | Tinned Copper |
| Terminal Ring Diameter Clearance | 1.12in (28.45 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Relay Contact Position ā Combine 30 sec | 13.6V @ 12V, 27.2V @ 24V |
| Relay Contact Position ā Combine 90 sec | 13.0V @ 12V, 26.0V @ 24V |
| Relay Contact Position ā Open 10 sec | 12.35V @ 12V, 24.7V @ 24V |
| Relay Contact Position ā Open 30 sec | 12.75V @ 12V, 25.5V @ 24V |
| Relay Contact Position ā Open High | 16.0V @ 12V, 30.0V @ 24V |
| Overvoltage Lockout | 16.0V @ 12V, 32.0V @ 24V |
| Undervoltage Lockout | 9.5V @ 12V, 19V @ 24V |
| Weight | 1.25 lb (0.57 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
