Description

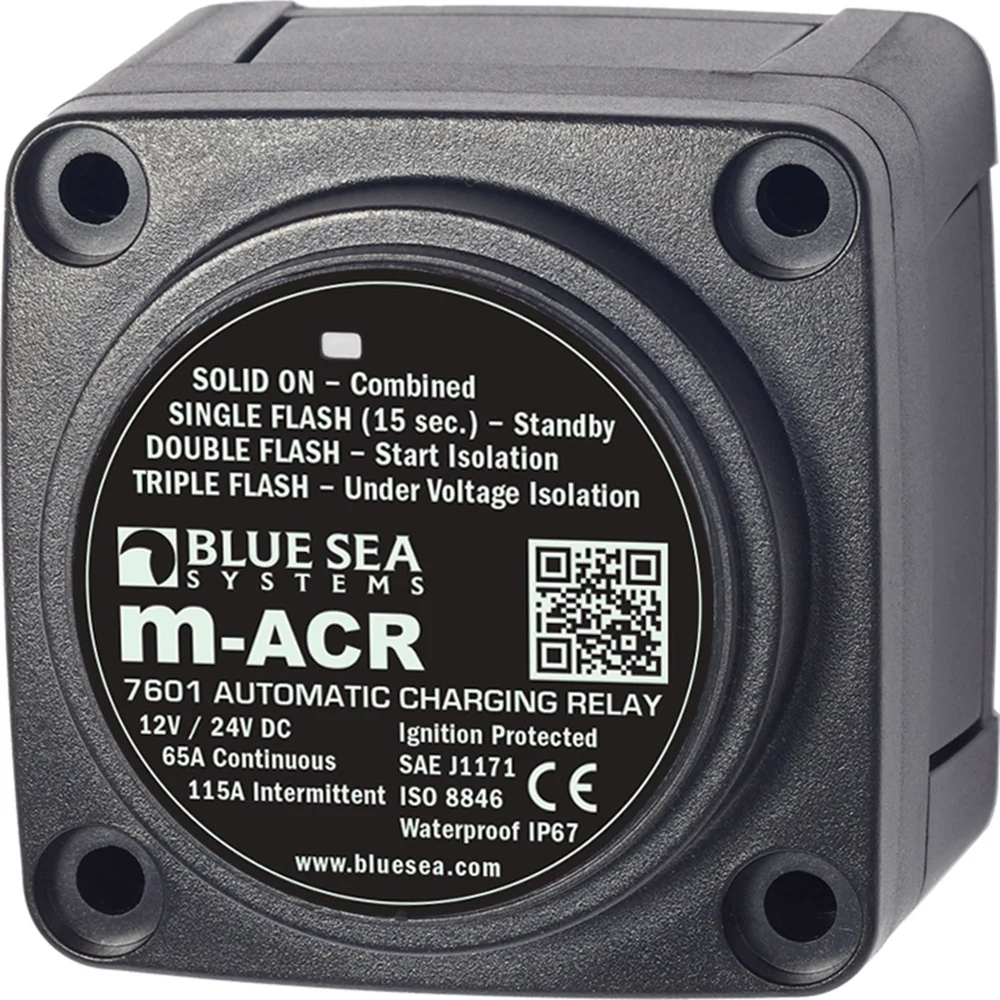

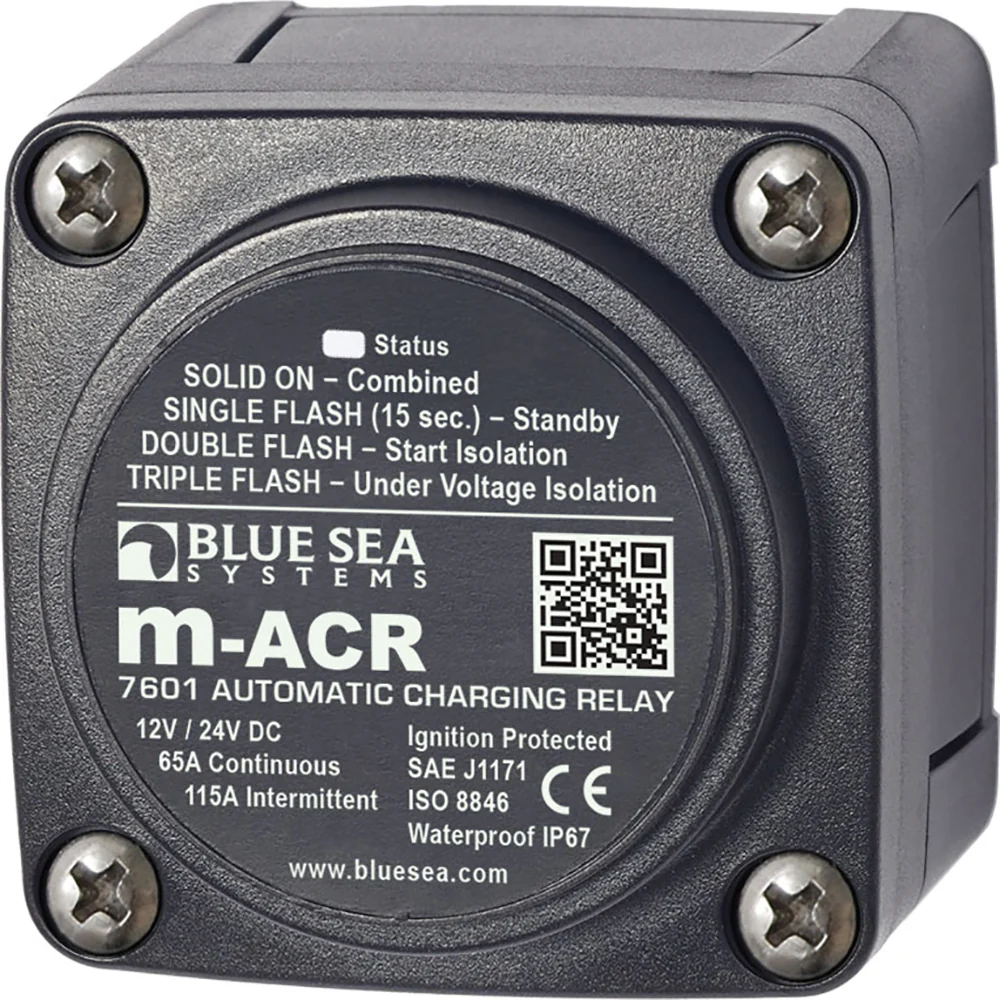

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.
Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

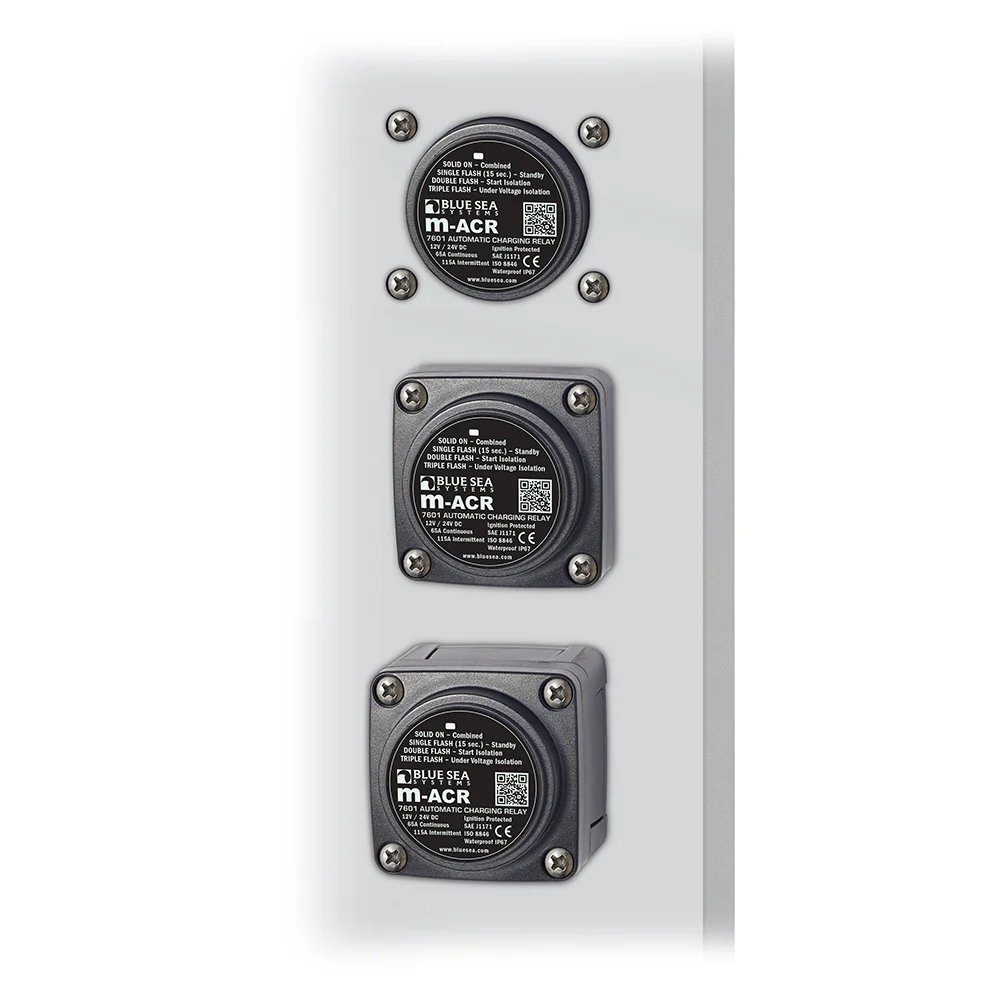

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.
Features:
- 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
- Compact case design allows surface and panel mounting
- Senses charging on two battery banks
- Snap-on cover insulates terminal connections
- LED indicates ACR status
- 1/4" x .032" male quick connect terminal for ground
- 5/8" (16 mm) stud length to accept multiple cable terminals
- 12V DC voltage input
Product Specifications
Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp [7601] Product Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 12V DC / 24V DC |
| Start Isolation Condition (Engine Starting) | Yes ā Relay is open isolating batteries. Batteries are isolated to protect sensitive electronics from voltage sags and spikes. |
| Amperage Operating Current | 175mA (Combine); 90mA (Combine alternate); 15mA (Open) |
| Terminal Stud Torque | 60ā75 in-lb (6.78ā8.5 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating (5 min) | 115A |
| Continuous Amperage | 65A |
| Maximum Cable Size | 1/0 AWG |
| Cable Size to Meet Ratings | 6 AWG |
| Stud Material | Tinned Brass |
| Terminal Stud Size | 1/4"-20 (M6) |
| Relay Contact Position ā Combine (30 sec) | 13.0V DC |
| Relay Contact Position ā Combine (2 min) | 13.6V DC |
| Relay Contact Position ā Open (10 sec) | 12.35V DC |
| Relay Contact Position ā Open (30 sec) | 12.75V DC |
| Relay Contact Position ā Open High | 16.0V DC |
| Undervoltage Lockout | 9.5V DC |
| Box Dimensions | 3"H x 4"W x 7"L |
| Shipping Weight | 0.6 lb |
| UPC | 632085076016 |
