Blue Sea 7520 P12 LED Remote f/Battery Chargers [7520]
Blue Sea 7520 P12 LED Remote f/Battery Chargers [7520]
Description

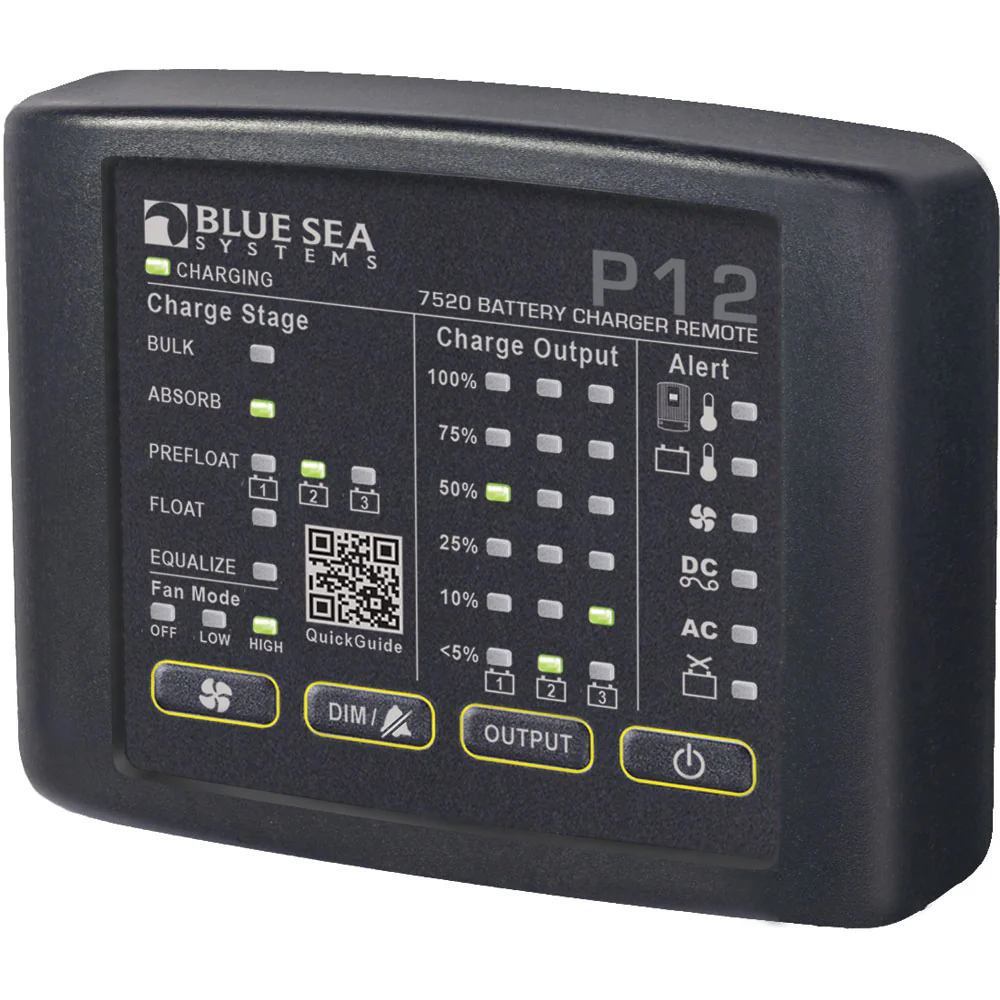

P12 Battery Charger LED Remote
LED Indicators
- Charging LED- Quick check for green light confirms charging
- Charge Stage- Displays charging stage
- Equalize LED- Indicates the charger is currently in equalization mode
- Fan Mode- Indicates charger's internal fan mode
- Charge Output- Displays the percentage of output current for each battery. Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations
- Alert- Icon LEDs provide warning and alert status for quick diagnostics
Four Control Buttons
- Fan- User adjustable settings
- Dim/ Alarm- Provides adjustment to brightness of LEDs on display as well as Silence function for alarms
- Output- User adjustable charger output when AC source limitations exist that require lowering the AC current draw
- Power- Places P12 Battery Charger into standby mode
Product Specifications
Blue Sea 7520 P12 LED Remote f/Battery Chargers [7520] Product Specifications
| Specification | Value |
|---|---|
| Minimum Operating Temperature | -20° C |
| Maximum Operating Temperature | 60° C |
| Minimum Storage Temperature | -30° C |
| Maximum Storage Temperature | 70° C |
| Communications Cable | Cat5e |
| Communications Protocol | Proprietary |
| Maximum Cable Length | 150ft (45.72 m) |
| Operating Current | <300mA sourced from charger |
| Height | 3.01" (76.45mm) |
| Width | 4.15" (105.41mm) |
| Depth | 0.95" (24.13mm) |
| Weight | 0.67 lb (0.3 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
