Blue Sea 7517 P12 Battery Charger Display [7517]
Blue Sea 7517 P12 Battery Charger Display [7517]
Description
Intuitive Battery Monitoring

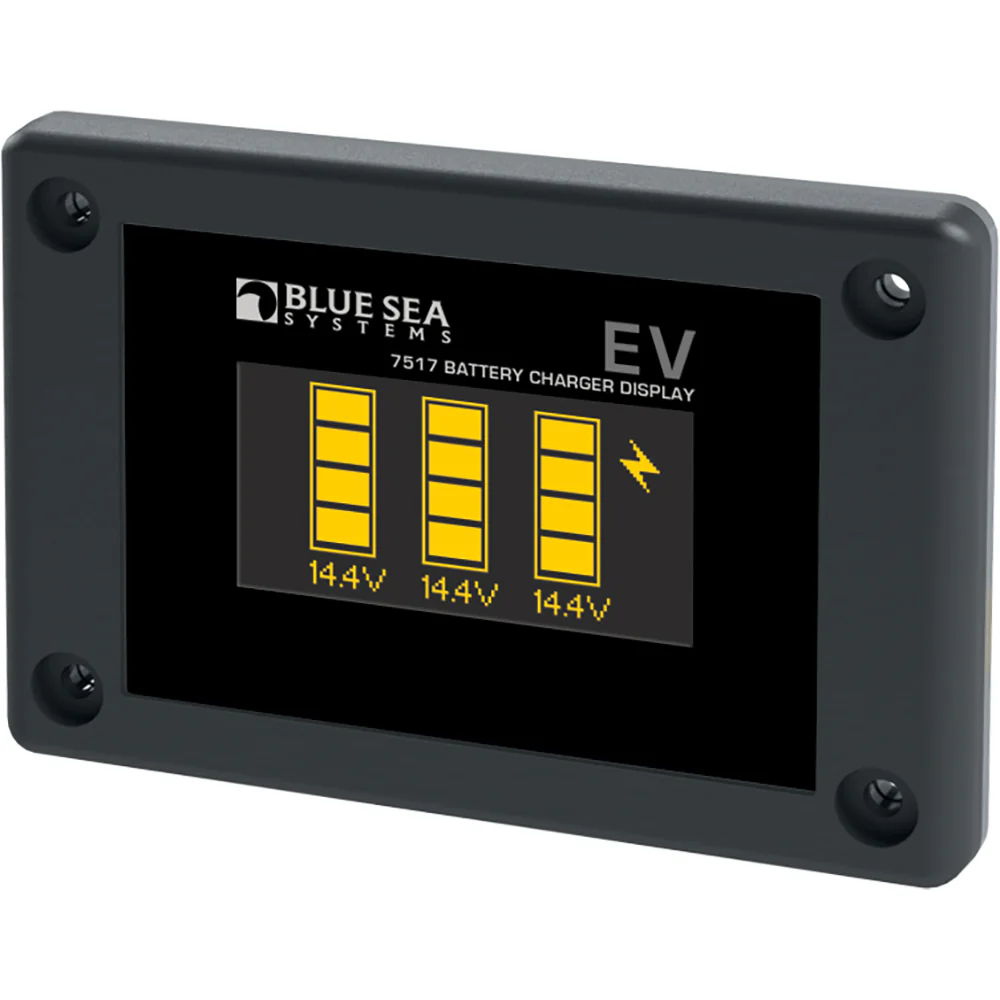

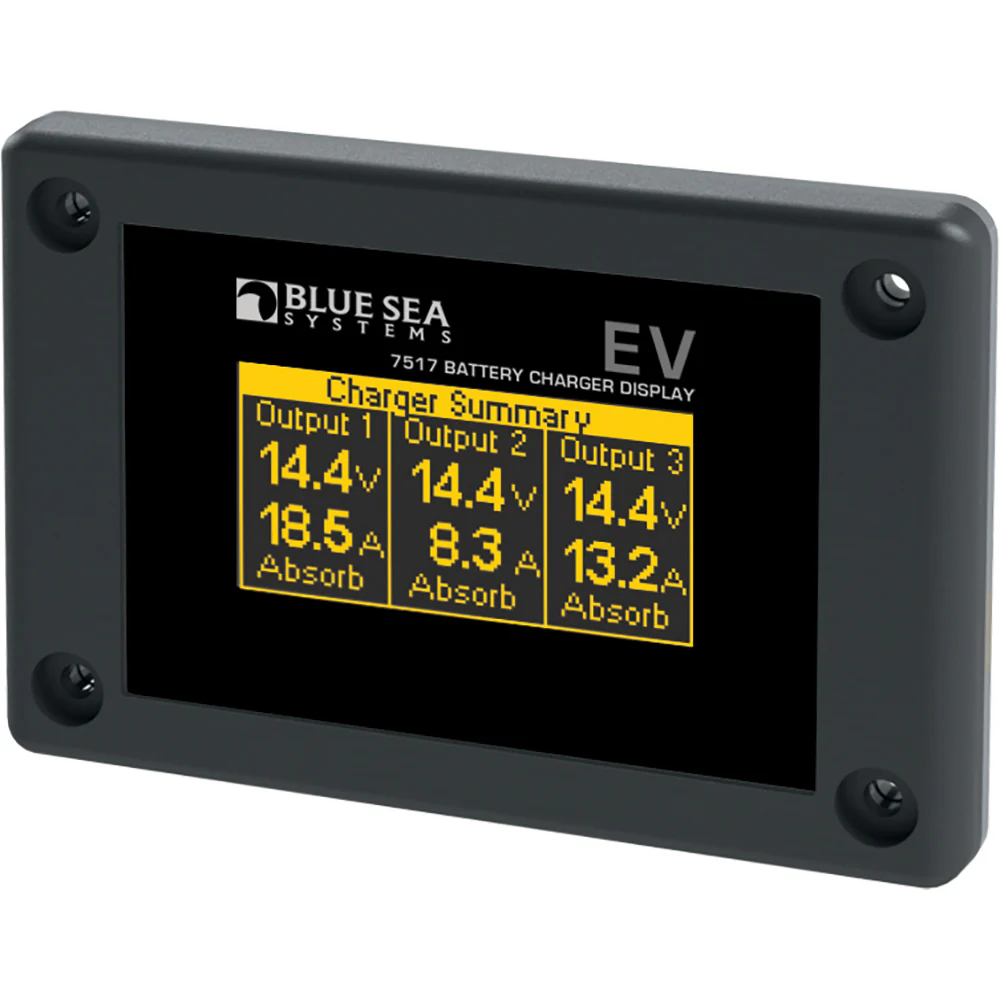

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger's Summary screen, displaying voltage, current charging stage, and faults from the charger.
Features:
- Drop in replacement for traditional rectangular displays
- Automatically detects 1-3 battery banks
- AC charge indication verifies that power is connected and the battery charger is charging
- Plain language fault indication relays if there is a fault with the battery charger
- Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
- Displays voltage bar graphs even when AC power is not present
- Optional standby mode shuts off screen after 4 hours of inactivity
- Automatic ON based on motion with integrated knock sensor
- Bright, daylight readable, OLED display
Product Specifications
Blue Sea 7517 P12 Battery Charger Display [7517] Product Specifications
| Specification | Details |
|---|---|
| Accuracy | Ā±1% at 36 Volts DC |
| Battery Inputs | 3 with common reference |
| Display Size | 55 mm x 28 mm |
| Display Type | Yellow OLED |
| Input Voltage Range | 6ā36V DC |
| Maximum Current Draw | 50mA |
| Minimum Current Draw | <1mA in Standby Mode (power-saving mode after 4 hours stationary) |
| Standby Resume Function | Activates upon vehicle movement or tapping the unit multiple times |
| Charger Output Voltage | 12V |
| Charger Output ā Amps | 25A |
| Charging Banks | 3 |
| Portable | No |
| Charger Input ā Voltage | 120/240V |
| Weight | 0.67 lb (0.3 kg) |
| Box Dimensions | 1"H x 5"W x 6"L (Weight: 2 lbs) |
| UPC | 632085075170 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
Original: $207.99
-65%$207.99
$72.80Product Information
