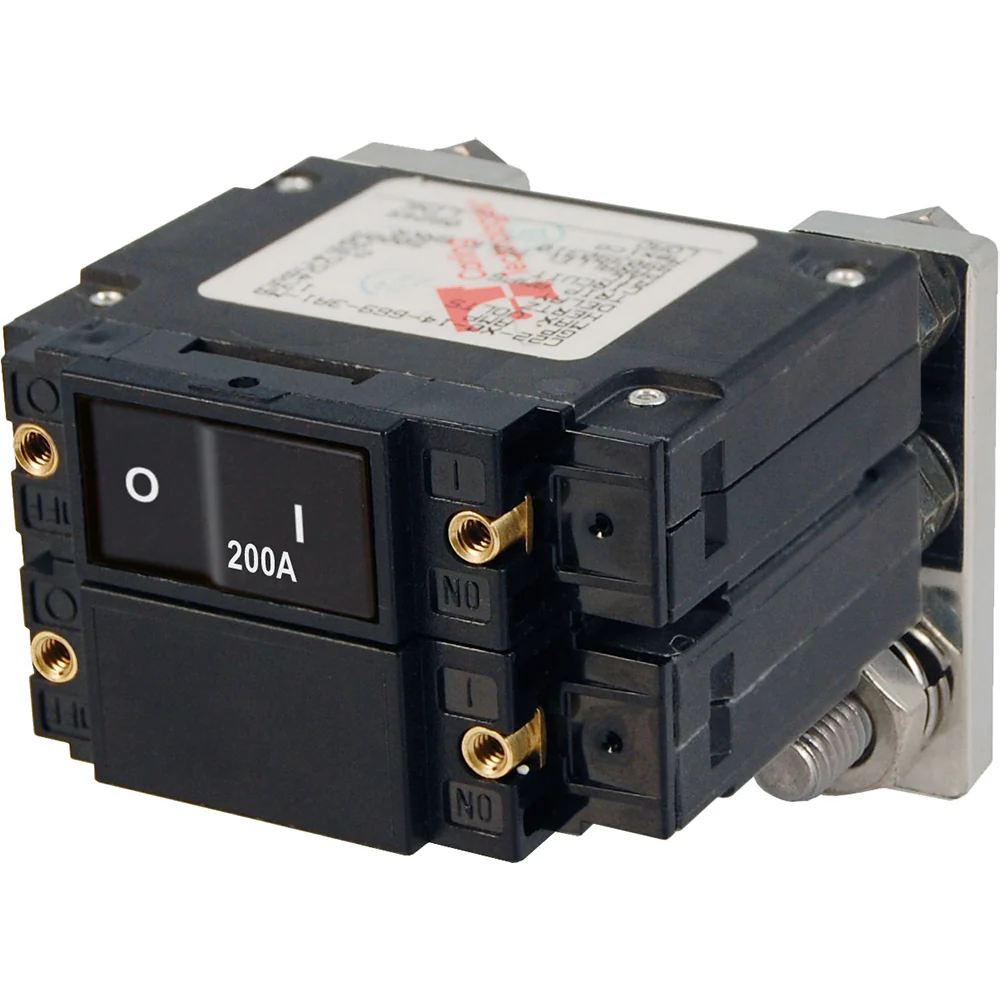

Blue Sea 7476 C - Series Flat Circuit Breaker, Single and Double Pole - 200 Amp [7476]
Blue Sea 7476 C - Series Flat Circuit Breaker, Single and Double Pole Ā - Ā 200 Amp [7476]
Description
PN:Ā Ā Ā 7476
Amperage:Ā Ā Ā 200 Amp
Features:
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- Flat actuator protects against accidental switching
- Paralleled poles have 5/16" stud on bus
- Rocker actuator is flush in the āONā position, eliminating the risk of accidental switching
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Blue Sea 7476 C - Series Flat Circuit Breaker, Single and Double Pole Ā - Ā 200 Amp [7476] Product Specifications
| Specification | Value |
|---|---|
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Amperage | 200A DC |
| Maximum Voltage | 120V AC, 240V AC, 48V DC, 80V DC |
| Rated Switch Cycles | 10,000 @ rated amperage and voltage |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Operating Temperature | -40Ā° C to 85Ā° C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Box Dimensions | 4"H x 5"W x 5"L |
| Weight | 1 lb (0.45 kg) |
| UPC | 632085074760 |
Product Manual
Instructions
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
Original: $149.99
-65%$149.99
$52.50Product Information
