Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312]
Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312]
Description

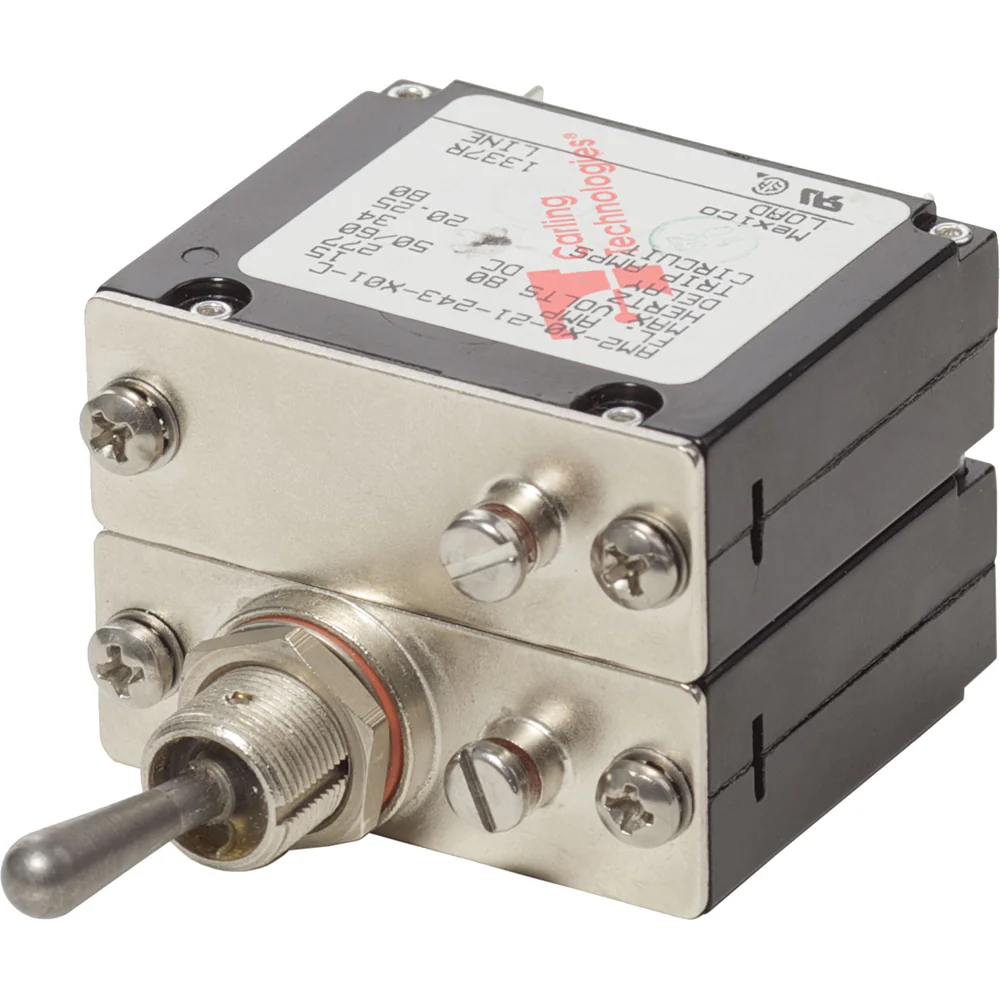

The Blue Sea Systems 7312 COTS Military Grade A-Series 15 Amp Circuit Breaker is a high-performance, ruggedized circuit protection device designed for demanding applications such as marine, RV, military, and industrial environments. It combines switching and circuit protection into a single device, offering a trip-free magnetic hydraulic mechanism. May be suitable for use when military specifications are required under CFR 46.
Product Specifications
Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312] Product Specifications
| Specifications | Details |
|---|---|
| Amperage | 15A |
| Actuator Style | Metal Toggle |
| Poles | 2 |
| Maximum Voltage | 277V AC / 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – Trip Free |
| Interrupt Capacity | 1500A AC / 7500A DC |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Boss | 1/2-32 Hex Nut SS |
| Mounting Nut Torque | 30 in-lb (3.39 Nm) |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 7 in-lb (0.79 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 6000 Electrical / 4000 Mechanical |
| Terminal Screws | #10-32 SS |
| Weight | 0.13 lb (0.06 kg) |
| UL Rating | UL 1077 |
| Box Dimensions | 2"H × 3"W × 4"L |
| Box Weight | 0.35 lbs |
| UPC | 632085173128 |
Product Manual
N/A
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
