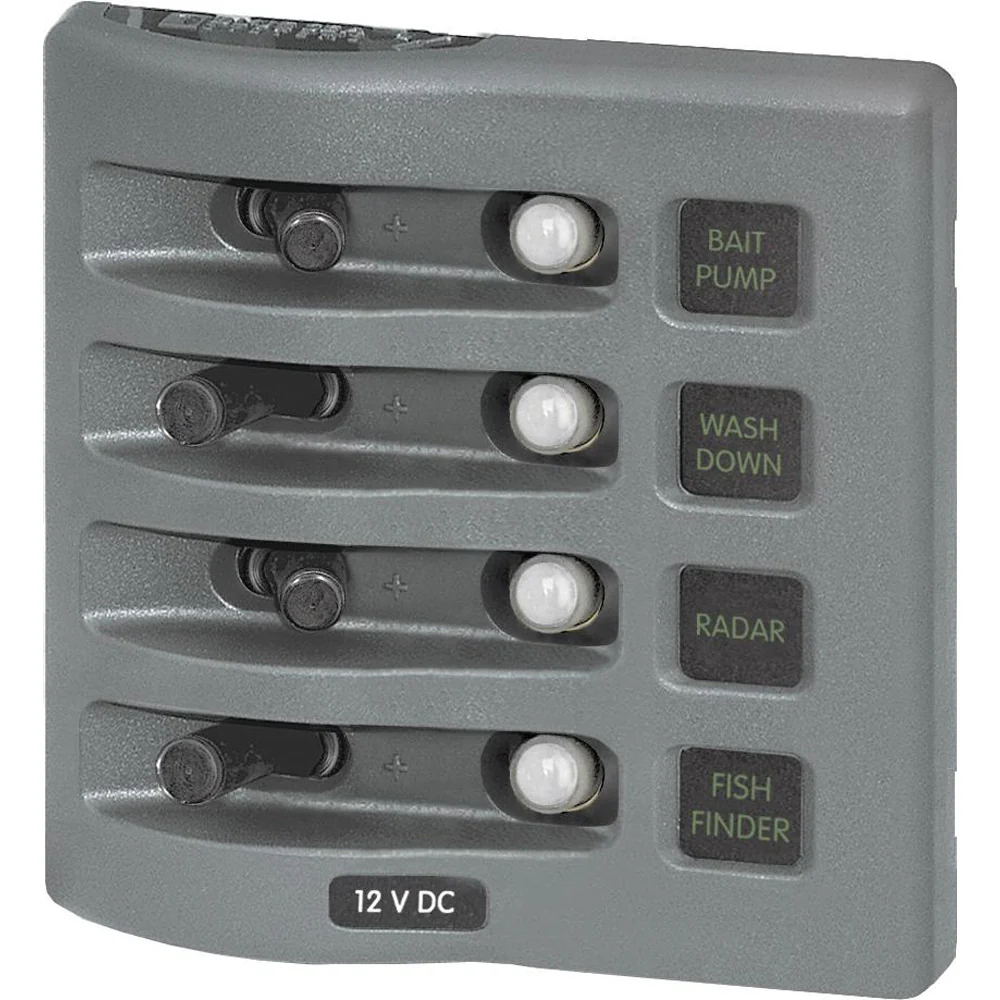

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey [4374]
Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey [4374]
Description
WeatherDeckā¢ Water Resistant Circuit Breaker Panel
Features:
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
Included:
- (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
- (4) 4138 WeatherDeckĀ® Toggle Switch Boot - Black
- (4) 4150 WeatherDeckĀ® Toggle Switch SPST - ON-OFF
- (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
Product Specifications
Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey [4374] Product Specifications
| Specification | Value |
|---|---|
| Weatherproof | Waterproof |
| Positions | 4 |
| Nominal Voltage | 12V / 24V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit) / 9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA / Illuminated Circuit |
| Backlighting Voltage | 12V or 24V DC |
| Material | Reinforced Polycarbonate |
| Height | 4.3 in (109.22 mm) |
| Width | 4.25 in (107.95 mm) |
| Depth | 3.5 in (88.9 mm) |
| Weight | 0.97 lb (0.44 kg) |
| Voltage | 12V |
| AC/DC | DC |
| Max Breaker Quantity | 4 |
| Box Dimensions | 6"H x 6"W x 8"L ā WT: 1 lb |
| UPC | 632085043742 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Guide (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
Original: $100.99
-65%$100.99
$35.35Product Information
