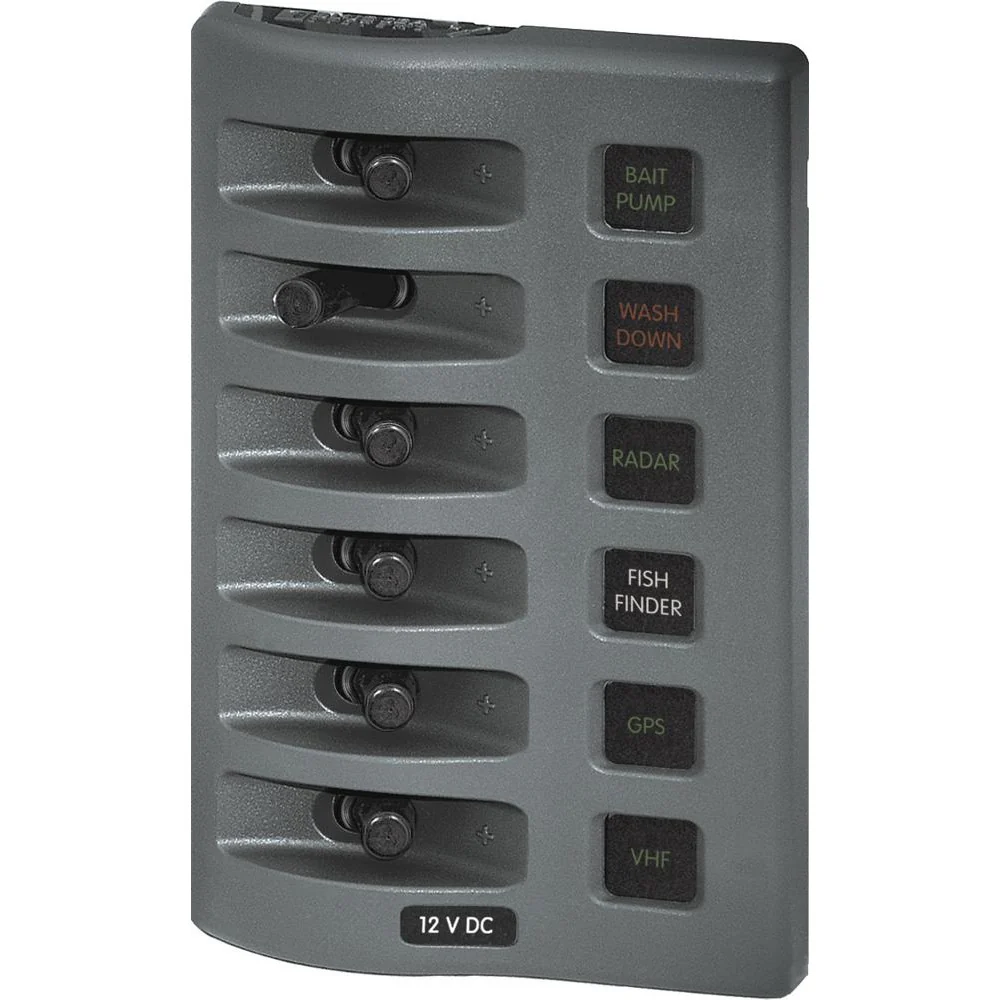

Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey [4306]
Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey [4306]
Description
WeatherDeckā¢ Water Resistant Fuse Panel
Features:
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 ā protected against immersion up to 1 meter for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label back lighting circuit for remote switching and dimming
- Each panel can be mounted in four different orientations
- Integrated ATO/ATC fuse based circuit protection
- Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
Included:
- (6) 4138 WeatherDeckĀ® Toggle Switch Boot - Black
- (6) 4150 WeatherDeckĀ® Toggle Switch SPST - ON-OFF
- (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- (6) 5242 ATO/ATC Fuse - 15 Amp
Product Specifications
Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey [4306] Product Specifications
| Specification | Value |
|---|---|
| Weatherproof | Waterproof |
| Positions | 6 |
| Nominal Voltage | 12V DC |
| Circuit Protection | Fuse |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Panel Cumulative Rating | 90A |
| Backlit Label | Bicolored LED |
| Backlighting Amperage | 10mA / Illuminated Circuit |
| Backlighting Voltage | 12V DC |
| Material | Reinforced Polycarbonate |
| Height | 6.0 in (152.4 mm) |
| Width | 3.88 in (98.55 mm) |
| Depth | 2.5 in (63.5 mm) |
| Weight | 1.15 lb (0.52 kg) |
| Voltage | 12V |
| AC/DC | DC |
| Max Breaker Quantity | 6 |
| Box Dimensions | 5"H x 6"W x 9"L ā WT: 1.5 lbs |
| UPC | 632085043063 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Guide (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
