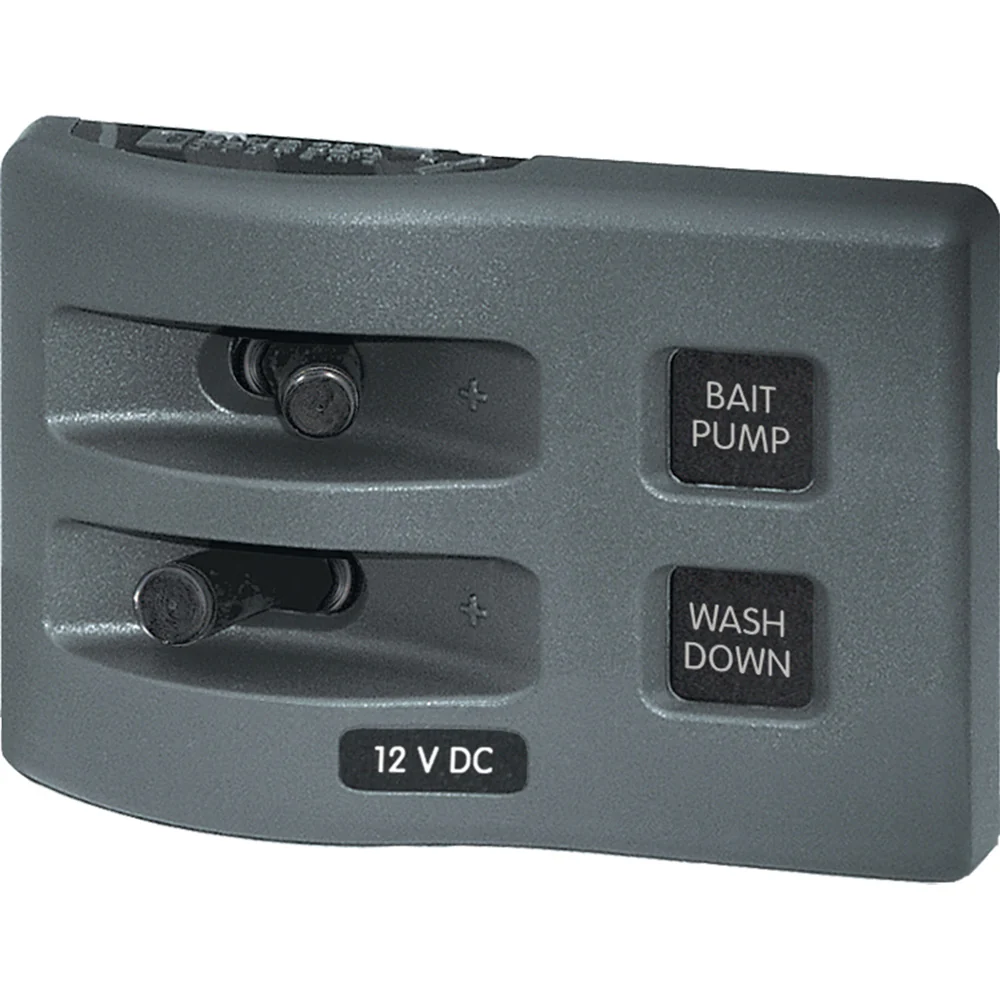

Blue Sea 4303 WeatherDeck 12V DC Waterproof Switch Panel - 2 Position [4303]
Blue Sea 4303 WeatherDeck 12V DC Waterproof Switch Panel - 2 Position [4303]
Description
Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won’t deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of backlighting and circuit protection.
Features:
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 – protected against immersion up to 1 meter for 30 minutes
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Product Specifications
Blue Sea 4303 WeatherDeck 12V DC Waterproof Switch Panel - 2 Position [4303] Product Specifications
| Specification | Value |
|---|---|
| Weatherproof | Waterproof |
| Positions | 2 |
| Nominal Voltage | 12V DC / 24V DC |
| Circuit Protection | None |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Material | Reinforced Polycarbonate |
| Height | 2.60" (66.04 mm) |
| Width | 3.88" (98.55 mm) |
| Depth | 2.50" (63.5 mm) |
| Weight | 0.52 lb (0.24 kg) |
| AC/DC | DC |
| Max Breaker Quantity | 2 |
| Voltage | 12/24V |
| Box Dimensions | 4"H x 6"W x 6"L |
| Shipping Weight | 0.45 lb |
| UPC | 632085043032 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
