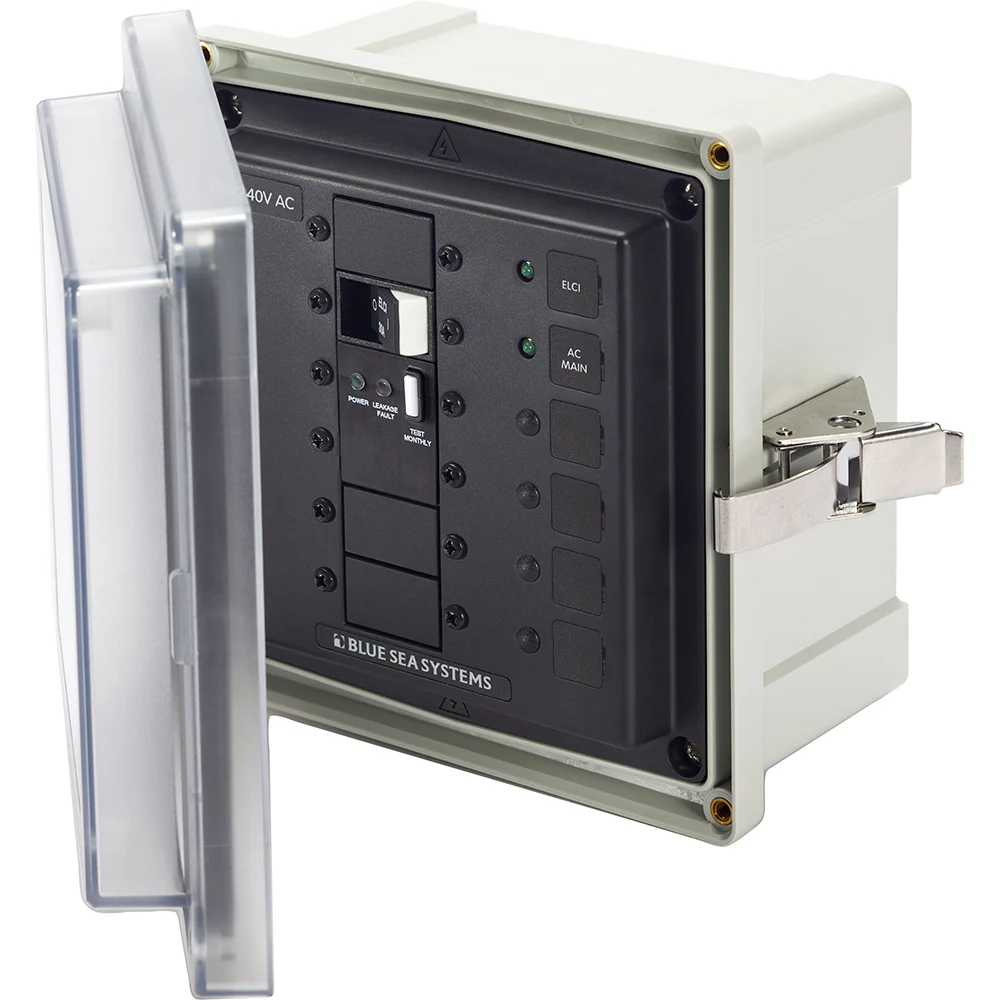

Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V [3120]
Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V [3120]
Description
The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LEDs for backlighting and ON indication
In the Box:
- 3120 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
Product Specifications
Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V [3120] Product Specifications
| Specifications | Details |
|---|---|
| Circuit Breaker Type | 1 × ELCI (50A) Main 240V + 2 × Blank |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | 66°C |
| Cover Screws & Hardware | 10-32 Stainless Steel |
| Enclosure Size (H × W × D) | 6.0" × 6.0" × 4.0" (152 × 152 × 102 mm) |
| Exterior Overall Dimensions (H × W × D) | 7.6" × 7.4" × 4.7" (192 × 188 × 120 mm) |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 4.00 lb (1.81 kg) |
| LEDs Installed | 2 × Green ON (240V AC) |
| Dimensions (Overall, H × W × D) | 7.6" × 7.4" × 4.7" (192 × 188 × 120 mm) |
| Dimensions (Enclosure, H × W × D) | 6" × 6" × 4" (152 × 152 × 102 mm) |
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Quick Guide (pdf)
Brochure (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
