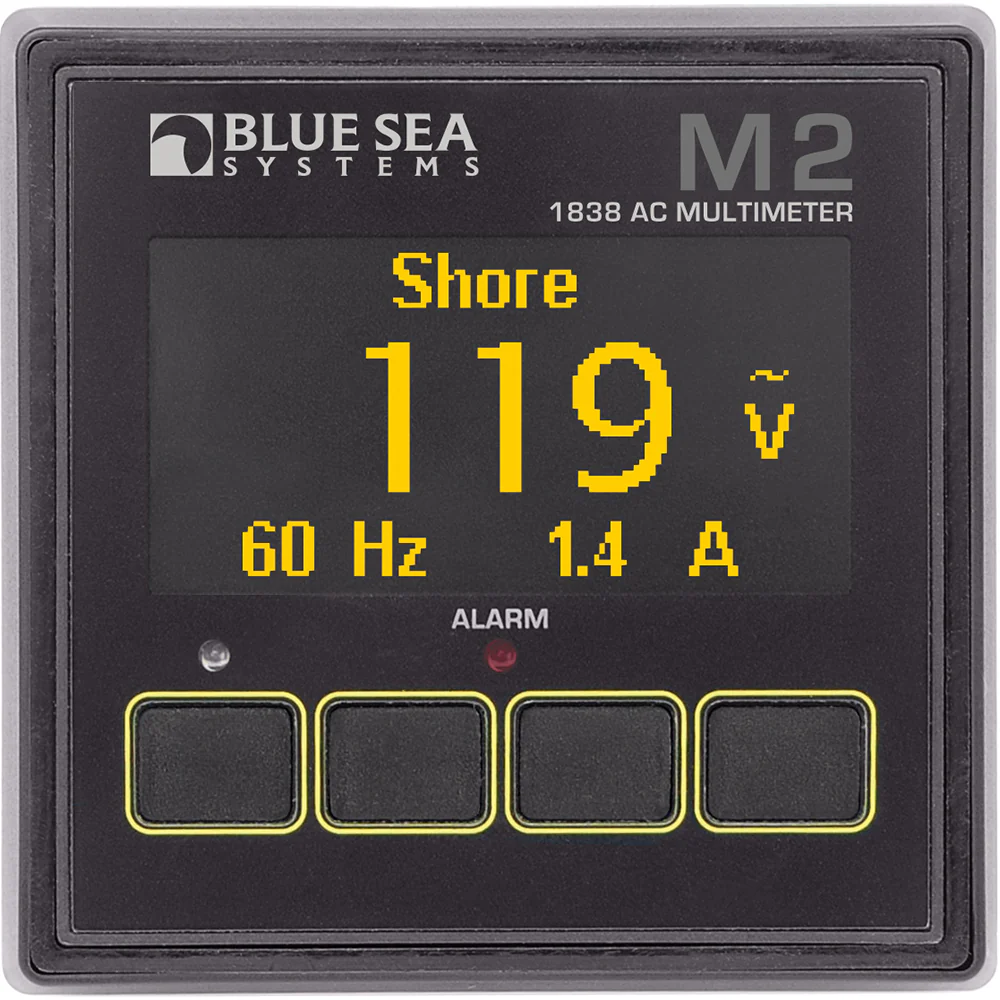

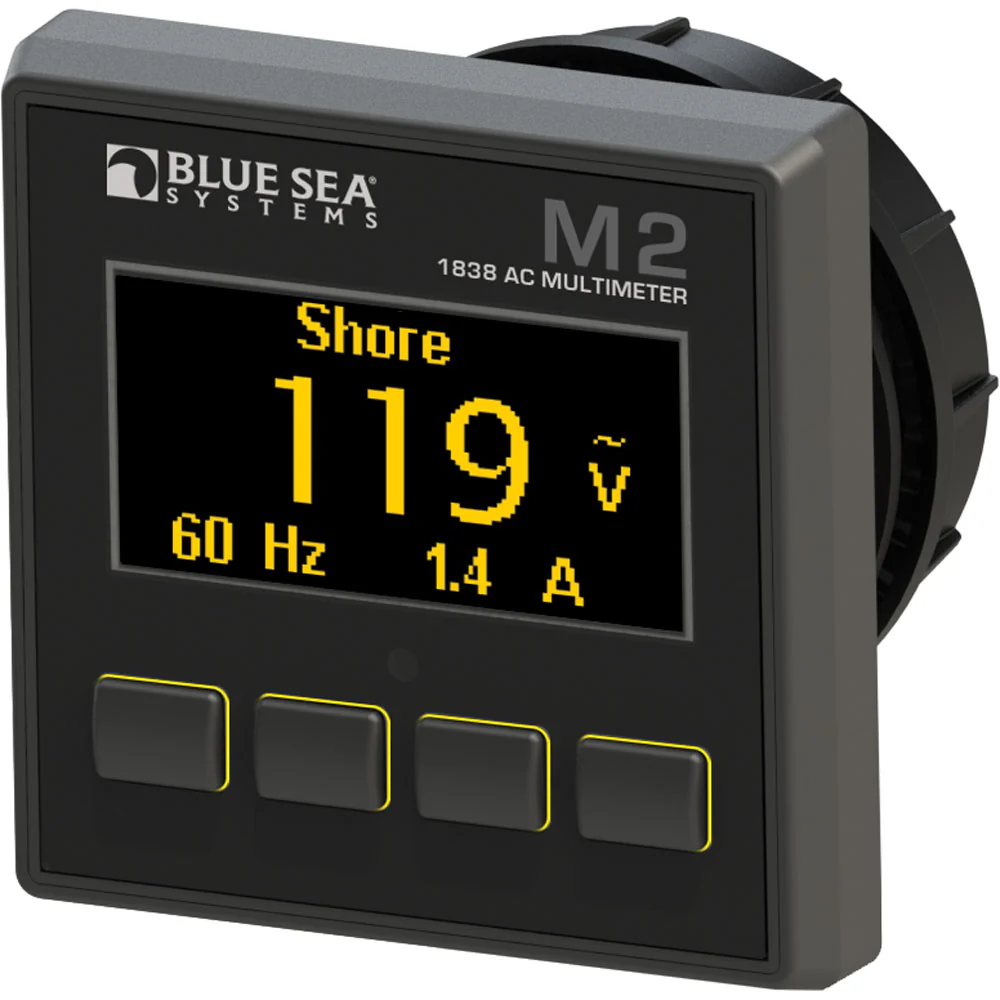

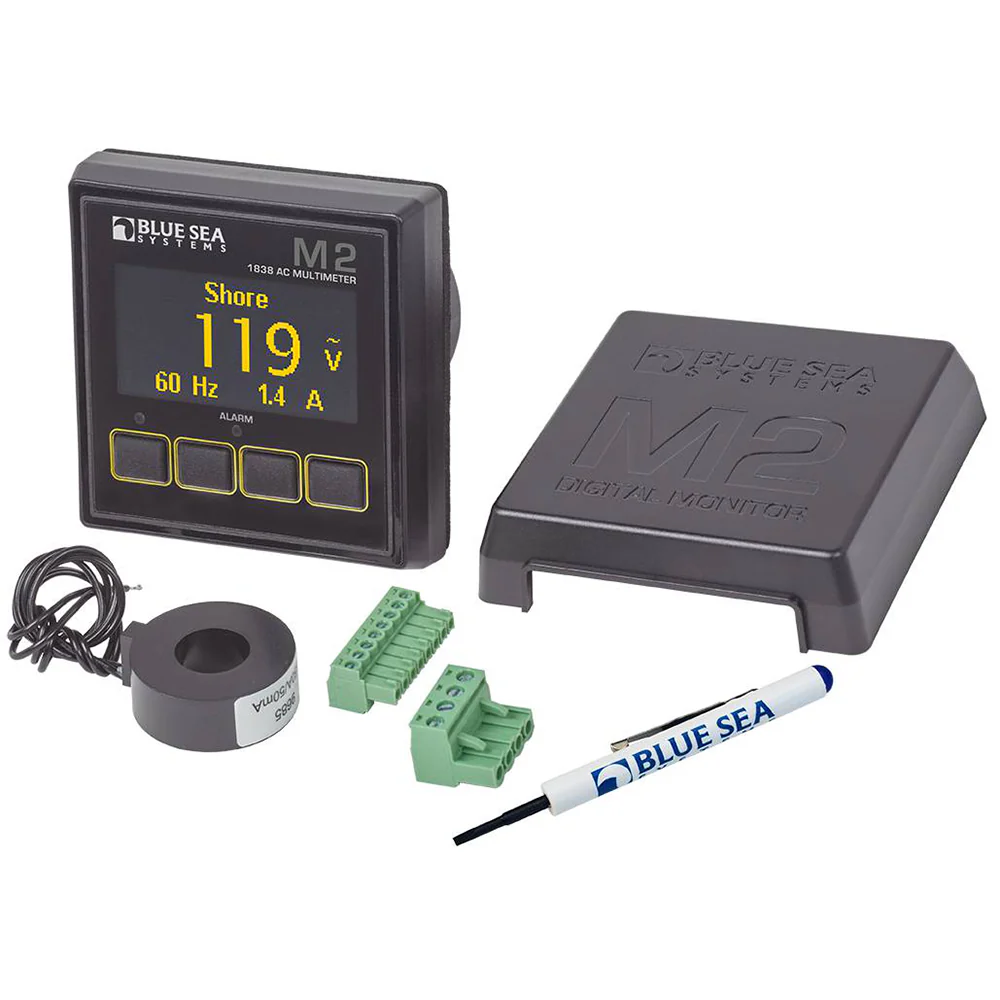

Blue Sea 1838 M2 AC Multimeter [1838]
Blue Sea 1838 M2 AC Multimeter [1838]
Description
Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)
Features:
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 92dB alarm on all models
- Isolated MOSFET relay
Product Specifications
Blue Sea 1838 M2 AC Multimeter [1838] Product Specifications
| Specification | Value |
|---|---|
| Meter | Current, Frequency, Power, Voltage |
| Function | 50 to 250V, up to 300A |
| Resolution | 1 V AC |
| Input Voltage | 7-70V DC |
| Alarms | High/Low Current, High/Low Frequency, High/Low Voltage |
| Current Accuracy | ± 2.0% |
| Voltage Accuracy | ± 2.0% |
| Frequency Range | 40-90 Hz |
| Frequency Resolution | 1 Hz |
| Power Range | 0-45 kW |
| Power Resolution | 10 W (0-9990 W), 0.1 kW (10-45 kW) |
| Maximum Power Consumption | 1.00 W |
| Minimum Power Consumption | 0.3 W |
| Display Size | 55 mm × 28 mm |
| Weight | 4.00 lb (1.81 kg) |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Blue Sea Instructions
Quick Start Installation Guide
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
