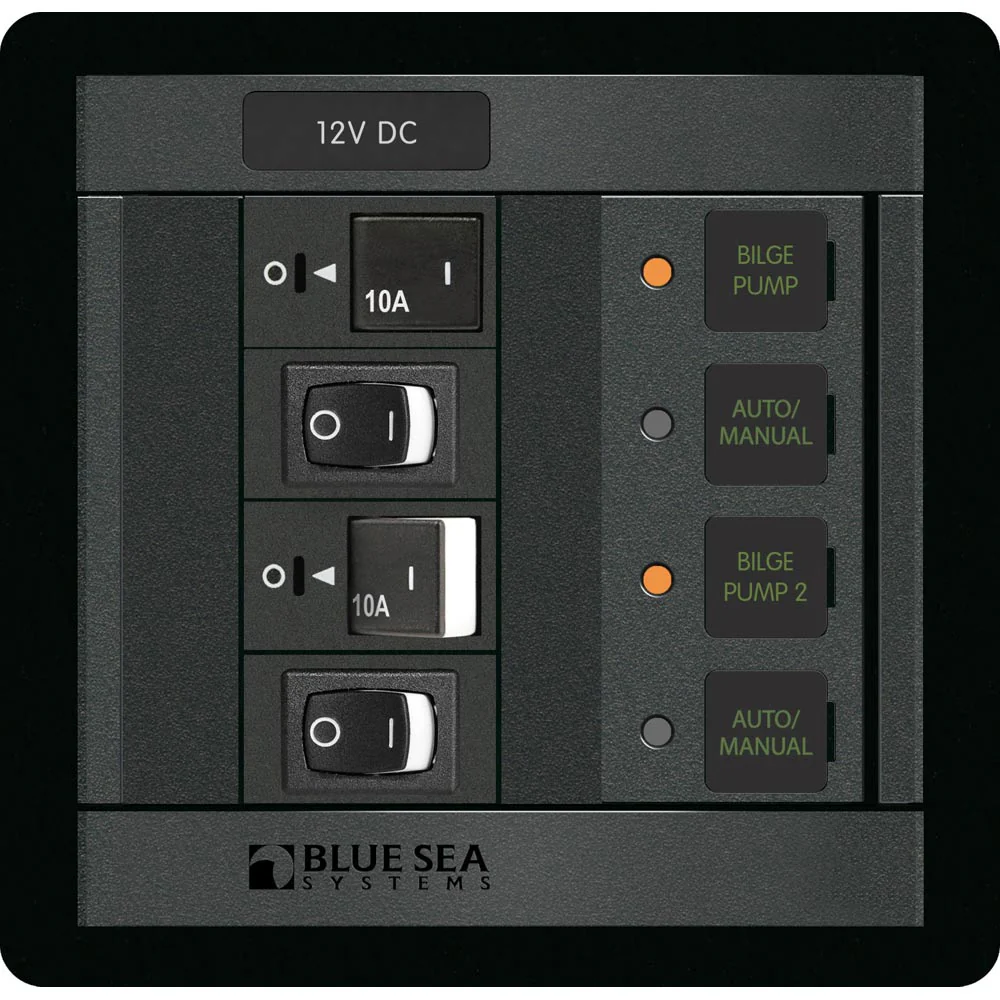

Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]
Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]
Description
Controls two bilge pumps
Restricted-off circuit breakers and manual override switches
Features:
- On-indicating LED indicates power is available at the bilge pump float switch
- Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation
Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
Product Specifications
Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522] Product Specifications
| Specification | Value |
|---|---|
| AC/DC | DC |
| Nominal Voltage | 12V DC |
| Height | 4.75 in (120.65 mm) |
| Width | 4.88 in (123.95 mm) |
| Weight | 0.67 lb (0.3 kg) |
| Box Dimensions | 5 in (H) × 7 in (W) × 9 in (L) |
| Box Weight | 1.3 lb |
| UPC | 632085015220 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Quick Guide (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
