Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]
Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]
Description

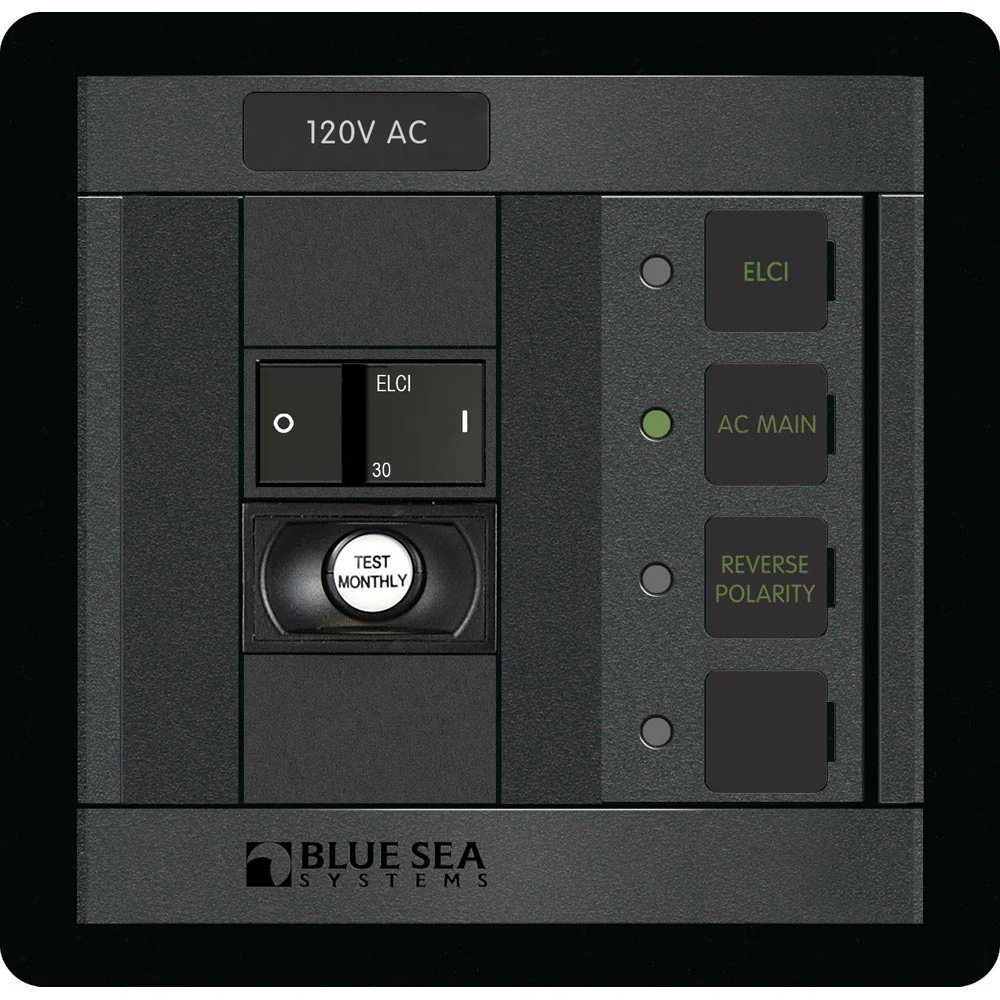

ELCI Main 30A Double Pole Panel
Features:
- One 30A AC ELCI main residual current circuit breaker, leakage trip amperage - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red “Reverse Polarity” LED
- All circuit label positions are backlit
- “ON” indicating LEDs
Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Product Specifications
Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502] Product Specifications
| Specification | Value |
|---|---|
| AC/DC | AC |
| Positions | 1 |
| Nominal Voltage | 120V AC |
| Height | 4.75 in (120.65 mm) |
| Width | 4.88 in (123.95 mm) |
| Depth | 3.00 in (76.2 mm) |
| Weight | 1.10 lb (0.5 kg) |
| Box Dimensions | 6 in (H) × 6 in (W) × 9 in (L) |
| Box Weight | 2.2 lb |
| UPC | 632085015022 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
