Description

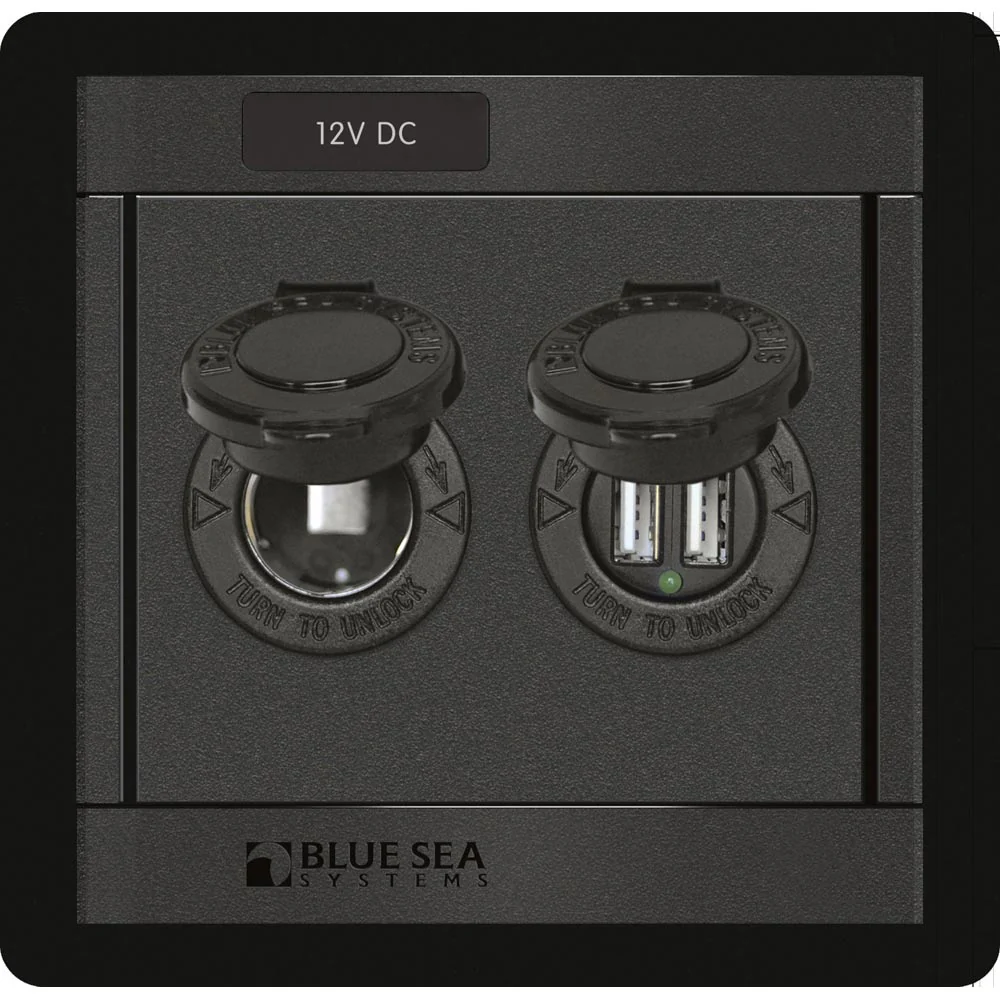

The Socket and Dual USB Charger module integrates one 12V DC socket and one dual USB charger. The dual USB socket will provide 2.1 amps of total output power, which easily charges smartphones and tablets, including Apple iPhone and iPad products. The 12V socket is ideal for charging devices or powering a 12-volt accessory such as a spotlight. The module is available as an individual panel (part number 1478) or as an option in the Custom 360 Panel program.
Features:
- Dust caps keep unwanted material out of charging sockets.
- Manufactured with corrosion-resistant materials
- Nickel-plated copper alloy used for all current-carrying components
- Part of the 360 Panel System
Includes:
(1) - 1011 - 12V Dash Socket
(1) - 1016 - Dual USB Charger Socket
Product Specifications
Blue Sea 1478 360 Panel - 12V DC Socket & Dual USB Charger [1478] Product Specifications
| Specification | Value |
|---|---|
| AC/DC | DC |
| Input Voltage | 12V DC |
| Output Voltage | 5V DC ± 5% |
| Maximum Output Current | 2.1A DC (USB total) / 15A (socket) |
| USB Version | 2.0 |
| Height | 4.75 in (120.65 mm) |
| Width | 4.88 in (123.95 mm) |
| Depth | 1.50 in (38.1 mm) |
| Weight | 0.70 lb (0.32 kg) / 0.67 lb (0.3 kg) |
| Box Dimensions | 6 in (H) × 7 in (W) × 9 in (L) |
| Box Weight | 0.75 lb |
| UPC | 632085014780 |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Manual
360 Panel System Installation Manual
Owner's Manual (pdf)
Product Warranty
Blue Sea Systems Product Warranty
Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.
All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
Product FAQs
N/A
