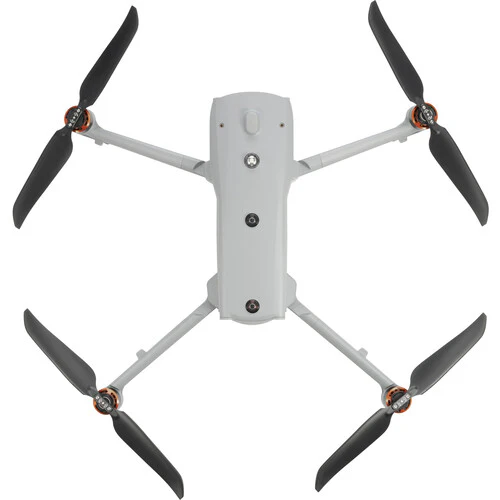

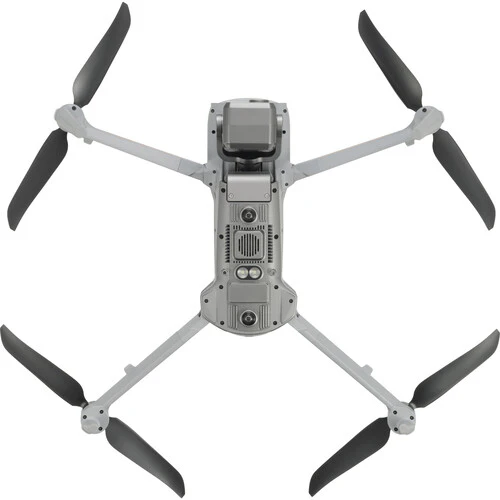

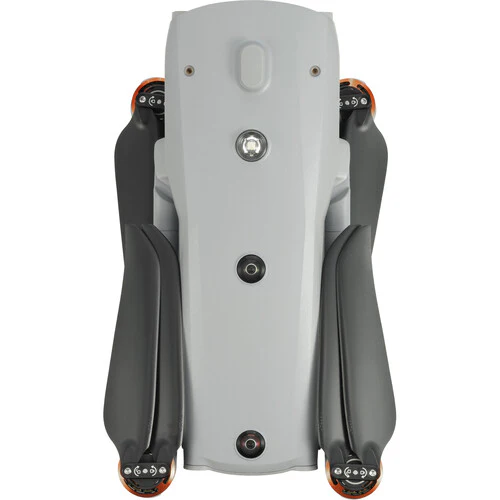

Autel Robotics EVO Max 4T XE Bundle for EVO Nest
Autel Robotics EVO Max 4T XE Bundle for EVO Nest
Description

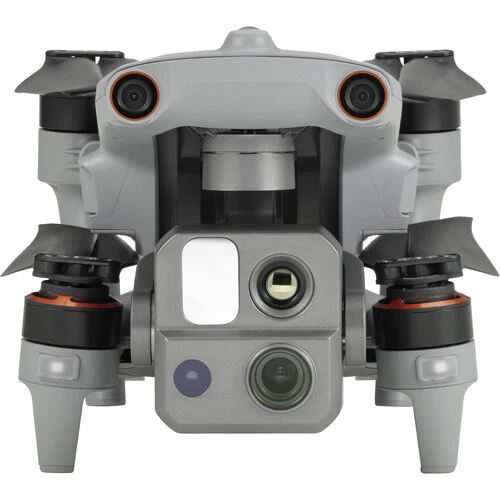

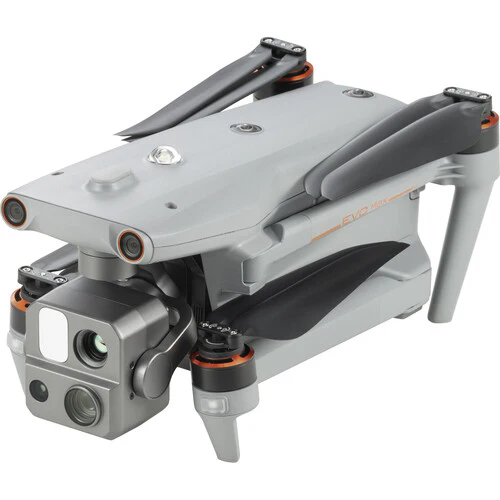

With the included FusionLight multi-sensor gimbal camera and advanced flight features, the EVO Max 4T XE Bundle for EVO Nest from Autel Robotics is an ideal solution for supporting many governmental and private sector missions. Whether it's search and rescue, infrastructure inspection, or land surveying, the EVO Max 4T XE can quickly and efficiently get the job done. It starts with the FusionLight gimbal, which provides zoom and wide-angle 8K image and 4K video capture, along with a thermal imaging camera, and integrated laser rangefinder. To achieve a successful flight in these demanding tasks, the drone also features dual vision systems for 720° obstacle avoidance, enhanced anti-jamming technology, autonomous navigation, and A-Mesh 1.0 for intelligent fleet control. This is coupled with all-weather construction, the SkyLink 3 for 1080p60, 12.4-mile real-time transmission, and a flight time of up to 42 minutes per charge.

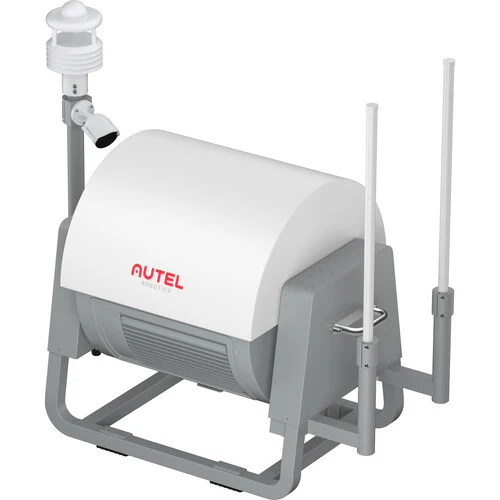

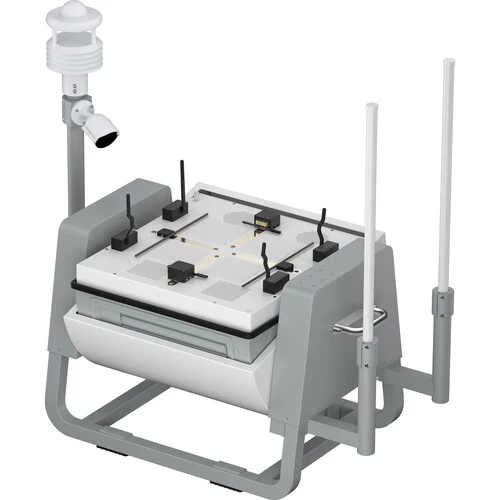

Please note that this version of the EVO Max 4T XE is made for, and requires, the optional EVO Nest.
- Zoom Camera: Up to 8K image and 4K video with 10x optical zoom and a hybrid 160x zoom that can display clear details on targets up to 1.24 miles away
- Wide-Angle Camera: Up to 8K images and 4K video with a wide 85° FOV and low-light capability with Moonlight Algorithm 2.0
- Thermal Camera: Ideal for rescues and inspection with its 640 x 512 resolution footage at 30 fps with 16x zoom and detection range from -4 to 1022° F
- Laser Rangefinder: Can obtain coordinates and altitudes from 16.4' to 0.75 miles away with an approximate accuracy of 3.3'
- Up to 42 minutes of flight time
- Hot-swappable flight battery
- Up to 27 mph wind resistance
- IP43 rain and dust resistance
- Operational temperature support of -3°F to 122°F
- Works with Autel Enterprise app

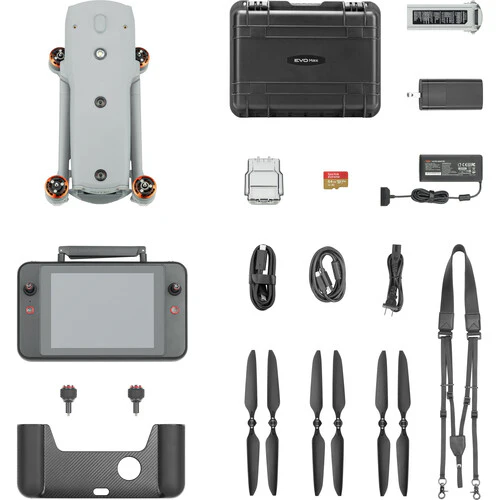

- Autel Robotics EVO Max 4T XE Bundle for EVO Nest
- FusionLight 4T XE Gimbal Camera
- Stand for EVO Nest

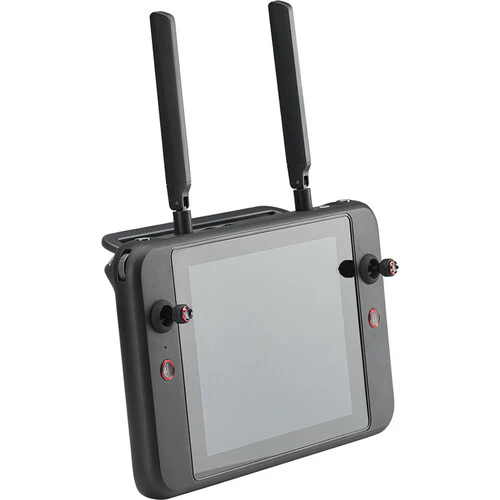

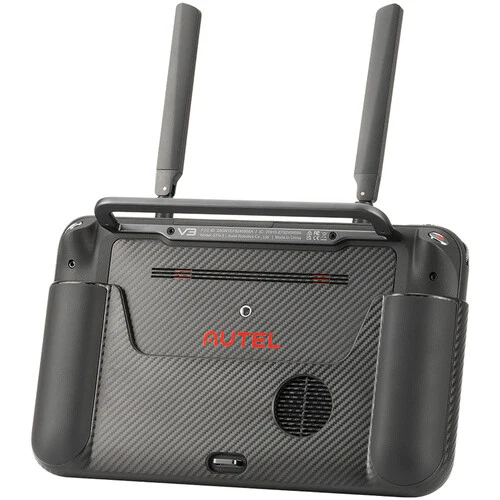

- Smart Controller V3
- Rugged Case
- Pair of Spare Propellers
- Flight Battery
- Battery Charger
- RC Charger
- 64GB SD Card
- Gimbal Cover
- Data Cable
- RC Charging Cable
- Smart Controller Cover
- Pair of Spare Smart Controller Joysticks
- Smart Controller Lanyard
- Limited 1-Year Manufacturer Warranty
Product Specifications
Autel Robotics EVO Max 4T XE Bundle for EVO Nest Product Specifications
| Category | Details |
|---|---|
| Flight Performance | Max Flight Time: 42 minMax Hover Time: 38 minMax Speed: 51.4 mph / 82.8 km/hAscent/Descent: 17.9 mph up / 13.4 mph downWind Resistance: 27 mphMax Altitude: 4 km / 2.5 milesTilt Angle: 35° |
| Aircraft | Type: QuadcopterWeight: 1890 g (takeoff) / 1640 g (with battery)Propellers: 11 inchesOperating Temp: -20 to 50°CGNSS: GPS, GLONASS, BeiDou, GalileoRemote ID: No |
| Camera System | Wide: 48 MP, 1/2" CMOS, 24mm eq., f/2.8Zoom: 48 MP, 64–234mm eq., f/2.8Thermal: VOx sensor, -20°C to 550°C, f/1 |
| Video | Wide: 4K @ 30 fpsZoom: 4000 × 3000 @ 30 fpsThermal: 640 × 512 @ 30 fps |
| Photo | Wide: up to 50.3 MPZoom: up to 48 MP |
| Imaging Features | Digital Zoom: up to 160× (zoom), 16× (thermal)ISO: up to 64,000 (video auto)Shutter: 1/8000 sec – 8 secFocus Distance: 1.5 m / 2 m / 2.2 m |
| Sensing System | Omnidirectional + radar enhancementDetection Range: 0.2 m – 31 m (varies by direction) |
| Remote Controller | Display: 7.9" touchscreen (2048×1536)Range: up to 15 km / 9.3 milesFrequency: 2.4 / 5.1 / 5.8 GHz |
| Battery | Type: LiPo 4SCapacity: 8070 mAh / 120 WhVoltage: 14.88 V |
| Storage | Internal: 128 GBExternal: microSD / microSDXC |
| Dimensions | Unfolded: 562 × 147 × 651 mmFolded: 257 × 131 × 145 mm |
Product Manual
N/A
Product Warranty
Autel Robotics Warranty
| After-sales Type | Detail | The following conditions do not meet the return and exchange conditions |
|---|---|---|
|
Retreat |
Within 7 calendar days of product purchase: 1. The product packaging, accessories, gifts, manuals are complete, and there is no artificial damage, and it is not activated for use, which does not affect the second sale; 2. After the product is activated, there is a performance failure that is not artificially damaged. |
×The request for return is made more than 7 (15) calendar days from the date of receipt; ×Returned goods are incomplete, the outer packaging, accessories, gifts, and manuals are incomplete, or the appearance is artificially damaged; ×When returning the goods, it is impossible to provide legal proof of purchase or receipts, or to forge or alter the receipts; ×Product quality problems caused by collisions and burns that are not caused by quality problems of the product itself, as well as product quality problems caused by unauthorized modification, foreign objects (water, oil, sand, etc.), improper installation, use and operation not in accordance with the instructions in the manual; ×Torn or altered labels, machine serial numbers, waterproof marks, anti-counterfeit marks, etc.; ×Products damaged by force caused by unavoidable factors, such as fire, flood, lightning, traffic accidents, etc.; ×After contacting Autel Robotics customer service to confirm the return service, the corresponding item was not sent within 7 days. ×Other circumstances described in the policy. |
|
Change |
Within 15 calendar days of product purchase: 1. There is a performance failure that is not artificially damaged, and the machine is disassembled without permission; 2. During transportation, the product was damaged, and the transportation company provided proof of damage. |
|
|
Build |
1. In order to be covered by the warranty, the performance failure must be caused by a non-human error, and the purchased aircraft must be within the warranty period; 2. Any unauthorized dissassembly or modification of the aircraft with outside vendor parts will void the warranty; 3. Please provide valid proof of purchase, such as a bill or receipt. *Note (a) Free maintenance: the repaired parts inherit the warranty period of the whole machine or reset for 90 days, whichever is longer;
(b) Paid repairs: The warranty period for repaired parts will be recalculated;
(c) Selective maintenance, water ingress maintenance: the whole machine will be out of warranty;
(d) Discounted product replacement: Warranty period will be recalculated. |
×A collision or burn accident occurred due to man-made non-product quality problems; ×Damage caused by unauthorized modification, disassembly, or opening of the shell under the guidance of an unofficial manual; ×Damage or water ingress caused by incorrect installation, use and operation not in accordance with the instructions of the manual; ×In the absence of official instructions, the customer repairs the damage caused by the assembly by himself; ×Damage caused by circuit modification guided by unofficial manuals, or improper matching and use of battery packs and chargers; ×All damages caused by flying and shooting that are not operated in accordance with the product manual; ×Damage caused by manipulation in harsh environments, such as strong wind, rain, sand, etc.; ×Damage caused by manipulation in a complex electromagnetic environment or a strong interference source environment, such as mining areas, transmission towers, high-voltage lines, substations, etc.; ×Damage caused by manipulation in the case of mutual interference with other wireless devices, such as transmitter, image transmission signal, WiFi signal interference, etc.; ×Damage caused by take-off when the weight exceeds the safe take-off weight; ×Damage caused by forced flight when parts are aged or damaged; ×Damage caused by reliability or compatibility issues when used simultaneously with third-party components not certified by Autel Robotics; ×Damage caused by insufficient discharge when the battery is insufficient, or the use of a battery with quality problems; ×The machine serial number, factory label and other signs are torn or altered; ×After contacting Autel Robotics customer service to confirm the warranty service, the corresponding item was not sent within 7 calendar days. |
Aircraft Parts Warranty Period (Months)
| Product | Main Parts |
Warranty Period Months/In US |
Warranty Period Months/In EU |
Warranty Period Months/In APEC/SA/MENA |
|---|---|---|---|---|
| EVO Nano Series/EVO Lite Series/EVO II/EVO II PRO | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Dragonfish Lite/Dragonfish Standard/Dragonfish Pro | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera(Z2/T3/T3H/M1/L20T/L50T) | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Base Station | 6 | 12 | 6 | |
| Base Station Turntable | 6 | 12 | 6 | |
| Base Station Tripod | 6 | 12 | 6 | |
| Base Station Charger | 6 | 12 | 6 | |
| EVO II Enterprise/EVO II RTK Series/EVO II Dual EVO Max Series EVO Lite Enterprise Series Autel Alpha |
Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers) |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Spotlight | 6 |
12 | 6 | |
| RTK Module | 6 | 12 | 6 | |
| Strobe | 6 | 12 | 6 | |
| Speaker | 6 | 12 | 6 | |
| Live Deck | Live Deck | 6 | 12 | 6 |
| EVO NEST | EVO NEST | 12 | 24 | 12 |
Product FAQs
N/A
Original: $10,676.29
-65%$10,676.29
$3,736.70Product Information
